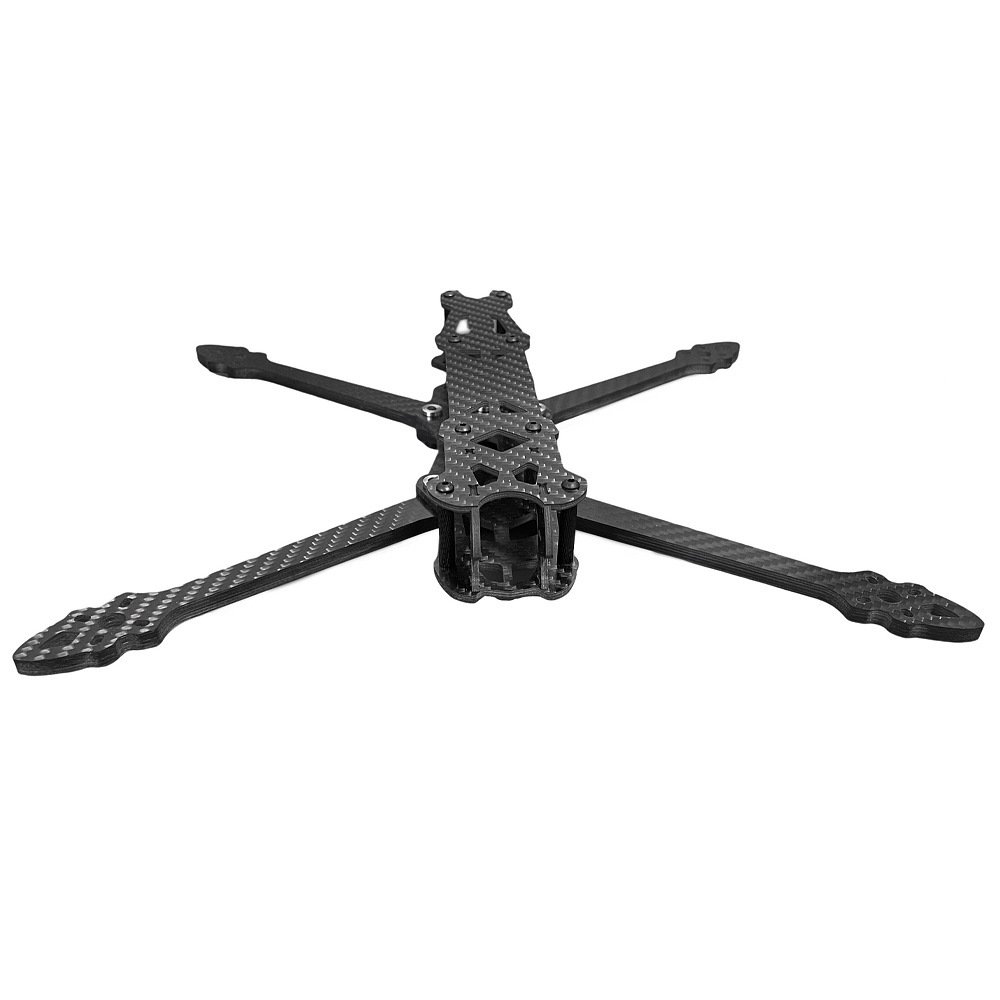

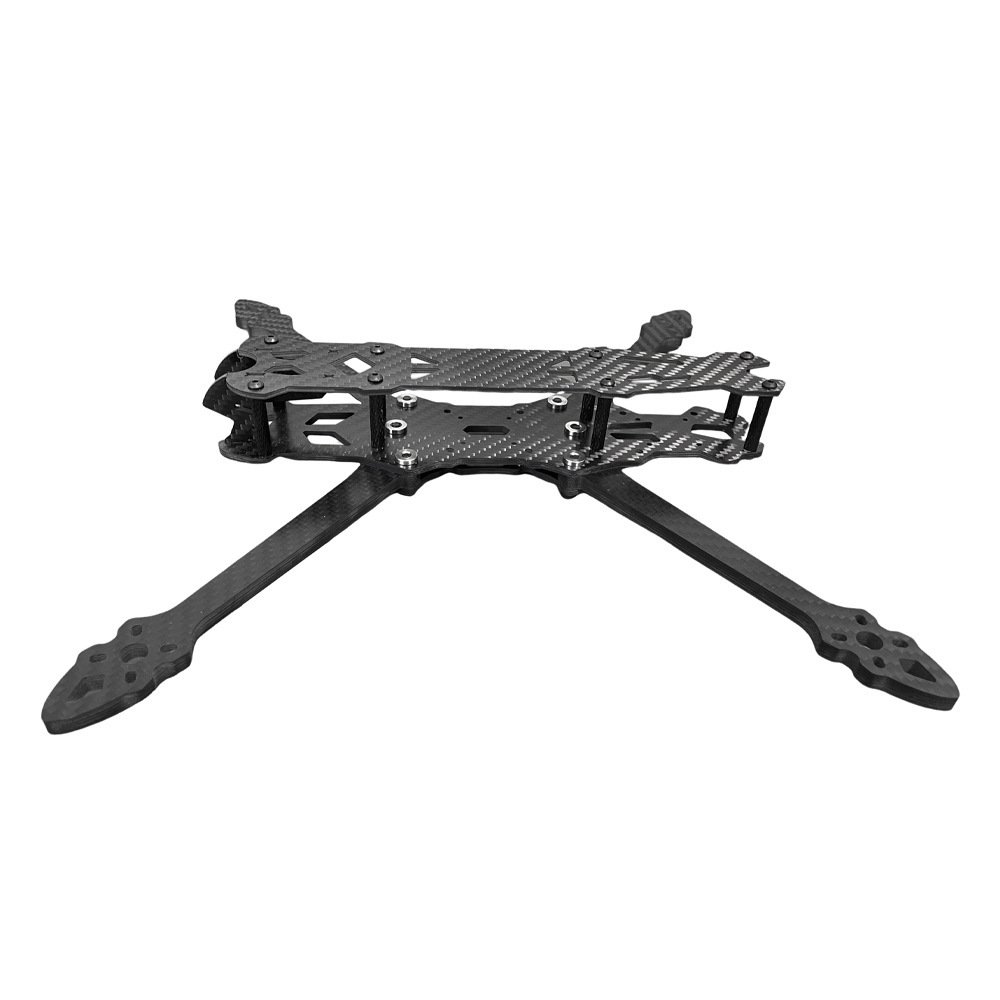

Carbon Fiber Drone Airframe
Carbon Fiber Drone Airframe Product Description
A carbon fiber drone airframe is no longer a passive carrier; it is a technical integration actively enhancing the performance of the aircraft. As the core load-bearing structure of the entire vehicle, it is manufactured from high-strength carbon fiber prepreg through specific ply design and precise hot-press forming processes.
- Material Core: The main airframe material consists of high-strength, high-modulus carbon fiber woven fabric or unidirectional prepreg impregnated with epoxy resin.
- Modular Design Philosophy: Mainstream products typically adopt a modular architecture (e.g., center plate separated from arms design), enabling rapid assembly, component replacement, and flexible upgrades. Core components are often CNC-machined from solid carbon fiber panels, ensuring absolute precision of interfaces and structural integrity.
- Integrated Optimization:
- Precision Mounting Points: Pre-embedded dedicated locking hardware or finely machined structural points ensure vibration-free, rigid connections for core components like flight controllers, motors, ESCs (Electronic Speed Controllers), and gimbal cameras.
- Cable Management Channels: Integrated wire routing channels prevent cable entanglement and damage, enhancing overall neatness and safety.
- Thermal Management: Combines graphene composite heat dissipation layers or optimized airflow guidance structures to enhance cooling capabilities for the power system.
- Protective Structures: Features like propeller guards and shock-absorbing landing gear minimize the risk of damage from accidental impacts.
- Surface Finishing: High-precision sandblasting or specialized surface coatings improve grip feel and enhance resistance to scratches and UV degradation.
CARBON FIBER DRONE AIRFRAME TECHNICAL DATASHEET
| Parameter | Specification |
|---|---|
| Material Composition | T700S/T800H Carbon Fiber + Aerospace-grade Epoxy Resin |
| Density | 1.55-1.65 g/cm³ |
| Tensile Strength | ≥ 3,500 MPa |
| Tensile Modulus | ≥ 230 GPa |
| Flexural Strength | ≥ 1,800 MPa |
| Layer Configuration | Quasi-Isotropic Laminates [0°/45°/90°/-45°] Stacking |
| Max. Operating Temp. | 180°C (356°F) |
| Thermal Expansion Coeff. | 0.6 × 10<sup>-6</sup> |
| /K (Longitudinal) | |
| Vibration Damping Ratio | > 0.025 (5× higher than aluminum) |
| Surface Hardness | 8H (Pencil Hardness Test) |
| UV Resistance | Class A (ISO 4892-3 Certified) |
| Chemical Resistance | Resists Aviation Fuels, Weak Acids & Alkalis |
| Water Absorption | < 0.8% (ASTM D570) |
| EMI Shielding | > 70 dB (200 MHz-8 GHz Range) |
Note: The values listed in the table are approximate and may vary depending on the specific product model and manufacturer. It is recommended to consult the product datasheet for accurate and detailed specifications.
Carbon Fiber Drone Airframe Application
- Professional Surveying & Geospatial Modeling:
- Needs: Flight stability is foundational for centimeter-level accuracy; Endurance is crucial for long missions.
- Value: Stiffness and low vibration provide an absolutely stable platform for core payloads (e.g., LiDAR, high-accuracy mapping cameras); Lightweighting extends operational range and efficiency.
- High-Efficiency Agricultural Spraying:
- Needs: High payload capacity, chemical resistance, lightweighting to maximize area covered per battery.
- Value: Stable platform for large chemical tanks; Lightweight structure extends sortie distance, drastically improving coverage rate; Superior chemical resistance ensures long-term reliability in corrosive agrochemical spray environments.
- Precision Inspection of Power & Energy Infrastructure:
- Needs: EMI resistance in complex electromagnetic environments, precise hovering/navigation, ease of transport/deployment, high safety.
- Value: Carbon fiber’s non-magnetic nature prevents interference with sensors. Stiffness and vibration damping ensure precise positioning near structures in high winds or turbulent wake. Lightweighting eases transport and deployment in challenging terrain (mountains, towers).
- Firefighting, Rescue & Disaster Assessment:
- Needs: Impact resistance, rapid deployability, tolerance to smoke/harsh weather, thermal protection (proximity).
- Value: High strength enhances passive protection against falling debris. Lightweight enables rapid response. Stability supports operation in strong air currents. Specialty high-temp resins can improve tolerance near fire fronts.
- Professional Cinematography & Broadcast-Level Aerial Videography:
- Needs: Vibration suppression dictates image quality; Responsiveness affects piloting feel.
- Value: Low-vibration platform complements high-end gimbals (e.g., Zenmuse X series), enabling broadcast-quality smooth/stable footage. Rigid structure enhances flight responsiveness and stability.
- High-End FPV Racing Drones:
- Needs: Extreme lightweighting, ultra-high stiffness, crash resilience (impacts inevitable).
- Value: Millisecond response and extreme thrust-to-weight ratio demand lightweighting and stiffness for lightning agility. Exceptional crash resilience ensures survival in “aggressive” flying.
- Industrial Asset Inspection (Oil & Gas, Petrochemical, Bridges):
- Needs: Heat tolerance (near hot sources), chemical resistance (industrial atmosphere/oil/gas), strength for sensor payloads.
- Value: Specialty formulations adapt to limited temperature variations. Stable platform enables precise defect detection with advanced sensors (e.g., thermal imagers, laser thickness gauges).
- Frontline Border Patrol & Security Surveillance:
- Needs: Long-endurance covert ops, all-weather resilience, high reliability.
- Value: Lightweight enables extended patrols for sustained situational awareness. Rigidity and damping ensure clear/stable images from surveillance payloads. Non-metallic nature aids stealth.
Carbon Fiber Drone Airframe Advantages
- Extreme Lightweighting: Grams are Gold
- Key Parameter: Density ≈ 1.6 g/cm³, significantly lower than aluminum alloy (2.7 g/cm³) or magnesium alloy (1.8 g/cm³).
- Practical Value: Dramatically reduces empty weight, freeing up capacity for larger batteries, higher-precision sensors, and more diverse payloads. Significantly increases flight time (20%-40% with the same battery capacity), crucial for long-endurance applications like mapping and inspection.
- Exceptional Strength and Stiffness: The Aerial Skeleton
- Key Parameters: Tensile strength > 3500 MPa (over 8x that of high-strength steel); Tensile modulus (resistance to deformation) often > 200 GPa.
- Practical Value:
- Provides unparalleled structural stability, eliminating carbon fiber drone airframe deformation during high-speed maneuvers or in turbulent conditions. Creates an absolutely stable platform for camera gimbals, ensuring imaging quality.
- Raises the carbon fiber drone airframe’s natural frequency (critical resonant frequency), effectively suppressing harmful vibrations, protecting delicate flight control systems and sensors, and significantly extending component lifespan.
- Superior Impact Resistance and Fatigue Performance: Consistent Stability
- Practical Value: Carbon fiber composites exhibit excellent energy absorption and dispersion capabilities, granting them high impact resistance. They effectively protect internal components during non-catastrophic crashes. Superior fatigue resistance compared to metals minimizes cumulative micro-damage from high-frequency vibrations, offering clear advantages in stability and reliability for long-term, high-frequency flight operations.
- Excellent Weathering and Chemical Stability: Thriving in Harsh Environments
- Practical Value: Exceptional resistance to corrosion from moisture, salt spray, acid rain, and organic solvents. Particularly suitable for demanding environments like agricultural spraying (agrochemical exposure), marine monitoring, and industrial inspections. Maintains stable performance over the long term.
- High Damping Characteristics: The Core of Silent Hover
- Practical Value: The material inherently possesses better vibration damping properties (ability to suppress vibrations) than metals. Synergizing with structural design, this efficiently attenuates vibrations transmitted from the motors and propellers, creating a smoother flight platform. Enhances attitude control precision and imaging quality.
- Superior Aerodynamic Performance (Design Enhanced)
- Practical Value: Complex curved carbon fiber parts (e.g., streamlined arm fairings) have significantly lower aerodynamic drag than angular metal parts. Optimized aerodynamic profiles improve flight efficiency, reducing energy consumption.
- Long-Term Economic Value: Value Realization
- Practical Value: Despite a potentially higher initial cost than alternatives (e.g., injection-molded plastics, low-end glass fiber composites), the exceptional lifespan, minimal maintenance requirements (corrosion resistance), damage resistance, and resultant improvements in flight efficiency and mission success rate mean carbon fiber drone airframe demonstrate significant advantages in Total Cost of Ownership (TCO) over their operational lifetime.
Core Technical Barriers
- Material Selection & Synergy:
- Fiber Selection: Uses high-modulus carbon fibers like T300/T700/T800 or M-series as the primary reinforcement.
- Resin System: Primarily high-performance epoxy resins. Precise control of hardener ratios and curing reactions is crucial to ensure complete curing and balanced internal stresses.
- Interface Treatment: Fiber surface treatment (sizing) is critical, directly impacting fiber-resin interfacial bond strength (load transfer efficiency). Advanced sizing agents and plasma treatments enhance interfacial adhesion.
- Ply Structure Mechanics Design:
- Interlaminar strength relies on numerical simulation (Finite Element Analysis – FEA) to create virtual prototypes.
- Simulations analyze stress distribution, deformation, and modal vibration under various load conditions. Optimizes fiber orientation ply sequences in critical areas to achieve the best balance of stiffness, strength, and torsional resistance. Design often combines 0°/90° and ±45° angles.
- Precision Hot-Press Molding Process:
- Layers of carbon fiber prepreg are subjected to high temperature and pressure within precision metal molds.
- Precise control of the temperature profile and pressure cycle is paramount for resin flow/filling, curing kinetics, and minimizing void formation.
- Heat activates the epoxy resin, forming a 3D cross-linked network (“molecular welding”), resulting in a high-strength, monolithic structural part.
- Post-Processing Enhancement Techniques:
- Autoclave Processing: Often used for high-end carbon fiber drone airframe. Applies uniform high temperature and high-pressure gas (under vacuum), significantly increasing composite density (compressing internal micro-voids), fiber wet-out quality, and curing uniformity. Overall performance increases >20%.
- Precision CNC Machining: Carbon fiber composites are hard and anisotropic. Requires specialized wear-resistant carbide or diamond-coated cutting tools with high-speed coolant machining centers to prevent edge chipping and achieve micron-level dimensional accuracy.
- Non-Destructive Testing (NDT): Finished parts undergo inspection using ultrasonic, or X-ray equipment to detect internal defects, ensuring safety and reliability.
- Surface Protection Coatings: UV-resistant and abrasion-resistant coatings enhance product durability and aesthetics.
FAQ
Our Advantages
Q: Advantages vs. nylon/fiberglass frames?
A: 300%+ higher stiffness (torsional rigidity at same thickness) + 40%-60% weight reduction (extends flight time by 15%-25%).Q: Standard carbon plate thicknesses?
A:Arms/center plates: 1.5-2.0mm (racing) / 3.0-4.0mm (heavy-lift industrial)Protection hoops/brackets: 0.8-1.2mm (ultralight builds）- Optimal laminate design?
A: 0°/90° ortho plies (bending resistance) + ±45° plies (torsional strength). Center plates require 8+ layers. - Why taper drone arms?
A: Reduces rotational inertia by 30%, improving motor response. - Weight-reduction hole design?
A: Diameter ≤ 1/3 plate width, edge distance ≥ 5× hole diameter (prevents crack propagation).
Complete set of tooling
Our carbon fiber products are manufactured using a variety of molds to ensure precision and consistency in the final product. We have multiple sets of molds designed to accommodate different shapes, sizes, and specifications of carbon fiber components.
High production capacity
Our carbon fiber products are manufactured with high production capacity, ensuring efficient and cost-effective mass production. We have invested in advanced equipment and technology to streamline the production process and maximize output.
High product precision
Our carbon fiber components are designed and engineered to meet the exacting requirements of various industries and applications. We utilize computer-aided design (CAD) and computer-aided manufacturing (CAM) technologies to ensure precise measurements and cuts during the production process.
Catering to various customized processing needs
Our carbon fiber products are versatile and can cater to a wide range of customized processing needs. Whether it is for aerospace, automotive, sports equipment, or any other industry, our carbon fiber can be tailored to meet specific requirements.
