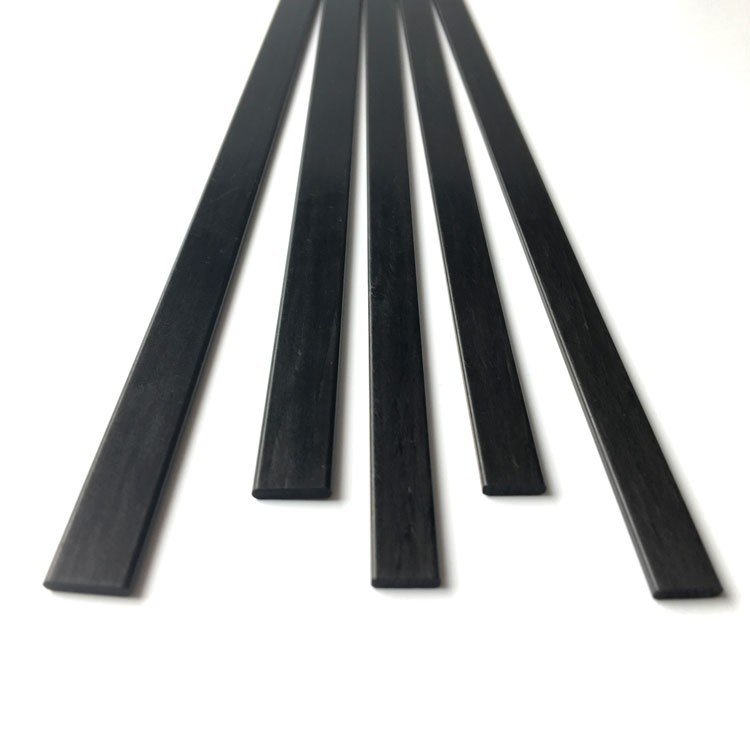

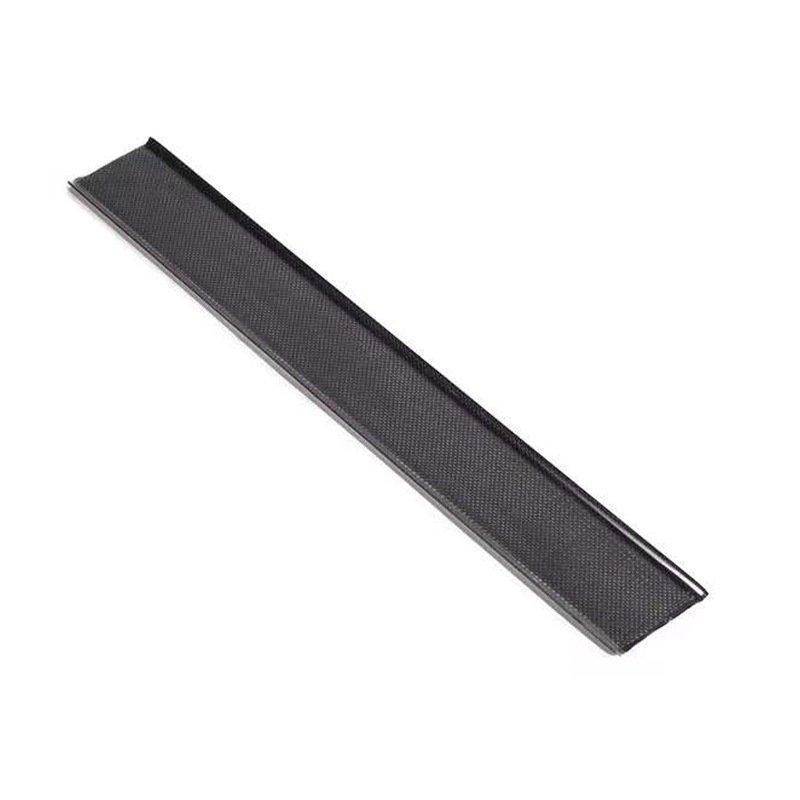

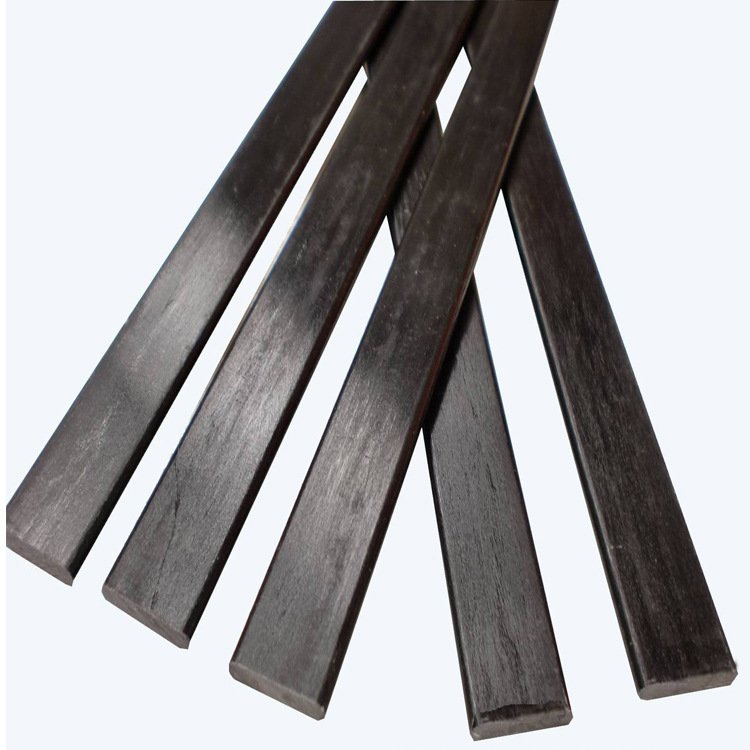

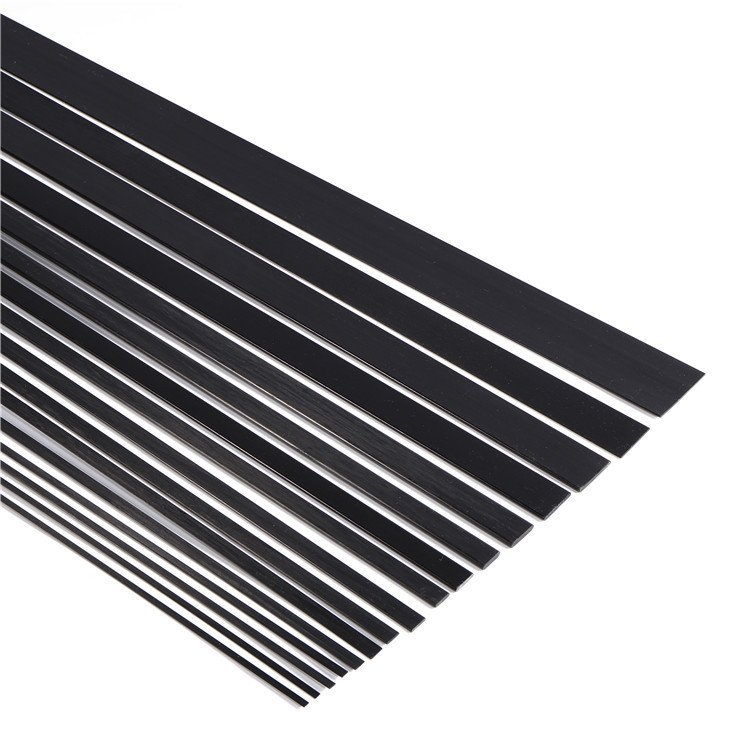

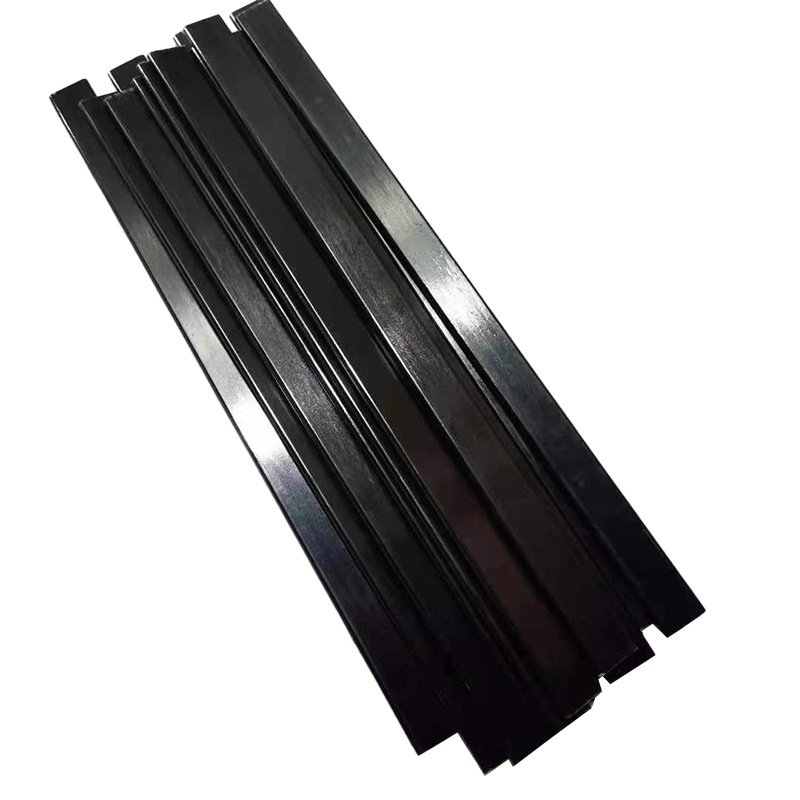

Carbon Fiber Flat Bar
Carbon Fiber Flat Bar Product Description
The Carbon Fiber Flat Bar, as the name suggests, is a linear structural component formed using continuous carbon fiber as the primary reinforcement, solidified into a specific rectangular cross-section through precisely controlled resin impregnation and molding processes (primarily pultrusion or molding).
Core Composition:
- Reinforcement: The core raw material is Polyacrylonitrile (PAN)-based carbon fiber (tow), treated through high-temperature carbonization. High-strength (above T300 grade) or high-modulus-high-strength (e.g., M40J, T800 and above grades) carbon fibers are predominantly used for high-end applications.
- Matrix Resin: Epoxy resin is the most common choice, offering excellent comprehensive mechanical properties, bonding capability, and weather resistance; thermoplastic resins (like PEEK, PEKK) are gaining traction in specific fields due to their toughness, recyclability, and potential for welding.
- Structural Design: Most are unidirectional (0° ply orientation) flat bars, offering optimal performance in the primary load-bearing direction (lengthwise); some incorporate ±45° thin layers or surface fabrics to enhance transverse performance and surface integrity.
Manufacturing Process (Primarily Pultrusion):
- Resin Impregnation: Carbon fiber tow or fabric is precisely arranged and impregnated with a specific resin formulation.
- Preforming and Forming: The fiber-resin mixture is preliminarily shaped through a preforming die and then enters a heated steel main die.
- Curing and Shaping: Under precisely controlled temperature, pressure, and pulling speed, the resin undergoes thermosetting cross-linking reactions, forming a dense, highly aligned solid flat bar.
- Post-processing: Cut to specified lengths, potentially involving surface treatment (sanding, coating), drilling, or machining.
Typical Specifications:
- Cross-sectional Dimensions: Width ranges from a few millimeters to 200 mm; thickness typically ranges from 1 mm to 20 mm, customizable as needed.
- Length: Standard supply is usually 1m, 2m, 3m, 6m; special lengths or continuous supply are available per customer requirements.
- Surface Finish: Smooth, sanded, or custom treated.
Carbon Fiber Flat Bar Data Sheet
| Property | Specification |
|---|---|
| Material Composition | 100% Carbon Fiber (T300/T700) + Epoxy Resin |
| Surface Finish | Glossy / Matte / Sanded / UV Coating |
| Weave Type | 3K Twill / 3K Plain / Unidirectional |
| Thickness Range | 0.5mm – 5mm |
| Width Range | 5mm – 100mm |
| Length | 1000mm / Customizable |
| Tensile Strength | ≥ 600MPa |
| Elastic Modulus | ≥ 60GPa |
| Specific Gravity | Approx. 1.5g/cm³ |
| Density | 1.5 – 1.6g/cm³ |
| Working Temperature | -40℃ to 120℃ |
| Electrical Conductivity | Conductive |
| Corrosion Resistance | Excellent |
| Manufacturing Process | Molding / Pultrusion / CNC Cutting |
| Applications | Aerospace, Drones, Models, Structural Parts |
Note: The values listed in the table are approximate and may vary depending on the specific product model and manufacturer. It is recommended to consult the product datasheet for accurate and detailed specifications.
Carbon Fiber Flat Bar Application
Leveraging their exceptional specific strength, specific stiffness, and designability, Carbon Fiber Flat Bars find wide application in numerous fields demanding stringent requirements for weight, performance, and reliability:
Aerospace:
- Secondary Structures: Guide rails, brackets, operating linkages, spar web connection points for light aircraft doors/wings.
- Interior Structural Support: Seat tracks, baggage compartment frames, partition skeletons.
- UAV Structures: Wing spars, fuselage stiffeners, landing gear support beams. Weight reduction directly extends flight time and payload capacity.
New Energy Vehicles & Rail Transit:
- EV Body & Chassis: A/B pillar reinforcements, sill beams, battery pack casing frames, and internal crossbeams/stringers (replacing steel/aluminum). Significantly reduces unsprung mass.
- Rail Transit: Interior support frames, equipment brackets, connectors for subway and high-speed rail carriages. Lightweighting reduces operational energy consumption.
Wind Energy:
- Wind Turbine Blade Internal Structures: A key component often used in blade root connection sections, leading/trailing edge reinforcements, and spar web support beams. Their high strength and fatigue resistance are crucial for ensuring blade stability and long operational life (>25 years) under extreme wind loads.
Building Reinforcement & Facade Structures:
- Concrete Structure Reinforcement: Serving as the linear form of CFRP plates, bonded via structural adhesive to beam bottoms, slab undersides, or columns for efficient flexural and shear strengthening.
- Building Facade Mullion Systems: Used in highly transparent glass curtain wall systems, replacing traditional aluminum profiles. Meets load-bearing requirements while drastically reducing weight (< half of aluminum) and enhancing visual transparency.
Industrial Equipment & Robotics:
- High-end Machinery: Supports for semiconductor equipment, frames for precision measurement instruments, bed support structures for medical devices.
- Robot Arms: As connecting arms between joints or truss elements. Low inertia enables high-speed motion performance and precise control.
Sports & Leisure / Medical Rehabilitation:
- High-performance Sports Equipment: Oar shafts for racing shells, reinforcement cores for skis/snowboards, reinforcement strips for bicycle frames, structural elements for kayaks/canoes.
- Prosthetics/Orthotics: Used to fabricate lightweight yet robust braces and support rod structures.
Carbon Fiber Flat Bar Advantages
Compared to traditional metal flat bars (steel, aluminum), the competitiveness of Carbon Fiber Flat Bars stems from their unique properties:
Exceptional Lightweighting:
- Density is only about 1.6 g/cm³, roughly 1/5th that of steel (~7.8 g/cm³) and 3/5th that of aluminum (~2.7 g/cm³).
- Weight can be reduced by 60%-70% or more at equivalent strength; weight reduced by 40%-50% or more at equivalent stiffness. Lightweighting is the primary factor in energy saving and performance enhancement.
Outstanding Specific Strength & Specific Stiffness:
- Tensile strength along the fiber direction can reach 2000-3000 MPa (comparable to high-grade alloy steel), and tensile modulus (stiffness) can exceed 200 GPa (far superior to aluminum and most steels).
- Aerospace-grade carbon fiber flat bar achieve specific strength (strength/density) over 5 times that of common high-strength alloy steels, and specific modulus (modulus/density) 2-3 times higher.
Superior Fatigue Resistance:
- Although carbon fiber is brittle, the composite structure (where fibers bear primary loads and the resin matrix transfers stress and hinders crack propagation) exhibits a fatigue limit far exceeding that of metals.
- Particularly suitable for structural parts subjected to cyclic loading (e.g., wind turbine blades, vehicle axle connectors), significantly extending service life.
Excellent Corrosion & Chemical Resistance:
- Carbon fiber is inherently inert, and epoxy resin possesses excellent chemical corrosion resistance.
- Resistant to acids, alkalis, salt spray; no electrochemical corrosion issues. Performs exceptionally well in marine environments and chemical settings, drastically reducing maintenance costs.
Superior Dimensional Stability & Low Coefficient of Thermal Expansion (CTE):
- Along the fiber direction, CTE can be near zero or very low (0.5 – 2.0 ×10⁻⁶/°C). This provides dimensional stability vastly superior to metals in environments with extreme temperature fluctuations (e.g., space equipment, high-precision instruments).
Electromagnetic Transparency:
- Transparent to electromagnetic waves, not affecting signal transmission. This is a natural advantage near radomes or electromagnetic equipment.
High Designability:
- Mechanical properties (strength, stiffness, toughness) can be precisely “tailored” by adjusting fiber type, ply orientation, resin system, cross-sectional shape, and dimensions to meet specific load conditions and performance goals. This is difficult to achieve with isotropic metals.
Technical Depth: The Pursuit of Excellence in Carbon Fiber Flat Bars
Composite Materials & Structural Science:
- Synergy & Anisotropy: Performance hinges on perfect collaboration at the fiber-resin interface. Unidirectional flat bars exhibit strong anisotropy: outstanding performance longitudinally, relatively lower performance in width/thickness directions (governed by resin and minimal transverse fibers/fabric).
- Interlaminar Shear Strength (ILSS): A potential weak point under transverse loading for flat sections. Relies on resin toughness, fiber-resin interfacial bond strength, plus low porosity and good impregnation from manufacturing. Interface modification (e.g., optimized sizing) is critical.
- Residual Stress Control: Shrinkage during resin cure and differences in CTE generate residual stress, affecting dimensional accuracy and long-term fatigue performance. Optimized curing processes (temperature profile, pressure control) are key technical indicators.
High-Performance Manufacturing – Precision Pultrusion:
- Impregnation System: Precise control of resin bath temperature and viscosity ensures thorough, uniform carbon fiber tow saturation, minimizing dry spots and voids.
- Precise Mold Design: Mold geometric accuracy, surface finish, and temperature uniformity directly impact product dimensional tolerances and surface quality. Die entrance design must ensure smooth fiber entry without abrasion damage.
- Process Control Parameters: Curing temperature (zone heating), pressure (constraint force from mold walls on the profile), and pulling speed require highly coordinated matching. Excessively high pull speed may cause incomplete cure (“undercure”); too low temperature/insufficient time results in low cure degree.
- Cure Kinetics & Nucleation: The curing reaction of thermoset resins (especially epoxy) is exothermic; the influence of reaction heat must be considered to avoid local overheating and scorching.
Advanced Joining Technologies:
- Adhesive Bonding Dominance: Primary connection method between carbon fiber flat bar and structures/other components relies on structural adhesives (e.g., high-strength epoxy, modified acrylic adhesives). Surface preparation (sanding, cleaning, coupling agent application) is crucial for joint reliability.
- Hybrid Joining: In extremely high-load areas, “adhesive bonding + mechanical fastening (e.g., Hi-Lites)” is often employed. Design and processing must account for the mismatched CTEs of metal and composites.
- Co-curing/Secondary Bonding: In advanced structures, flat bars can be directly integrated during the manufacturing of shells or complex components via co-curing or secondary bonding of pre-cured elements, achieving higher structural integrity.
Stringent Quality Control & Inspection Regime:
- Raw Material Inspection: Carbon fiber linear density, strength/modulus; resin viscosity, gel time, etc.
- In-process Monitoring: Pulling force (monitoring tension), temperature, speed, die pressure, etc.
- Finished Product Non-Destructive Testing (NDT):
- Ultrasonic Testing (UT): Detects internal delamination, voids, inclusions.
- X-ray Imaging: More intuitive detection of internal structural defects.
- Infrared Thermography: Detects uniformity in structural thickness and thermal signature.
- Mechanical Performance Testing: Testing per standards (e.g., ASTM D3039, D3410, D4475) for tension, flexure, interlaminar shear, etc. Key metrics include: Tensile Strength/Modulus, Flexural Strength/Modulus, Interlaminar Shear Strength (ILSS).
- Physico-Chemical Characterization: Fiber Volume Content (FVC), Resin Content, Void Content Determination (Metallography/Combustion), Glass Transition Temperature (Tg).
Conclusion
As an important member of the carbon fiber composite family, Carbon Fiber Flat Bars, leveraging their unparalleled specific strength, specific stiffness, exceptional fatigue life, and corrosion resistance, have become a core foundational material driving lightweighting and high-performance trends in aerospace, new energy vehicles, wind power, and high-end equipment manufacturing. Their precision pultrusion process and stringent quality control ensure high product reliability.
As carbon fiber production capacity expands, costs continue to optimize (especially with large-tow civil applications), and resin systems (e.g., thermoplastics, low-temperature cure resins) and smart joining technologies keep advancing, the application breadth and depth of Carbon Fiber Flat Bars will undoubtedly continue to expand. They will not only enhance the performance limits of existing industrial products but also empower next-generation intelligent equipment and structures, propelling the era towards an even lighter and stronger future. In the evolving technological landscape shifting from “steel forests” to “carbon fiber forests,” this slender, ink-black linear material is silently buttressing the leap forward in human industry.
FAQ
Q: How does its strength compare to metal?
A: Tensile strength ≥1,500 MPa (3× stronger than 304 stainless steel), with specific strength (strength/density) exceeding aluminum alloy by 5×.Q: Why are surfaces textured/grooved?
A: Enhances mechanical interlock! Embossed textures or grooves increase bonding strength with substrates (e.g., concrete/composites), improving peel resistance by 30%.Q: What is the maximum bend angle?
A: Epoxy-based bars: Minimum bend radius ≥100× thickness. Thermoplastic bars (e.g., PA/PEEK-based) can be heat-formed into curves.Q: How to cut without splintering?
A: Use diamond grinding wheels + water cooling (recommended) or ultrasonic cutting. Avoid angle grinders (resin burns).Q: Effectiveness in structural reinforcement?
A: In concrete beam flexural strengthening, an 8mm-thick bar provides bearing capacity equivalent to 20mm steel plates with zero corrosion risk.Q: Why used in robot joints?
A: ① High rigidity dampens vibration ② Lightweight boosts response speed ③ Zero magnetic interference (also suitable for MRI equipment).
