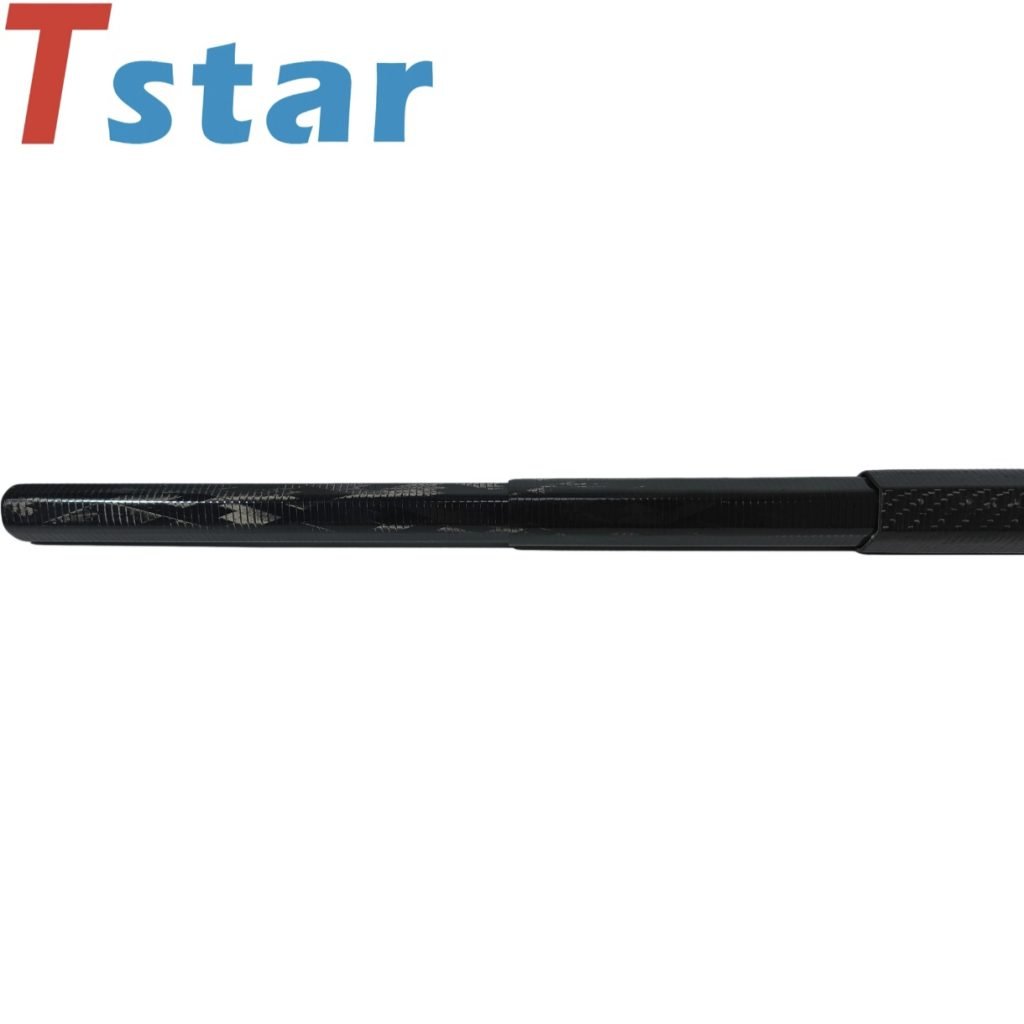

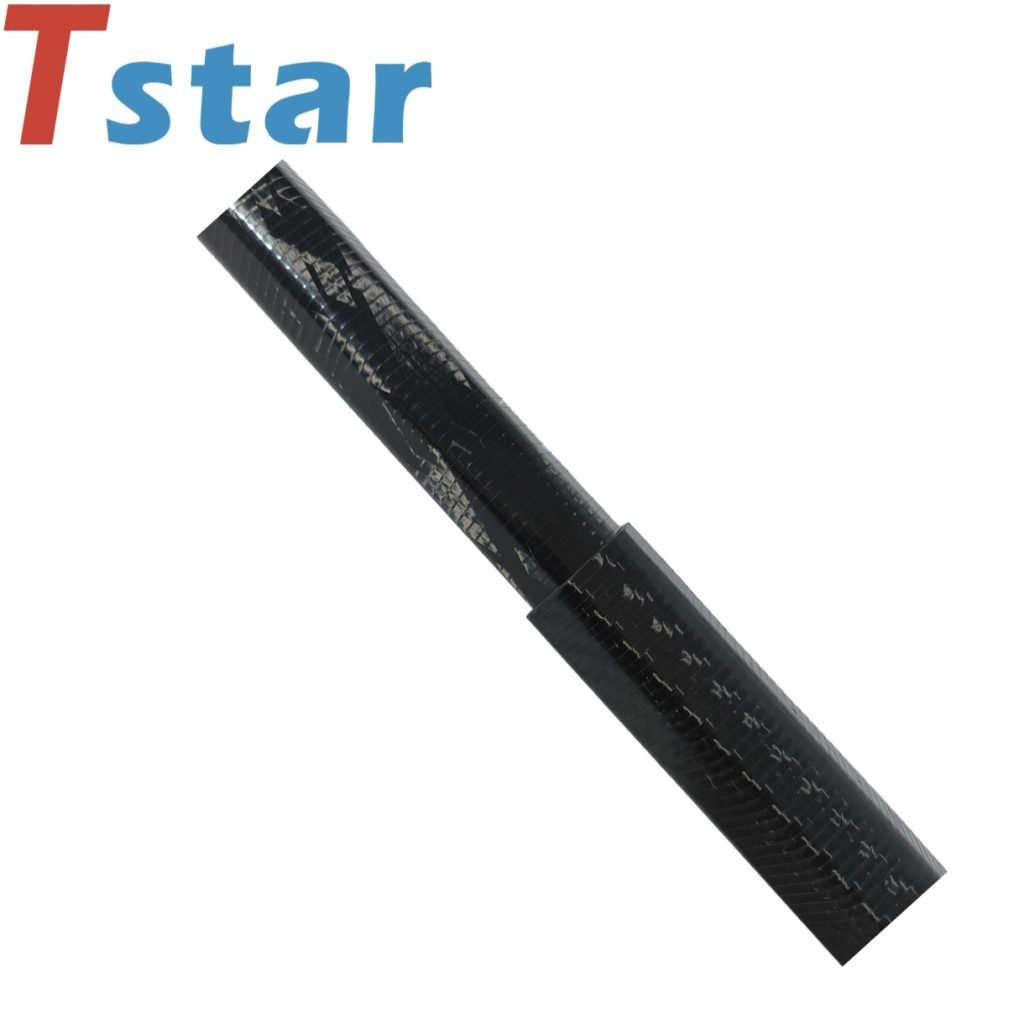

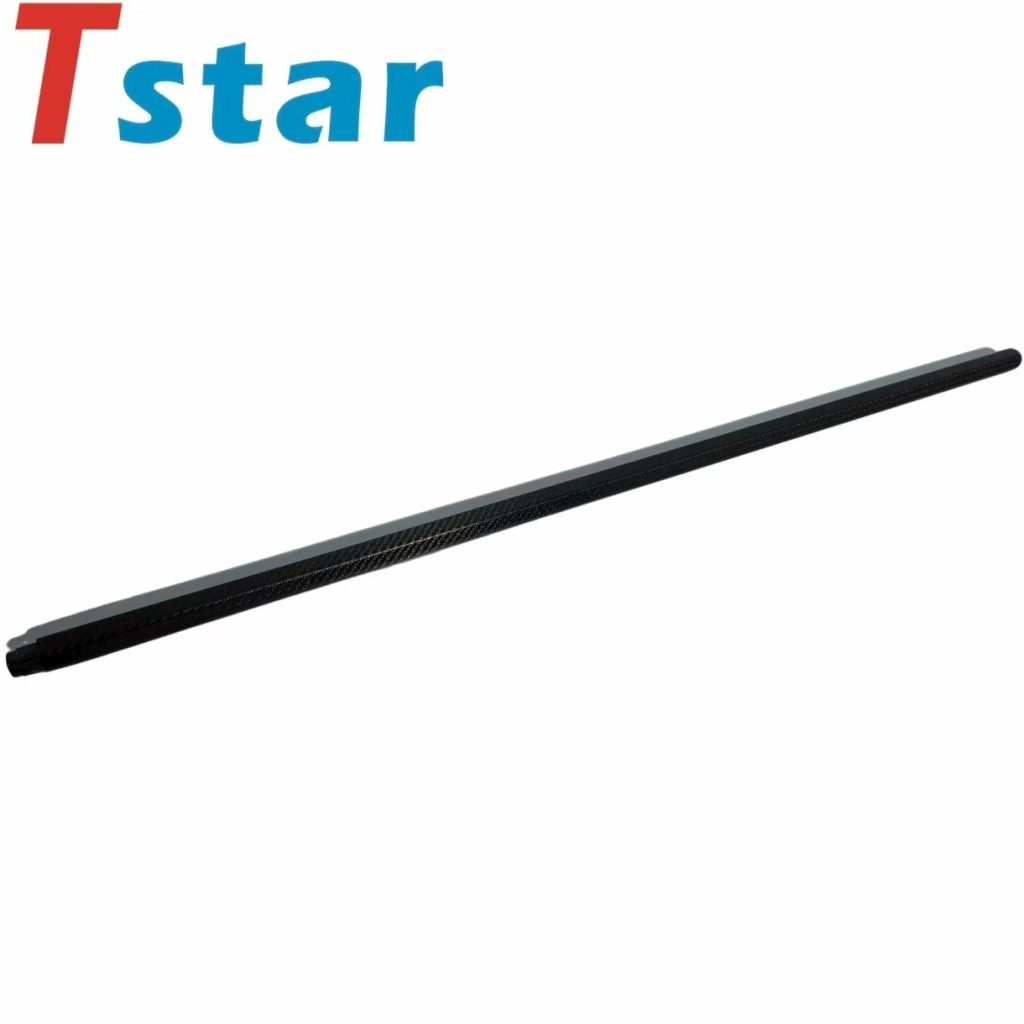

What is Carbon fiber hexagonal tube
1. Product Overview
The Carbon fiber hexagonal tube is a high-performance composite tube manufactured using high-strength carbon fiber and resin matrix through high-temperature curing. Its unique hexagonal structure, combined with the superior mechanical properties of carbon fiber, makes it ideal for lightweight, high-strength, and high-stiffness applications. This product is widely used in aerospace, drones, robotics, medical devices, sports equipment, and high-end industrial machinery.
2. Key Features
Ultra-Light & High Strength: With a density of only 1.5-1.8g/cm³, carbon fiber hexagonal tubes are approximately 30% lighter than aluminum but stronger than steel, offering an excellent strength-to-weight ratio.
Superior Mechanical Performance: The hexagonal design of the carbon fiber hexagonal tube enhances bending and torsional stiffness, making it suitable for high load and dynamic stress environments.
Corrosion & Fatigue Resistance: The carbon fiber hexagonal tube is resistant to moisture, chemicals, and UV rays, ensuring long-term durability without warping or rusting.
Low Thermal Expansion: Carbon fiber hexagonal tubing has excellent dimensional stability in extreme temperatures, making it ideal for precision instruments and harsh conditions.
Customizable: Carbon fiber hexagonal tubing is available in a variety of wall thicknesses, sizes, surface finishes (matte/glossy), and resin systems (epoxy, high temperature, etc.).
3. Technical Specifications
Material: T700/T800 carbon fiber + epoxy resin (other matrices available)
Cross-Section: Carbon fiber hexagonal tube is a regular hexagon
Standard Sizes: Outer diameter 10-100mm, wall thickness 1-5mm, customizable lengths
Surface Finish: 3K/12K twill, plain weave, or matte coating
Operating Temperature: -50°C to +150°C (high-temperature versions up to 200°C+)
4. Typical Applications
Aerospace: Drone arms, satellite brackets, spacecraft structures
Industrial Machinery: Robotic arms, linear guide shafts, high-precision instrument frames
Sports Equipment: Bicycle frames, golf clubs, fishing rods
Automotive: Lightweight reinforcement parts, race car roll cages
Medical Devices: X-ray machine supports, surgical robot components
5. Advantages Over Traditional Materials
Compared to metal tubes (e.g., aluminum, steel), carbon fiber hexagonal tubes offer the same strength at a fraction of the weight, with no risk of metal fatigue from vibrations. Additionally, their non-conductive and non-magnetic properties make them suitable for electronics and specialized industrial environments.
6. Customization & Services
Custom orders are welcome, including special dimensions, embedded connectors, and surface coatings. Strict quality control (mechanical testing, ultrasonic inspection) ensures product consistency.
| Specification | Value |
|---|---|
| Material | High-strength carbon fiber (T700/T800 grade) |
| Weight | Ultra-lightweight (~150-200g/m, depending on dimensions) |
| Color | Standard black (3K twill/matte), customizable colors available |
| Length | Customizable (standard: 500mm/1000mm/1500mm, custom cutting supported) |
| Outer Diameter (A/F) | 10mm-100mm (common sizes: 15mm/20mm/25mm/30mm) |
| Wall Thickness | 1mm-5mm (adjustable per requirements) |
| Load Capacity | Static load up to 50kg (varies by size and wall thickness) |
| Environmental Resistance | Waterproof, oil-resistant, corrosion-proof, UV-resistant, operable at -50℃~+150℃ |
| Applications | Aerospace, drone frames, robotic arms, high-end sports equipment, industrial machinery, medical devices |
Note: The values listed in the table are approximate and may vary depending on the specific product model and manufacturer. It is recommended to consult the product datasheet for accurate and detailed specifications.
Industry Trends of Carbon fiber hexagonal tubes
1. Sustained Market Demand Growth
The carbon fiber hexagonal tube market is experiencing significant expansion, driven by lightweighting trends across industries. The aerospace sector shows an estimated 8.5% CAGR, while drone and robotics applications are growing at 12% annually. EV industry demand for lightweight structures further propels market growth.
2. Technology Innovation Driving Development
Key technological advancements include:
Carbon fiber hexagonal tube is the development of intelligent carbon fiber material
Application of nano-enhanced composites
3D printed carbon fiber preform technology
Breakthroughs in sustainable production methods
3. Diversification of Application Fields
Beyond traditional aerospace uses, emerging applications encompass:
Wind turbine structural components
High-speed train lightweight parts
Medical imaging equipment supports
Premium consumer electronics framing
4. Regional Market Dynamics
Asia-Pacific emerges as the fastest-growing market, with China accounting for 35% of global carbon fiber capacity. North America maintains technological leadership in high-end applications, while Europe focuses on sustainable production R&D.
5. Supply Chain and Cost Challenges
Raw material price volatility and geopolitical factors impact supply chain stability. Industry responses include:
Regionalized supply chain development
Low-cost manufacturing process innovation
Improved material utilization rates
6. Sustainability Trends
Stringent environmental regulations are driving transformation:
Breakthroughs in bio-based resin development
Commercialization of carbon fiber recycling
Enhanced energy efficiency in production
7. Five-Year Outlook
By 2028, the global carbon fiber hexagonal tube market is projected to reach $1.25 billion, with a 9.2% CAGR. Price competition will intensify, but high-performance specialty products will maintain premium margins.
Key Differentiators:
Detailed market growth projections by sector
Specific technological innovation examples
Clear regional market analysis
Concrete sustainability initiatives
Actionable industry challenges and responses
Application of Carbon fiber hexagonal tube
1. Aerospace Applications
CF hexagonal tubes are critical aerospace components due to their exceptional strength-to-weight ratio:
Drone frames and rotor arms: Reduce weight while maintaining rigidity
Satellite support structures: Meet dimensional stability requirements in space
Aircraft interior frameworks: Comply with FAA fire standards while reducing fuel consumption
Spacecraft solar panel mounts: Withstand extreme temperature variations
2. High-End Industrial Uses
Essential for precision manufacturing:
Industrial robotic arms: Enhance motion accuracy and response speed
Semiconductor equipment frames: Eliminate metal contamination risks
Precision measurement instruments: Ensure measurement stability
Automated production line conveyors: Reduce inertia and improve efficiency
3. Transportation Industry
Driving lightweight revolution in vehicles:
EV battery frames: Improve energy density
High-speed train interior structures: Reduce operational noise
Motorcycle frames: Enhance handling performance
Race car roll cages: Absorb impact energy
4. Medical Equipment
Meeting specialized healthcare needs:
MRI support structures: Non-magnetic interference
Surgical robot arms: Withstand high-temperature sterilization
Portable medical devices: Reduce staff burden
Rehabilitation aids: Provide optimal rigidity support
5. Sports & Recreation
Enhancing athletic equipment performance:
Competition bicycle frames: Optimize power transfer
Golf club shafts: Increase driving distance
Fishing rods: Improve sensitivity
Trekking poles: Balance lightness and strength
6. Renewable Energy
Supporting clean energy development:
Wind turbine blade connectors: Resist fatigue loads
Solar tracking system mounts: Excellent weather resistance
Hydrogen vehicle tank frames: Safety protection
Tidal energy equipment structures: Resist seawater corrosion
7. Specialized Applications
For extreme environments:
Polar expedition equipment: Withstand -60°C temperatures
Deep-sea exploration frames: Resist high pressure and corrosion
Explosion-proof equipment: No spark generation
Electronic warfare housings: Provide EMI shielding
Key Advantages
Significant weight reduction: 30-50% lighter than aluminum
Extended service life: 5-8x better fatigue resistance than metals
Design flexibility: Customizable dimensions and connection methods
Cost-effective: Lower total lifecycle cost than traditional materials
Environmental adaptability: Stable performance from extreme cold to high heat
Advantages of Carbon fiber hexagonal tube
1. Outstanding Mechanical Properties：
Specific strength 5x higher than steel
Specific modulus 3-4x greater than aluminum
Hexagonal structure provides isotropic performance
Tensile strength exceeds 3000MPa (T800 grade)
2. Revolutionary Lightweight Characteristics:
Density only 1.5-1.8g/cm³, 40% lighter than aluminum
1/5 the weight of steel structures at equal strength
Reduces moment of inertia in moving parts
Significantly improves energy efficiency
3. Exceptional Fatigue Resistance:
Fatigue life 10x longer than metals
30% better vibration damping than metals
Immune to stress corrosion cracking
Maintains dimensional stability over time
4. Unique Thermal Performance:
Near-zero CTE (0.5×10⁻⁶/°C)
Low thermal conductivity (1/100 of aluminum)
High-temperature versions withstand 200°C continuously
Retains toughness at cryogenic temperatures (-196°C)
5. Superior Environmental Resistance:
Complete immunity to electrochemical corrosion
Excellent UV resistance
Resistant to acids, alkalis and salt spray
Mold-free, meets medical-grade requirements
6. Special Functional Properties：
EMI shielding effectiveness >60dB
Good X-ray translucency
Non-magnetic, safe for sensitive equipment
Tunable electrical conductivity
7. Design and Manufacturing Benefits:
Reduces fasteners with integrated construction
Allows embedded connection features
Multiple surface finish options
Supports rapid prototyping
Comprehensive Benefit Analysis
Weight reduction: $3000+ annual fuel savings per 1kg in aviation
Lifecycle cost: 40% savings vs metal structures over 5 years
Maintenance: Near-zero maintenance (90% cost reduction)
Sustainability: Recyclable with 35% lower carbon footprint than metals
Comparison between carbon fiber hexagonal tube and ordinary steel
1. Physical Properties Comparison
| Parameter | CF Hex Tube(T700) | Mild Steel(Q235) | Advantage Ratio |
|---|---|---|---|
| Density(g/cm³) | 1.6 | 7.85 | 4.9x lighter |
| Tensile(MPa) | 3000 | 375 | 8x stronger |
| Modulus(GPa) | 230 | 210 | 1.1x stiffer |
| Specific Strength | 1875 | 48 | 39x better |
| Specific Modulus | 144 | 27 | 5.3x better |
2. Engineering Performance
Fatigue Behavior:
CF: >90% strength retention after 10⁷ cycles
Steel: Visible cracks after 10⁶ cycles
Life difference: 10-100x longer for CF
Environmental Resistance:
Salt spray(500h):
CF: Zero corrosion
Steel: Complete rusting
Temperature:
CF: Stable -196~150℃
Steel: Brittle at low temp, soft at high temp
3. Manufacturing Comparison
| Aspect | CF Hex Tube | Steel Tube |
|---|---|---|
| Forming | Autoclave curing | Rolling/Welding |
| Energy Use | 80-100kWh/kg | 30-50kWh/kg |
| Min Bend Radius | 5×Dia | 3×Dia |
| Joining | Adhesive/Special fittings | Welding/Bolts |
| Material Waste | <5% | 10-15% |
4. Cost Analysis(Φ50mm×1m)
| Item | CF Tube | Steel Tube |
|---|---|---|
| Material Cost | $120-180 | $9-12 |
| Installation | $30(adhesive) | $22(welding) |
| Service Life | 15-20 years | 5-8 years |
| Annual Maintenance | <$1.5 | $7-15 |
| TCO(10 years) | $135-195 | $120-180 |
5. 应用适用性
CF 首选：
航空航天结构（节省 450 美元/磅）
腐蚀环境（化工厂）
动态负载（机器人关节）
EMI敏感区域（MRI）
首选钢材：
超低预算项目（<15美元/公斤）
极高温度（>300℃）
需要塑性的结构（防撞梁）
量产（建筑框架）

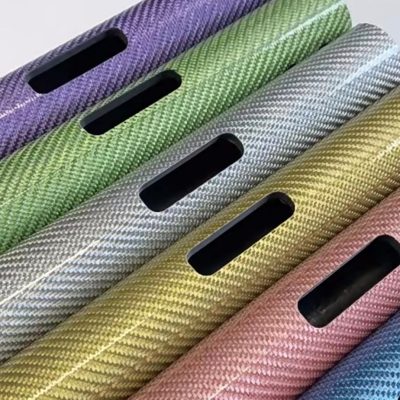

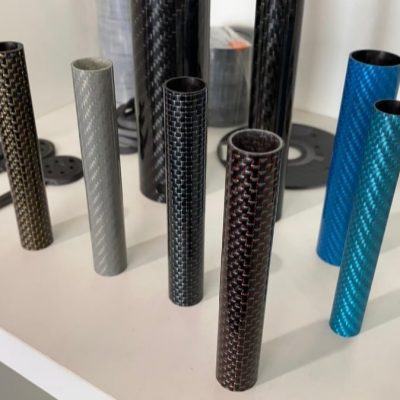

Custom color
We can match any color based on standard color codes or provided samples.
Custom details on carbon fiber hexagonal tubes
| Parameter | Options | Technical Notes |
|---|---|---|
| Material Grade | T300 / T700 / T800 / M40J / M55J | T-series for strength, M-series for stiffness |
| Resin System | Epoxy / Bismaleimide / Polyimide / Phenolic | Epoxy for general use, BMI/PI for high temp, Phenolic for flame retardancy |
| Fiber Layup | 0° UD / ±45° Cross / 0/90° Orthogonal / 3D Weave | UD for axial strength, Cross for torsion, 3D for integrity |
| Dimensions | A/F: 10-200mm / Wall: 0.5-10mm | Tolerance ±0.1mm (±0.05mm for precision grade) |
| Length | Standard: 500/1000/1500mm / Max continuous: 6m | Segmented construction for extra-long tubes |
| Surface Finish | Matte / Glossy / 3K Twill / 12K Plain / Custom coating (conductive/wear-resistant) | 3K twill for aesthetics, wear-coating increases hardness by 50% |
| Connections | Embedded metal inserts / Bonding grooves / Quick-release / Flanges | Insert positioning accuracy ±0.2mm |
| Special Features | Conductive (<10Ω) / Flame retardant (UL94 V0) / Anti-static (106-109Ω) / RF-transparent | Functional modifications may affect mechanical properties |
| QC Methods | Ultrasonic testing / IR thermography / 3D scanning / Mechanical testing | With ISO 9001/AS9100 certification |
about Us
Complete set of tooling
Our carbon fiber products are manufactured using a variety of molds to ensure precision and consistency in the final product. We have multiple sets of molds designed to accommodate different shapes, sizes, and specifications of carbon fiber components.
High production capacity
Our carbon fiber products are manufactured with high production capacity, ensuring efficient and cost-effective mass production. We have invested in advanced equipment and technology to streamline the production process and maximize output.
High product precision
Our carbon fiber components are designed and engineered to meet the exacting requirements of various industries and applications. We utilize computer-aided design (CAD) and computer-aided manufacturing (CAM) technologies to ensure precise measurements and cuts during the production process.
Catering to various customized processing needs
Our carbon fiber products are versatile and can cater to a wide range of customized processing needs. Whether it is for aerospace, automotive, sports equipment, or any other industry, our carbon fiber can be tailored to meet specific requirements.
FAQ
Q1: What temperature can carbon fiber hexagonal tubes withstand?
A1:
Standard epoxy: 150°C continuous, 200°C short-term
High-temp (polyimide): 250°C continuous, 300°C peak
Cryogenic performance: Remains tough at -196°C (liquid nitrogen)
Q2: How to connect carbon fiber hexagonal tubes?
A2:
Adhesive bonding: Epoxy structural adhesive (>20MPa shear strength)
Mechanical: Embedded titanium threaded inserts (load capacity ≥5kN)
Innovative: 3D printed custom connectors (30% weight reduction)
Q3: What is the minimum bend radius for carbon fiber hexagonal tubes?
A3:
Standard wall (2-3mm): ≥5× diameter (e.g. Φ20mm tube needs 100mm radius)
Thin wall (1mm): ≥8× diameter (requires anti-buckling design)
Special process: Hot-forming achieves 3× diameter (with mold)
Q4: Are carbon fiber hexagonal tubes conductive?
A4:
Standard: Resistivity 10⁻³Ω·m (semi-conductive)
Conductive: Adding CNTs achieves <10Ω (for anti-static)
Insulated: Glass fiber coating (resistance >10¹²Ω)
Q5: What is the lead time for custom carbon fiber hexagonal tubes?
A5:
Standard specs: 7-10 workdays (with semi-finished stock)
Full custom: 3-5 weeks (includes mold development + prototyping)
Expedited: 2 weeks (30% cost premium)
