Industrial robots live and die by cycle time. A pick-and-place robot making 20 moves per minute at 3 kg payload burns through 28,800 cycles per day. Shaving 0.1 seconds off each move — by reducing the mass the motors must accelerate and decelerate — saves 48 minutes of production time per day. Carbon fiber robotic arms achieve this mass reduction not by being marginally lighter than aluminum, but by being 60% lighter at equivalent stiffness. Here is the engineering case for making the switch.
The Real Cost of Heavy Robotic Arms
A typical aluminum robotic arm for a 6-axis articulated robot weighs 12–18 kg for a 1.5-meter reach. The motors must accelerate this mass from standstill to full speed and back to stop thousands of times per day. Every kilogram of arm mass requires roughly 0.5–1.0 kg of additional motor mass to achieve the same acceleration profile. This compounding effect means a 5 kg weight reduction in the arm translates to 8–10 kg reduction in the total robot mass, which in turn allows a smaller base, lighter bearings, and lower-cost gearboxes. The weight savings cascade through the entire robot design.
The energy cost is equally significant. A 6-axis robot moving 12 kg of arm mass consumes approximately 4–6 kW during rapid motion. Reducing arm mass by 60% cuts energy consumption by roughly 40% — saving $2,000–4,000 per robot per year in electricity at industrial rates. For a factory with 50 robots, that is $100,000–200,000 in annual energy savings.
Why Aluminum Falls Short
Aluminum has been the default robotic arm material for decades because it is familiar, machinable, and reasonably light at 2.7 g/cm³. But aluminum has a specific stiffness (elastic modulus divided by density) of about 26 GPa/(g/cm³). Carbon fiber in a quasi-isotropic layup achieves approximately 40–50 GPa/(g/cm³) — nearly double. This means a carbon fiber arm can be half the weight of an aluminum arm at the same stiffness, or stiffer at the same weight.
Aluminum also suffers from fatigue — it has no endurance limit. Every stress cycle, no matter how small, consumes a fraction of the material’s fatigue life. A robotic arm making 28,800 cycles per day accumulates 10 million cycles per year — well into the high-cycle fatigue regime for aluminum. Carbon fiber composites, properly designed, have essentially infinite fatigue life at the stress levels seen in robotic arms, because the load is carried by the elastic carbon fibers rather than a metal crystal lattice that accumulates dislocations.
How Carbon Fiber Solves the Problem

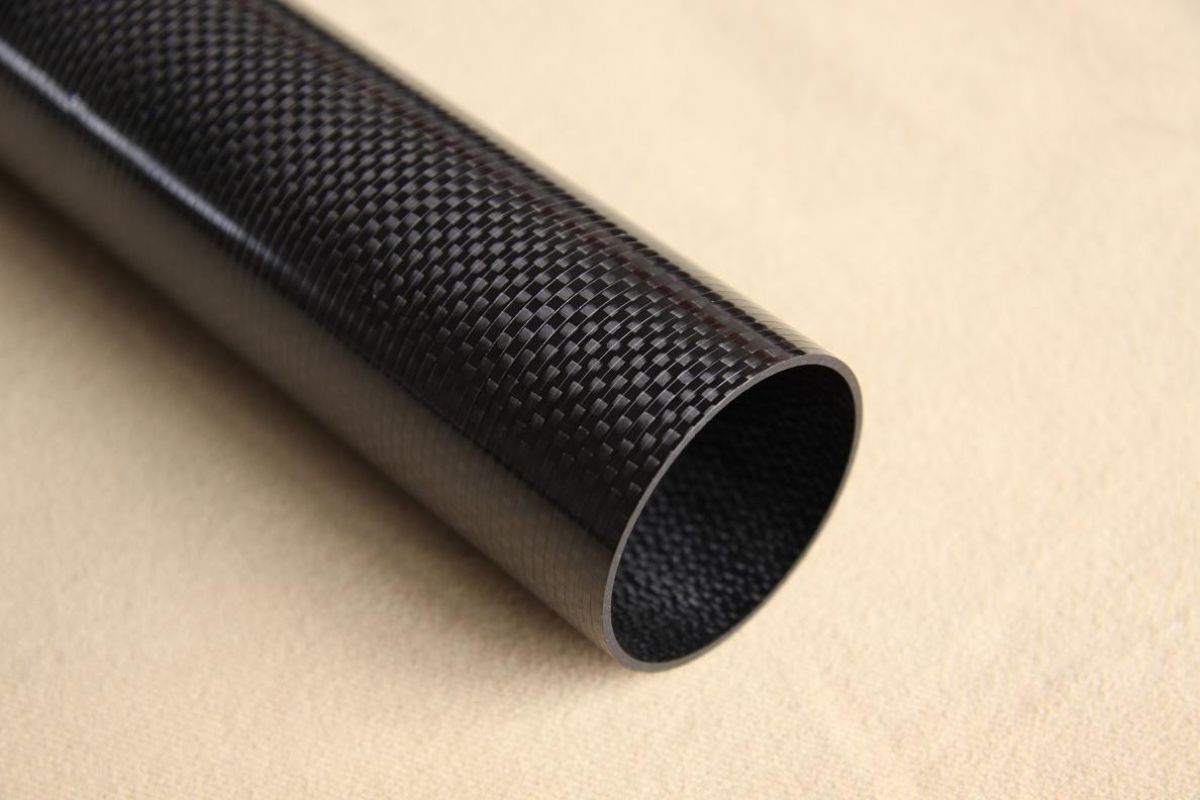

Carbon fiber robotic arms are typically built from roll-wrapped tubes for the main structural links, with machined aluminum or titanium end fittings bonded into the tube ends. The tube wall is designed to provide the required bending stiffness and strength in all directions. A quasi-isotropic [0/±45/90] layup provides balanced properties — the 0° plies give axial stiffness, the ±45° plies give torsional strength, and the 90° plies prevent the tube from ovalizing under bending loads.
The weight savings are dramatic. A 1.5-meter carbon fiber arm link with 50 mm diameter and 3 mm wall thickness weighs approximately 1.1 kg. The equivalent aluminum link (same stiffness) weighs 2.8 kg — 2.5× heavier. A complete 6-axis robot arm built with carbon fiber links typically weighs 5–8 kg versus 12–18 kg for aluminum — a 55–60% reduction.
Measurable Results: What to Expect After Switching
Companies that have converted robot arms from aluminum to carbon fiber report consistent results: cycle time reduction of 15–25% due to faster acceleration and deceleration, motor size reduction of 1–2 frame sizes (reducing motor cost by 30–40%), energy consumption reduction of 35–45%, and bearing life extension of 2–3× due to lower dynamic loads. The carbon fiber arm typically costs 20–40% more than the aluminum arm it replaces but pays back through motor savings and energy reduction within 12–18 months of continuous operation.
Carbon Fiber vs Aluminum Robot Arm Comparison
| Property | Carbon Fiber (Quasi-Iso) | Aluminum 6061-T6 | Aluminum 7075-T6 |
|---|---|---|---|
| Density (g/cm³) | 1.6 | 2.7 | 2.8 |
| Tensile Modulus (GPa) | 40–55 | 69 | 71 |
| Specific Stiffness | 25–34 | 25.5 | 25.4 |
| Vibration Damping | 0.5–1.0% (high) | 0.1% (low) | 0.1% (low) |
| Fatigue Life (10M cycles) | Infinite (no limit) | ~100 MPa endurance | ~160 MPa endurance |
| Thermal Expansion | ~0.5 ppm/°C | 23.6 ppm/°C | 23.5 ppm/°C |
| Arm Weight (1.5m, 50mm OD) | 1.1 kg | 2.8 kg | 2.9 kg |
CFRP TSTAR manufactures carbon fiber robotic arm links with custom layup schedules optimized for bending stiffness, torsional strength, and vibration damping. Bonded end fittings with precise alignment tolerances. Contact us with your robot specifications for a weight reduction analysis.
