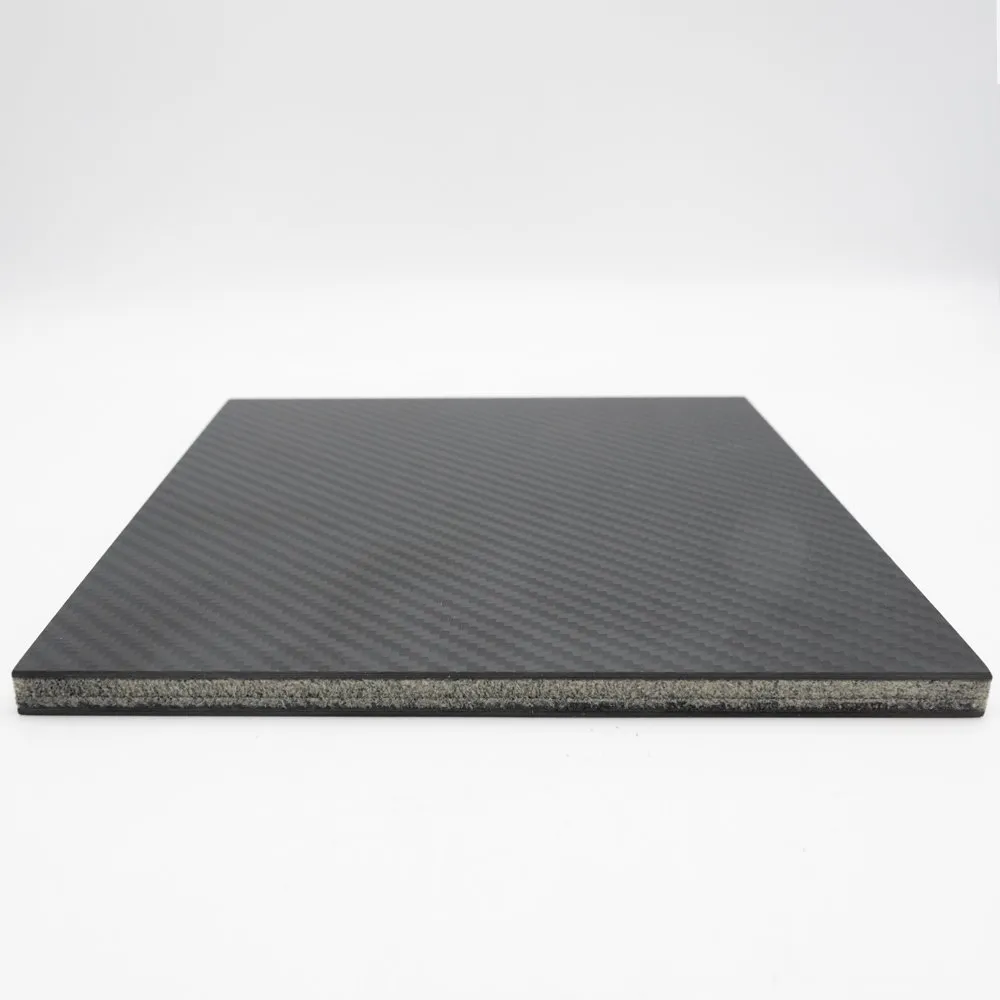

Carbon Fiber Sandwich Panel
Product Description
The first time you pick it up, your hand hesitates.
It looks solid—should feel heavy. But it doesn’t. That’s the first thing you notice about a carbon fiber sandwich panel. The woven surface beneath your fingers tells you this isn’t just another material. It’s precise. It’s intentional. It feels like something made by people who care about how things feel.
Under pressure, it holds. In the wind, it doesn’t give. You don’t have to worry about it, and it never gives you a reason to.
Years later, there might be scratches. Maybe a mark from that one install. But when you pick it up again, it feels exactly the same—light, solid, unchanged. Some things don’t need to say much. You just know you can trust them.
| Specifications | Value |
|---|---|
| Skin Material | High-quality carbon fiber prepreg |
| Core Type | Aluminum honeycomb / PMI foam / Aramid honeycomb (optional) |
| Overall Thickness | 5mm / 10mm / 15mm / 20mm (customizable) |
| Skin Thickness | 0.5mm / 1.0mm / 1.5mm (customizable) |
| Weight | Lightweight design, approx. 3.5 kg/m² (varies by thickness and core material) |
| Surface Finish | Matte black / Gloss black / Customizable coating |
| Standard Panel Size | 1000mm × 1000mm / 1200mm × 2400mm (customizable) |
| Flexural Strength | ≥ 150 MPa (depending on structural design) |
| Flexural Modulus | ≥ 10 GPa |
| Operating Temperature | -40°C to +80°C |
| Environmental Resistance | UV resistant, salt spray resistant, corrosion resistant |
| Typical Applications | Aerospace components, rail transit, marine manufacturing, medical devices, robotics enclosures, sports equipment, architectural panels |
Note: The values listed in the table are approximate and may vary depending on the specific product model and manufacturer. It is recommended to consult the product datasheet for accurate and detailed specifications.
Industry Trends
I. People No Longer Ask “How Strong Is It?”—They Ask “How Light Does It Feel?”
For years, the industry was obsessed with numbers—strength, modulus, temperature resistance. But now, more people are asking a different question: does using this actually feel easier?
The real value of a carbon fiber sandwich panel has never been “how many tons it can carry.” It’s about how much effort it saves the person using it. Whether it’s an engineer lifting a large panel for the first time, or a worker’s arm fatigue at the end of a shift—lightness is becoming a measurable user experience.
The shift is toward human-centered lightweighting. Not grams on a spec sheet, but the disappearance of physical burden.
II. People Are Starting to Care About How It Feels to the Touch
Carbon fiber used to feel distant—something for race cars, aircraft, military applications. Most people never touched it.
That’s changing. From outdoor gear to medical devices, from consumer electronics to furniture, carbon fiber sandwich panels are entering everyday life. And with that comes a new question: how does it actually feel?
Matte or gloss? Coarse or smooth? Does it feel cold to the touch in winter? These details never appeared in technical datasheets before. Now, they’re becoming deciding factors.
The industry is moving from feature-first to experience-first. Materials are ultimately used by people. And people care about what their fingers tell them.
III. People Don’t Want to Become Material Experts
A carbon fiber sandwich panel—two carbon skins with a lightweight core—is already a solution to the “light yet strong” contradiction. But most users don’t want to understand the engineering behind it.
They just want to know one thing: can I use this without worrying about it?
The trend is solution-oriented, not material-oriented. Customers no longer want to buy “a panel.” They want to buy “a component that installs and then disappears from my to-do list.” Prepreg, co-curing, one-shot molding—these technical terms are being replaced by language like “ready to use” and “drop-in solution.”
IV. People Are Asking What Happens When It’s Done
This isn’t just a corporate sustainability slogan. As carbon fiber products become more common in everyday life, a real question emerges: where does it go when it’s worn out?
Carbon fiber composites have long had a recycling problem—a topic the industry used to avoid. But now, from aerospace to sporting goods, more people are asking. Not because of regulations, but because of a simple human instinct: a good product shouldn’t end up as waste with nowhere to go.
The industry is responding: recyclable thermoplastics, disassemblable core structures, recycled carbon fiber reclamation. Not for a green label, but so people can use these materials with a clear conscience.
V. People Choose Brands That Understand Them
The carbon fiber industry used to run on spec sheets—buyers asked for numbers, sellers provided them. But now, whether B2B or B2C, people want to feel understood.
A medical device engineer doesn’t just want a high-strength panel. They want to know: “Can this help reduce the weight my patients have to carry?” A high-end audio brand doesn’t just want a rigid enclosure. They want: “Can this make the sound cleaner while making it easier for someone to move?”
The trend is from selling materials to empathizing with needs. The brands that truly understand the user’s real-world experience are the ones people choose.
Application
I. Where People Move
Transportation: Making Travel Feel Lighter
When you step into a high-performance electric vehicle and feel that instant response under your foot—there’s a good chance a carbon fiber sandwich panel is part of the story. Roof panels, floor structures, battery covers. It sheds weight, which means more miles on the same charge. It lowers the center of gravity, so cornering feels planted and secure.
On a high-speed train, interior panels and luggage racks made from carbon fiber sandwich panels reduce overall weight while making the cabin noticeably quieter. You might not notice the material. But you might notice: this ride feels calmer.
Aviation: Making Flight Feel Effortless
Every carbon fiber sandwich panel that goes into an aircraft ultimately serves the people in the cabin. Lighter airframes mean lower fuel burn, which helps keep ticket prices in check. Durable structures mean fewer delays. Less time waiting at the gate, more time where you actually want to be.
II. Where People Explore
Sports Equipment: Keeping Passion Light
A cyclist on a carbon fiber sandwich frame will tell you: on a steep climb, the bike doesn’t feel like it’s fighting back. A surfer carrying a carbon fiber sandwich board to the water will notice: their arms aren’t already tired before the first wave.
In these moments, the panel does one simple thing: it saves the user’s energy for the activity they actually came for, not for hauling gear around.
Marine & Water Sports: Making Time on the Water Better
A sailboat built with carbon fiber sandwich panels is lighter and stiffer. Lighter means it catches even a modest breeze. Stiffer means the hull doesn’t flex under wave impact—no creaks, no hesitation. What the sailor feels is direct, immediate control.
III. Where People Heal
Medical Devices: Sharing the Burden
A carbon fiber sandwich imaging table lets X-rays pass through cleanly, giving doctors a clearer view. It’s also light enough that a nurse repositioning a patient doesn’t have to strain. An exoskeleton rehabilitation device with carbon fiber sandwich frames means a patient can wear it all day without pressure marks on their shoulders.
Here, the panel isn’t showing off. It’s quietly carrying some of the weight for people who already have enough to carry.
IV. Where People Create
Robotics & Automation: Making Machines More Approachable
An industrial robot arm made from carbon fiber sandwich panels weighs less. That means smaller motors, lower energy use, and quieter, more fluid movement. The operator standing next to it doesn’t feel like they’re working beside a hulking piece of machinery. It feels like something that moves with them.
High-End Equipment & Instruments: Making Tools Feel Right
A precision measurement instrument housed in a carbon fiber sandwich enclosure is less affected by temperature changes—so readings stay reliable. A photographer’s carbon fiber sandwich tripod can be carried all day without the shoulder complaining.
In these cases, what users care about isn’t the material name. It’s: does this tool make my work easier and more dependable?
V. Where People Live
Architecture & Interiors: Surfaces That Feel Different
Carbon fiber sandwich panels are finding their way into buildings—not just as structure, but as surfaces people actually see and touch. A staircase tread made from it is light enough for one person to carry during installation, yet solid enough to handle decades of daily use. A feature wall with its fine woven texture—your fingers notice it before your eyes do.
Consumer Electronics & Everyday Objects: Adding Quiet Confidence
A high-end speaker cabinet made from carbon fiber sandwich panels vibrates less—so what comes out is cleaner sound. A laptop enclosure made from it is lighter, but when it gets knocked off a table, the data inside stays safe.
These are things people hold, carry, live with. Carbon fiber sandwich panels don’t announce themselves. They just make people feel a little more at ease.
Advantages
I. It Asks Less of Your Strength
Lightness you feel the moment you pick it up
The first time someone lifts a carbon fiber sandwich panel, there’s often a slight pause—it’s much lighter than expected. That lightness isn’t just a number on a spec sheet. It means: a technician working all day finishes without aching arms. An engineer moving a large panel doesn’t need to call for help. A user carrying it to a job site arrives with energy left for the actual work.
Lightness here means your physical effort is saved for what actually matters.
II. It Asks Less of Your Attention
Stability that lets you forget it’s there
How much does a carbon fiber sandwich panel flex under load? Barely. Does it warp after years of sun and rain? Almost never. Will joints loosen over time? Its rigidity keeps connections solid.
What that feels like: you install it, and then you stop thinking about it. No routine checkups. No walking on eggshells. No late-night thoughts wondering if something might fail. It doesn’t add to your mental load.
III. It Doesn’t Make You Compromise
Thin, without being fragile
Many lightweight materials ask you to trade something—strength, stiffness, thickness. Carbon fiber sandwich panels don’t. They’re thin, but knock on them and they feel solid. They’re light, but under load they don’t budge.
This means designers don’t have to choose between “looks good” and “works well.” Products can be sleek on the outside, built solid underneath. What the user feels is a sense that nothing was compromised.
IV. It Asks Less of Your Patience
Faster delivery because it’s made to integrate
Large-format carbon fiber sandwich panels can be molded in one shot—no assembling multiple pieces, no extra fabrication steps. For manufacturers, that means shorter lead times. For the end user, it means less waiting.
When a project is on a tight schedule, that speed doesn’t add pressure. It adds breathing room. You know the material will keep up, so you don’t have to chase it.
V. It Asks Less of Your Worry
Durability that outlasts expectations
Metal rusts. Wood rots. Plastics become brittle and crack. Carbon fiber sandwich panels? They don’t corrode in humidity. They don’t break down in salt spray. They hold their shape across temperature swings.
When someone pulls out a piece of equipment made with it years later and finds it unchanged, the feeling is simple: this thing doesn’t seem to age. You don’t mentally count down its lifespan. You don’t wonder when it might need replacing. It just sits there, quietly ready.
VI. It Asks Less of Your Flexibility
Customization that makes things fit right
Thickness, core material, surface finish—carbon fiber sandwich panels can be tailored. That means designers can start with how people will actually use the product, then build the material around that, rather than forcing a standard material to work.
A medical device that contours better to a patient’s body. Sports equipment that matches an athlete’s natural movement. A device enclosure that balances heat dissipation with how it feels in hand. What the user gets isn’t “close enough.” It’s exactly right.
Customize the color
We can match any color based on standard color codes or provided samples.
Comparison with Traditional Materials
| Comparison | Carbon Fiber Sandwich Panel | Traditional Metal (Al/Steel) | Traditional Wood/Plastic |
|---|---|---|---|
| Weight | Extremely light, approx. 1/3 of aluminum by volume | Heavy | Medium to heavy or light (varies by material) |
| Strength | High specific strength, extremely strong per unit weight | High strength but lower specific strength | Moderate strength, prone to fatigue |
| Stiffness | High, minimal flex under load | Moderate, requires increased thickness for stiffness | Low, easily bends |
| Corrosion Resistance | Excellent, no rust or corrosion | Aluminum oxidizes, steel rusts | Wood rots, plastic degrades |
| Fatigue Resistance | Excellent, maintains performance under cyclic loads | Prone to fatigue, risk of cracks over time | Susceptible to fatigue failure |
| Thermal Stability | Very low thermal expansion, dimensionally stable | Expands and contracts significantly with temperature | Wood warps, plastic softens or becomes brittle |
| Surface Texture | Woven finish, modern aesthetic | Metallic finish or painted | Natural grain or plastic-like finish |
| Fabrication | Molded in one piece, complex shapes possible | Cutting, welding, bending | Cutting, fastening, injection molding |
| Service Life | Long, weather-resistant, minimal aging | Medium to long, requires maintenance against corrosion | Shorter, highly affected by environment |
| Recyclability | Thermoset types difficult to recycle; thermoplastics recyclable | Easily recyclable | Wood biodegradable; plastic low recycling rate |
Our Advantages
Complete set of tooling
Our carbon fiber products are manufactured using a variety of molds to ensure precision and consistency in the final product. We have multiple sets of molds designed to accommodate different shapes, sizes, and specifications of carbon fiber components.
High production capacity
Our carbon fiber products are manufactured with high production capacity, ensuring efficient and cost-effective mass production. We have invested in advanced equipment and technology to streamline the production process and maximize output.
High product precision
Our carbon fiber components are designed and engineered to meet the exacting requirements of various industries and applications. We utilize computer-aided design (CAD) and computer-aided manufacturing (CAM) technologies to ensure precise measurements and cuts during the production process.
Catering to various customized processing needs
Our carbon fiber products are versatile and can cater to a wide range of customized processing needs. Whether it is for aerospace, automotive, sports equipment, or any other industry, our carbon fiber can be tailored to meet specific requirements.
FAQ
1. How light is a carbon fiber sandwich panel, and what does that mean for me?
It weighs about one-fifth of steel and one-third of aluminum at the same thickness. What that means in practice: one person can carry and install it without straining. When made into a finished product, it won’t wear you out just by moving it around. Simply put, it saves your physical effort.
2. Is it strong? Will it crack if something hits it?
Yes, it’s strong. The carbon fiber skins provide high strength, while the core absorbs and distributes impact energy. Under normal use, its impact resistance is comparable to metal—and unlike metal, it doesn’t dent permanently. However, if subjected to a sharp, concentrated impact beyond its design limit, the surface can crack.
3. Can it handle outdoor use? Will sunlight damage it?
High-quality carbon fiber sandwich panels use UV-resistant resin systems and hold up well outdoors for years. Standard panels without UV protection may develop slight yellowing or micro-cracks on the surface after prolonged sun exposure. The key is choosing the right material grade for your environment.
4. Can it be machined? Drilling, cutting, etc.?
Yes. Carbon fiber sandwich panels can be cut, drilled, and milled using carbide or diamond-tipped tools. Two things to keep in mind: machining creates fine dust, so proper protection is recommended. Also, after drilling, sealing the cut edges helps prevent moisture from entering the core.
5. Is it expensive? Is it worth the cost?
The upfront cost is higher than standard steel or aluminum. Whether it’s worth it depends on how you calculate value. When you factor in weight savings, reduced maintenance, and longer service life, the total cost often ends up lower in many applications. It comes down to whether you value “less hassle” and “better performance” over a lower initial price.
6. Where should I use it? Where should I avoid it?
It’s ideal for applications that demand both lightness and stiffness: transportation, sports equipment, medical devices, robotics components, and more. It’s less suitable for flexible structures that need repeated bending, and not recommended for continuous use above 80°C unless a high-temperature resin system is specified.
