Carbon Fiber Sandwich Panels Product Description
In the modern industrial landscape where extreme performance and efficiency are paramount, material selection often dictates the success or failure of a design. As lightweighting, high strength, and fatigue resistance become essential requirements, Carbon Fiber Sandwich Panels are rapidly expanding beyond their traditional domains of aerospace and high-end racing into new energy, rail transportation, high-end equipment, and even construction. Leveraging the unique advantages of their composite structure, they are emerging as a core structural material driving the lightweighting revolution.

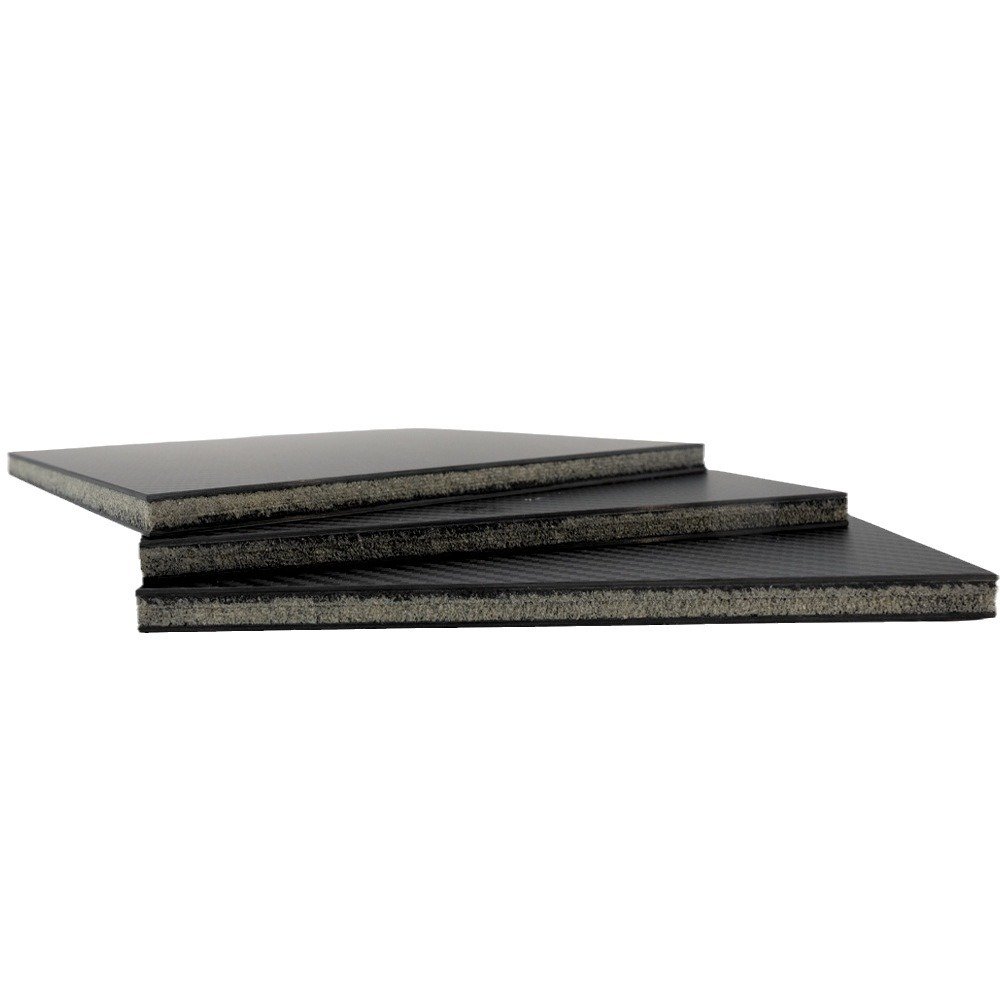

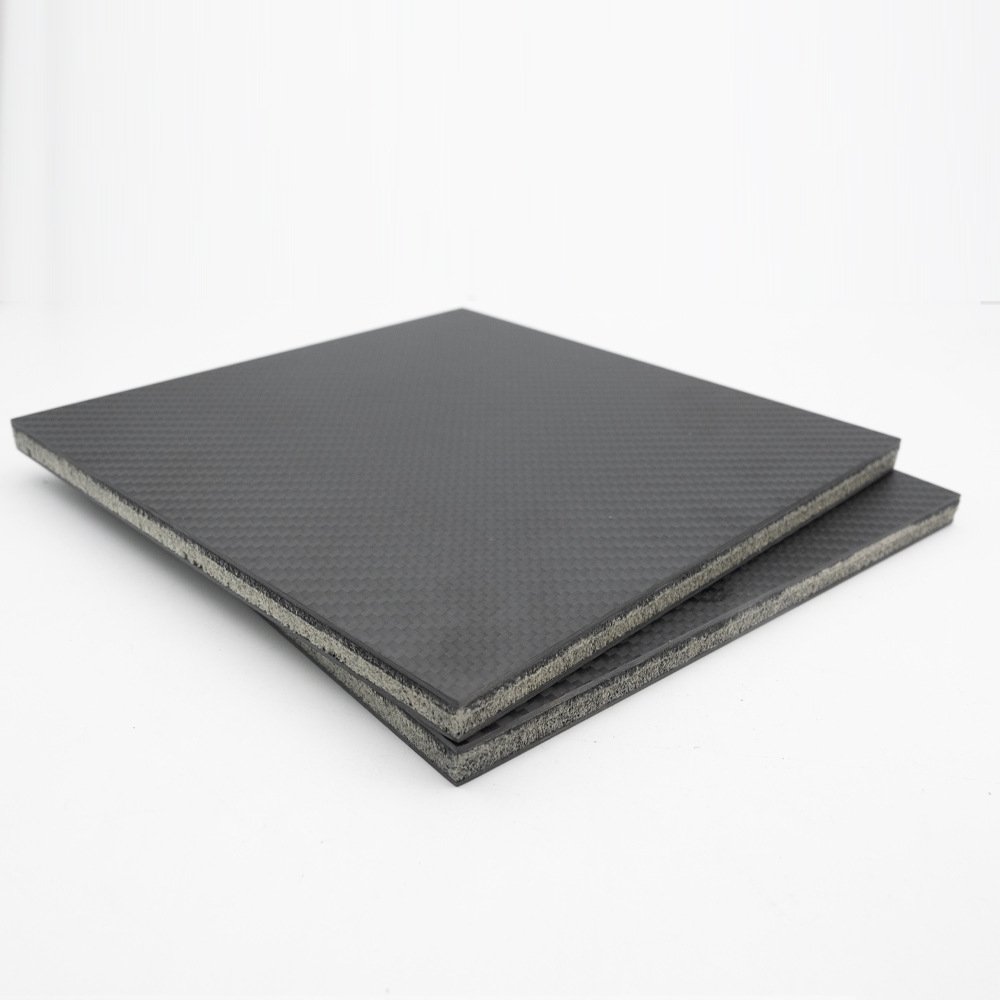

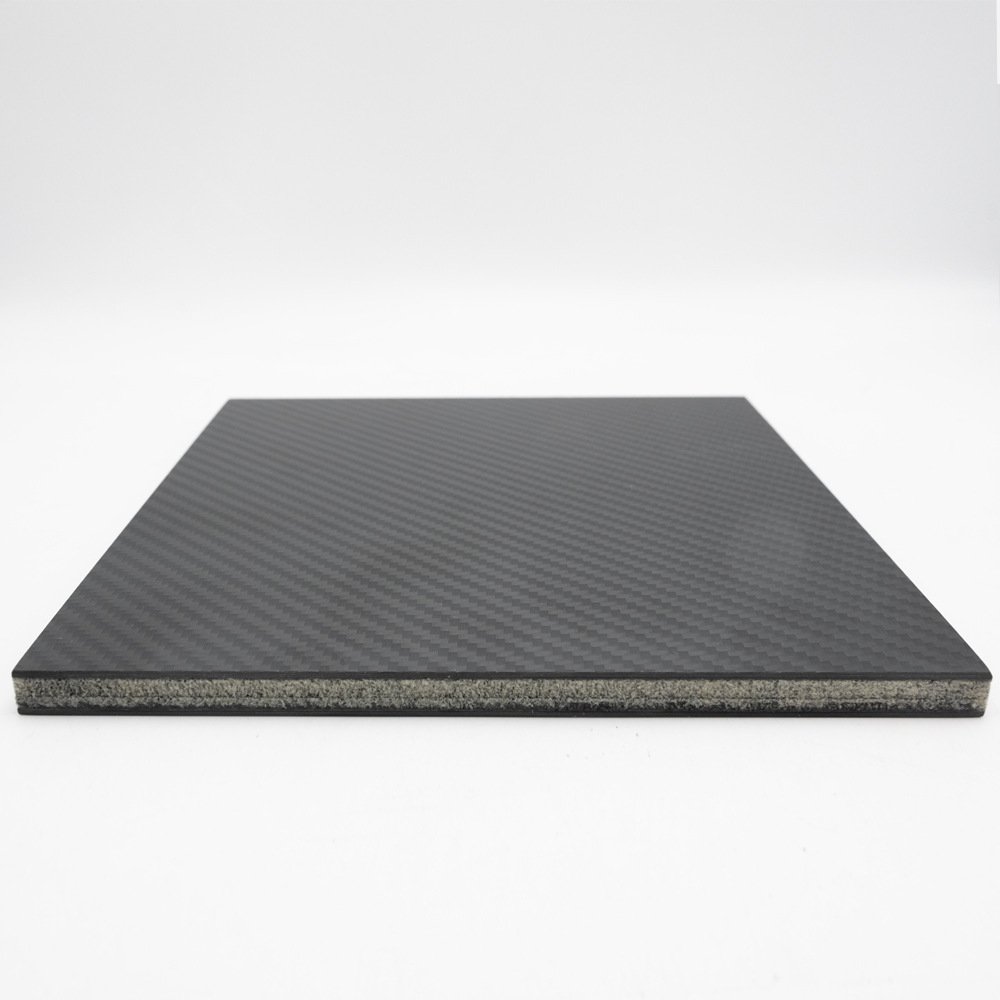

Carbon fiber sandwich panels are far more than simple layering; their core design philosophy lies in an ingenious sandwich composite structure:
Face Sheets (Skins): Made from high-strength carbon fiber prepreg (resin-impregnated fabric/unidirectional tape) cured under high temperature and pressure. The carbon fiber provides exceptional tensile and compressive strength and stiffness, crucial for bearing primary bending and in-plane loads.
Core Material: Sandwiched between the two carbon fiber face sheets, typically made from lightweight materials. Common core materials include:
Honeycomb Cores: Such as aluminum honeycomb, aramid paper honeycomb (Nomex), polypropylene honeycomb (PP). Renowned for their extremely high specific stiffness and excellent shear properties, especially prevalent in aerospace.
Foam Cores: Such as Polyvinyl Chloride (PVC), Polymethacrylimide (PMI), Polyetherimide (PEI), Polyurethane (PU) foams. Diverse types, easy to form complex curves, relatively lower cost, good sound insulation and thermal insulation properties.
Balsa Wood: A natural, renewable material offering excellent specific strength and compressive performance, particularly effective under high compressive loads, commonly found in marine and wind turbine blade applications.
Adhesive Bond: High-performance structural adhesive acts as the “lifeline” connecting the face sheets to the core. It ensures effective load transfer between them and prevents delamination failure.
The essence of this structure is “division of labor and collaboration”: The rigid face sheets resist bending stresses, while the lightweight core provides substantial thickness to dramatically increase the overall moment of inertia (I) of the section. This significantly enhances the carbon fiber sandwich panels bending stiffness (EI) with minimal weight penalty. Simultaneously, the core bears shear stresses, maintains the stability of the face sheets, and prevents buckling.
Carbon Fiber Sandwich Panels Technical Datasheet
| Category | Parameter | Typical Value/Range | Unit | Test Standard |
|---|---|---|---|---|
| Basic Parameters | Face Sheet Material | T700SC Carbon Fiber/Epoxy | – | – |
| Core Type | Nomex Honeycomb/PVC Foam/Balsa | – | – | |
| Total Thickness Range | 5 – 50 | mm | – | |
| Areal Density | 1.2 – 5.8 | kg/m² | ASTM C271 | |
| Mechanical Properties (5mm core + 0.5mm face sheets) | Flexural Stiffness (EI) | 120 – 180 | N·m² | ASTM D7249/D790 |
| Flexural Strength | 450 – 600 | MPa | ASTM D7249 | |
| Flatwise Compressive Strength | 8.5 – 12 | MPa | ASTM C365 | |
| Shear Strength | 4.0 – 6.5 | MPa | ASTM C273 | |
| Physical Properties | CTE (Coeff. Thermal Expansion) | 0.5 – 1.2 × 10⁻⁶ | /K | ASTM E831 |
| Thermal Conductivity | 0.8 – 1.5 | W/(m·K) | ASTM C518 | |
| Flame Rating | UL94 V-0 (Optional) | – | UL 94 | |
| Environmental Resistance | Salt Spray (1000h) | >95% Strength Retention | – | ASTM B117 |
| Damp Heat (85°C/85%RH) | >90% Strength Retention | – | ASTM D5229 | |
| Processing Specs | Standard Size | 1250 × 2500 | mm | Customizable |
| Max Service Temperature | 180 (Honeycomb)/80 (Foam) | °C | – |
Note: The values listed in the table are approximate and may vary depending on the specific product model and manufacturer. It is recommended to consult the product datasheet for accurate and detailed specifications.
Carbon Fiber Sandwich Panels Application
Why are carbon fiber sandwich panels highly sought after in cutting-edge industries? Their core advantages stem from their revolutionary physical and mechanical properties:
- Extreme Lightweighting with Unmatched Strength & Stiffness (High Specific Strength/Stiffness): In material science, high “specific strength” and “specific stiffness” (strength/stiffness per unit density) directly determine structural efficiency. Carbon fiber itself is famous for its excellent specific strength and stiffness (far superior to traditional metals like steel or aluminum). Adding ultra-lightweight core materials to replace the inefficient central mass zone maximizes this advantage. They achieve bending stiffness and load-bearing capacity equivalent to, or even surpassing, solid metal panels while being significantly lighter (typically reducing weight by 50%-80%). This is the ultimate goal in many application fields.
- Exceptional Fatigue Performance & Long-Term Reliability: In the sandwich structure, most loads are borne by the high-performance carbon fiber skins, which exhibit outstanding fatigue resistance. The core effectively inhibits the initiation and propagation of micro-cracks. The overall structure demonstrates excellent fatigue life under cyclic loading, far superior to many monolithic materials, ensuring long-term reliability for safety-critical components.
- Superior Impact Resistance & Energy Absorption: Carefully selected core materials (especially honeycomb and certain impact-resistant foams) undergo controlled deformation and controlled crushing under high-velocity impact (e.g., aircraft floors utilizing honeycomb structure to protect fuselage integrity). This effectively absorbs enormous impact energy. Simultaneously, the high-strength carbon fiber facesheets prevent penetration and significant fragmentation, markedly enhancing the structure’s crashworthiness and passive safety.
- Outstanding Corrosion Resistance & Chemical Stability: Carbon fiber, polymer matrices, and suitable cores (like honeycomb, foam) are inherently highly resistant to environmental factors such as moisture, salt spray, various chemicals, and UV radiation. They do not suffer from electrochemical or stress corrosion cracking like metals. This makes them indispensable in marine environments, chemical plants, medical devices, and special vehicles.
- Outstanding Damping Characteristics (Vibration & Noise Reduction): The sandwich core layer acts like an internal damping pad, effectively attenuating vibration waves, significantly reducing noise transmission and overall vibration levels. This enhances ride comfort and the operational precision of sensitive instruments.
- Superior Tunable Conductivity & Electromagnetic Shielding (EMI/RFI): By choosing core type (non-conductive foam vs. conductive honeycomb) and skin ply design (incorporating metal mesh or specific conductive carbon fiber plies), conductivity can be flexibly controlled from insulator to conductor. This effectively meets electromagnetic shielding needs (protecting internal equipment, minimizing external radiation) and achieves electromagnetic compatibility.
- Excellent Design Freedom & Structural Integration Potential: Prepreg layup processes afford exceptional shape adaptability, facilitating the creation of complex aerodynamic surfaces, aesthetic components, or highly integrated large one-piece structures. This reduces part count and assembly interfaces, boosting structural efficiency and performance.
- Excellent Thermal Insulation: The core layer (especially closed-cell foam) inherently possesses a relatively low thermal conductivity coefficient. Combined with carbon fiber skins, the formed sandwich structure boasts far superior thermal insulation capability (higher R-value) compared to traditional metals. This is crucial for controlling structural temperature gradients, preventing condensation, or protecting personnel and equipment from high-temperature sources.
| Property | Carbon Fiber Sandwich Panels | Aluminum Alloy (e.g., 6061-T6) | Steel (e.g., Q235) | Monolithic CFRP Laminate |
|---|---|---|---|---|
| Density (g/cm³) | 0.2 – 0.8 (Depends on Core Selection) | ~2.7 | ~7.85 | ~1.6 |
| Specific Strength | Extremely High (Far exceeds Al & Steel) | High | Low | High |
| Specific Stiffness | Extremely High (Especially bending) | High | Low | High |
| Fatigue Performance | Excellent (Core inhibits crack growth) | Good | Moderate (Prone to stress concentrations) | Good, but prone to delamination at edges/fasteners |
| Corrosion Resistance | Excellent (Matrix does not corrode) | Requires Protection | Requires Protection | Excellent |
| Thermal Insulation | Excellent (Core provides effective R-value) | Poor (High Conductivity) | Poor (High Conductivity) | Poor (High Conductivity) |
| Primary Applications | Aerospace parts, Racing bodies, Renewable energy structures, Sports equipment | General structures, Transportation | Buildings, Bridges | Thin parts needing max. lightweighting |
| Cost Considerations | High (Material & Manufacturing Cost) | Moderate | Low | High |
Carbon Fiber Sandwich Panels Advantages
Carbon fiber sandwich panels are revolutionizing traditional design paradigms across a wide spectrum:
- Aerospace Industry: Undoubtedly one of the largest application sectors. Used extensively for aircraft fuselage panels, fairings, engine nacelles, interior/exterior flooring, control surfaces (ailerons, rudders, flaps), cabin partitions, and overhead bin structures. Their widespread use in commercial airliners (e.g., A350/B787) significantly reduces fuel consumption, increases payload/range, and meets stringent fatigue and safety requirements.
- Rail Transportation & Automotive:
- From Formula 1 monocoques, supercar body structures, doors, and chassis components.
- To high-speed train nose cones, side panels, interior floors, and driver console frames.
- And new energy vehicle battery pack covers and chassis reinforcements.
- Leveraging extreme lightweighting to enhance acceleration, reduce energy consumption, and extend range. Simultaneously, their superior impact resistance (especially for battery system protection) and stiffness safeguard occupant safety.
- Marine & Energy Industries:
- Boat Building: High-performance hulls, decks, masts, and hardtops for high-end yachts, speedboats, and sailboats widely use CFRP sandwich structures to meet demanding requirements for lightness, strength, and seawater corrosion resistance.
- Wind Turbine Blades: The core load-bearing structures of large wind turbine blades (main spar caps, leading/trailing edge shear webs) extensively utilize carbon fiber (spar caps) and sandwich structures (webs, shells), essential for pursuing longer blades, higher efficiency, and lower cost.
- Hydrogen Storage & Transport: High-pressure hydrogen storage tanks (especially Type IV) rely on outer CFRP layers for primary pressure-bearing strength. Carbon fiber sandwich panels structures are key support components providing tank stability, protecting the inner liner, and achieving overall light weighting.
- Architecture, Facades & Special Facilities:
- Building Facades & Interiors: Used to create lightweight, high-strength, large-span facade cladding panels, interior wall panels, ceilings, skylights, and sunshades, offering modern aesthetics and excellent weather resistance. Large exhibition structures (booths, pavilions) heavily rely on their lightweight/strength characteristics.
- Medical Imaging Equipment: The protective enclosures and workstation structural components for large precision medical devices like CT and MRI scanners require non-magnetic/low-magnetic properties, high stiffness, and light weighting (for easier equipment movement and precise positioning).
- Sports Equipment & Industrial Machinery: High-end racing simulator frames, high-performance sailboat masts, racing shells, skis/surfboards (often with foam cores), robotic arms, and precision instrument base structures.
Carbon fiber sandwich panels production process
The exceptional performance of carbon fiber sandwich panels is not serendipitous; it stems from sophisticated materials science principles, structural design rules, and rigorous manufacturing processes:
Materials Science Fundamentals & Design Trade-offs:
- Facesheet Material Selection: As the primary load-bearing element, key properties include: in-plane modulus and strength (tensile/compressive), interlaminar shear strength (especially at the core interface), toughness (impact resistance & damage tolerance), and fiber volume fraction. The fiber ply orientation dictates the facesheet’s mechanical properties, allowing optimization for primary loading directions (e.g., quasi-isotropic layups or unidirectional tapes for directional enhancement).
- Core Selection Secrets: Core material performance hinges on its shear strength and modulus (determining sandwich resistance to wrinkling under bending), compressive strength (for normal loads), density, crush strength, and dimensional stability (especially regarding high-temperature resistance and low moisture absorption). Honeycomb cores generally excel in lightweighting/compression stiffness; some polymer foams (PET, SAN) offer advantages in impact resistance, complex shape formation, and cost; high-performance polymer foams (PMI) are indispensable for aerospace structures requiring high temperature resistance.
- Structural Efficiency & Lightweighting: The core objective of optimal sandwich design is achieving required stiffness and strength at minimal weight. Facesheet thickness needs optimization to ensure local bearing capacity (e.g., for local impact or indentation) and prevent local buckling failure. Core thickness is key to increasing bending stiffness (stiffness proportional to the cube of thickness). The core itself must possess sufficient density and strength to avoid failure under compression or shear loads (core crushing or shear failure) before the facesheets.
Core Manufacturing Processes (Ensuring Perfect Bonding):
- Prepreg Layup: The mainstream process for high-end aerospace applications. Pre-impregnated carbon fiber sheets are precisely laid onto a mold according to design requirements, often combined with pre-cured or co-bonded core materials. Offers process stability and guaranteed quality.
- Vacuum-Assisted Resin Infusion (VARI) or Resin Transfer Molding (RTM): More cost-effective processes, particularly suitable for complex structures or medium-to-large parts. Dry fiber fabrics and core are positioned in a sealed mold cavity and placed under vacuum. Resin (room temperature or low temperature cure) is then infused under vacuum assistance to saturate the reinforcements. Requires high-precision sealing and resin flow path design to ensure full impregnation of the facesheets and core interface, eliminating risk of dry spots and delamination.
- Autoclave Curing: Virtually mandatory for aerospace-grade structures. The part undergoes final cure in an environment of high temperature and pressure within an inert gas (usually nitrogen) atmosphere. This process significantly enhances the resin matrix cure degree (cross-linking density) and the fiber-matrix interface quality. For sandwich panels, the extreme autoclave pressure ensures excellent bond strength at the facesheet-core interface (via adhesive film or co-cured resin layer), which is paramount to the component’s overall performance and long-term reliability.
- Post-Processing & Joining: Post-cure processes include precision trimming (waterjet, 5-axis CNC), high-quality hole drilling (e.g., aerospace hole-to-hole tolerance control), surface finishing (painting/coating), and Non-Destructive Testing (NDT – e.g., ultrasonic, X-ray for detecting delamination, voids). Joining to other metallic or composite components typically involves Structural Adhesive Bonding complemented by Mechanical Fasteners (titanium or composite bolts/pins). Joint design must meticulously consider load transfer, stiffness matching, and avoidance of stress concentrations.
Advanced CAE-Driven Design:
The modern design process relies heavily on Computer-Aided Engineering (CAE). Finite Element Analysis (FEA) technology enables accurate predictive simulation of complex sandwich structure responses under various load cases (static, buckling, modal/dynamic, impact, fatigue). This profoundly optimizes material configuration, ply sequences, and joint design while drastically reducing costly physical testing iterations. In aerospace, designs must satisfy stringent airworthiness certification requirements (e.g., FAA/EASA Advisory Circulars), mandating explicit certification paths for every component’s design, material, manufacture, and inspection.Challenges & Countermeasures:
- Cost Optimization: Reducing high material costs (especially high-performance carbon fiber and resins) and shortening manufacturing cycles are perennial challenges. Key directions include manufacturing automation (Automated Fiber Placement/Tow Placement – AFP/ATL), developing more cost-effective large-tow carbon fibers, and optimizing VARI/RTM process efficiency.
- Damage Repair: Structural damage (e.g., severe impact causing facesheet fracture and core crush) typically requires specialized repair techniques and costly procedures (demanding specific tools, materials, and approval protocols). Assessment of the damage extent and designing an approved repair are critical.
- Hazards from Conductivity: High electrical conductivity presents a significant hazard. Galvanic corrosion risk must be rigorously addressed in large-scale applications. Carbon fiber’s conductivity can create strong galvanic cells when in contact with dissimilar metals (e.g., installing onto aluminum structures), accelerating corrosion of the adjacent metal in corrosive environments. Mitigation usually requires applying insulating layers (e.g., fiberglass barrier plies), using non-conductive or titanium fasteners, or implementing overall sealing/insulation strategies.
- Fire Performance Requirements: In safety-sensitive fields like aerospace, marine, and building, selected resin systems and cores must comply with stringent flammability, smoke, and toxicity standards (e.g., FAR 25.853, EN 45545). This necessitates using fire-retardant resins and high-temperature resistant cores (e.g., phenolic resins/modified high-temp epoxies with specialized foams or honeycombs), with rigorous validation of the entire material system’s fire behavior.
Conclusion
Carbon fiber sandwich panels are far more than a simple material substitute; they represent a systematic upgrade in lightweight design capability. Their unparalleled combination of physical and mechanical properties, coupled with flexible design potential, provides a robust performance foundation for aircraft flight, automotive energy revolution, upgrades in renewable energy equipment, innovation in building structures, and high-precision manufacturing. As raw material costs continue to improve, manufacturing efficiency increases, and intelligent design processes mature, the performance potential and commercial value of this innovative structural material will only grow.
Carbon fiber sandwich panels are lifting heavier technological missions with a lighter physical footprint, quietly reshaping competitive landscapes and driving the vigorous growth of a new advanced manufacturing revolution. They represent the pinnacle of material innovation, a crystallization of human intellect in the relentless pursuit of ultimate structural efficiency.
FAQ
Q: What is a carbon fiber sandwich structure?
A: A composite system consisting of carbon fiber skins (top/bottom layers) bonded to a lightweight core material (honeycomb, foam, or lattice) via adhesive film, achieving ultra-high stiffness-to-weight ratios.Q: What are its primary advantages?
A: 10× higher bending stiffness (vs. solid panels of equal weight) + 3× weight reduction (vs. metal structures) + 5× impact energy absorption (core crushing dissipates energy).- Skin thickness design principles?
A: Skins bear ~70% bending stress; core thickness must be ≥3× total skin thickness to prevent shear failure. - Q: Purpose of core pre-compaction?
A: Compress honeycomb cores by 10-20% before curing to prevent skin wrinkling due to lateral expansion during heating. - Impact energy absorption in racing crash structures?
A: Gradual honeycomb crushing (peak force controlled at 5-8 kN) absorbs 80% of impact energy.
