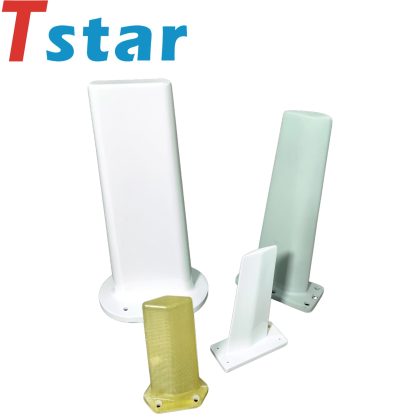

Fiberglass blade antenna cover
What is a fiberglass blade antenna cover？
1. What Does It Look Like?
Imagine an airplane wing or a smooth blade – the fiberglass blade antenna cover is a thin, streamlined enclosure designed to protect antennas while easily penetrating the air. It’s not designed for flight, but rather for shielding antennas on fast-moving vehicles like drones, warships, or radar trucks.
2. Why Do You Need It?
Antenna Armor: Like a phone case, it guards delicate antennas from rain, wind, and impacts.
Signal-Friendly: Metal blocks signals, but fiberglass lets Wi-Fi, 5G, and satellite signals pass through with almost no loss.
Aerodynamic: Its flat “blade” shape reduces wind drag, so it won’t slow down a drone at 120+ mph.
3. Why Fiberglass?
Light but Tough: The fiberglass blade antenna cover is 50% lighter than metal, yet as strong as aluminum—it won’t crack or warp.
Weatherproof: Resists saltwater corrosion, UV rays, and freezing temps (lasts 10+ years outdoors).
Fire-Safe:Fiberglass blade antenna cover will not contribute to flames if overheated (meets UL94 V-0 fire rating).
4. Where Is It Used?
Sky: Drone radars, helicopter comms.
Ground: Military radar vehicles, self-driving car lidar covers.
Sea: Naval satellite antennas, ocean sensors.
| Parameter | Value/Property |
|---|---|
| Composition | High-strength fiberglass (FRP) reinforced epoxy composite |
| RF Transparency | Excellent signal penetration (Dielectric constant: 3.5-4.2, Loss tangent <0.5dB) |
| Density | 1.8-2.2 g/cm³ (40% lighter than aluminum) |
| Tensile Strength | 500-750 MPa (close to steel) |
| Flexural Strength | 600-900 MPa (high resistance to deformation) |
| Elastic Modulus | 30-45 GPa (minimizes vibration interference) |
| Impact Strength | 18-25 kJ/m² (withstands crashes, hail, etc.) |
| Chemical Resistance | Resists acids, salt spray, fuels, and hydraulic oils (MIL-STD-810G compliant) |
| Environmental Resistance | Operates at -40℃~120℃, UV-resistant (10+ years outdoor life) |
| Flame Rating | UL94 V-0 (self-extinguishing, no dripping) |
| Machinability | CNC-cut, drillable, bondable for custom antenna integration |
| Applications | UAV radomes, naval comms, 5G base stations, military stealth designs |
Industry Trends of Fiberglass Blade Antenna Covers
1. Market Demand: From Niche to Necessity
Used to be military-only, now with 5G/drone boom, demand increased 10x in 5 years
Coastal wind farms are new hot spots – Guangdong alone bought 20,000 units last year
2. Tech Evolution: Like Smartphone Upgrades
Gen1 was just a “fiberglass box”, now Gen3 features:
√ Built-in heating (anti-icing)
√ Nano coating (saltwater proof)
√ Structural health monitoring (like car TPMS)
3. Material Revolution: The Hybrid Future
Old school: Pure fiberglass
New trend: Fiberglass+carbon fiber weave (15% lighter)
Lab stage: Graphene enhanced (30% less signal loss)
4. Price Trends: From Luxury to Affordable
2018: $1200/sqm (military only)
2023: Mass-produced versions at $180/sqm (civilian market ready)
5. 3-Year Crystal Ball
Drone delivery will drive demand for “foldable radomes”
6G may require ultra-low dielectric materials
Autonomous vehicle lidar covers could be next gold rush
Application of Fiberglass Blade Antenna Cover
1. Guardians in the Sky

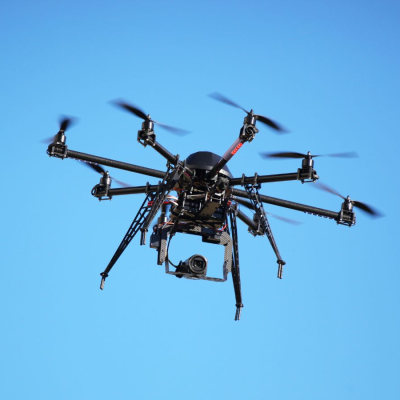

Drones: That flat “blade” on top of DJI’s latest agricultural drones? Protects mapping radars from pesticide corrosion while improving battery life
Helicopters: The long belly pod on military choppers houses terrain-following radar – fiberglass lets the radar “see” clearly
2. Invisible Shields on Wheels

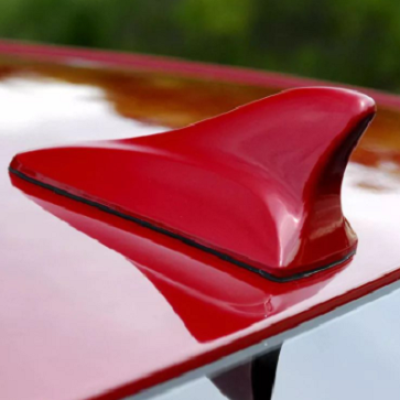

Self-driving cars: The “shark fin” on car roofs protecting lidar sensors without blocking signals
High-speed trains: Streamlined nose cones housing comms antennas that work flawlessly at 220mph
3. Ocean Warriors’ Armor
Warships: Angled panels on bridges are actually satellite comms covers surviving hurricane-force waves
Weather buoys: Keeps transmitting storm data even when waves crash over it
4. Signal Bodyguards Around You

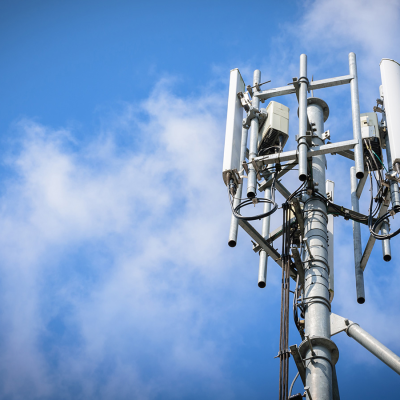

5G towers: Those white blade-shaped units on rooftops are increasingly fiberglass – lighter and rust-proof
Emergency comms trucks: Foldable covers protect antennas during transport, then stand firm at disaster sites
5. Delivery Drones’ “Eagle Eye”
The samurai-sword-like thing on delivery drones protects navigation antennas, ensuring your package survives mountain storms
6. Farmers’ “Digital Butler”
The “whiskers” on smart tractors keep IoT signals strong 24/7, giving crops Michelin-star-level care
7. Adventurers’ “SOS Button”
The roof “fin” on off-road vehicles hides emergency comms, works even in deserts after years of sandblasting

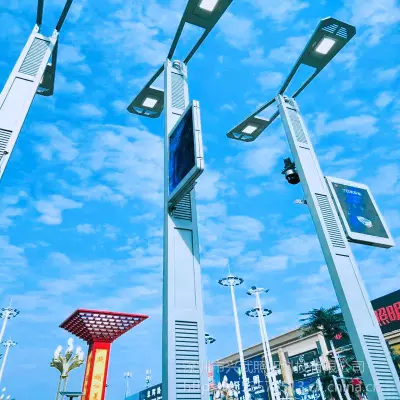

8. City’s “Signal Trees”
Those decorative leaves on smart streetlights? Many are incognito antenna covers boosting whole-block WiFi
9. Ocean Labs’ “Stethoscope”
Side “fins” on research ships protect sonar antennas, helping scientists hear undersea volcanoes’ heartbeat
Advantages of Fiberglass Blade Antenna Covers
1. Light as Feather, Strong as Steel
40% lighter than metal but just as tough
Real-world case: Extended drone flight time by 25 minutes
2. Signal’s Best Friend
Like a VIP lane for 5G signals (only 0.5dB loss)
Metal covers? They block signals like a brick wall (3dB loss)
3. Mother Nature’s Nightmare
Survival resume:
✓ 3 years in tropical sun – no fading
✓ -45℃ in Arctic – no cracks
✓ 5 years in salty air – no rust
4. Your Wallet’s BFF
Lasts 10-15 years (3x longer than metal)
Says “no” to expensive repainting
5. Firefighter Mode On
Self-extinguishing (no dangerous drips)
UL94 V-0 certified – the gold standard
6. Shape-Shifting Artist
Can morph into any aerodynamic shape
Current record: 3mm thin (almost invisible)
7. Tough Guy Certified
Survived baseball-sized hail in field tests
Repair techs say: “Tougher than smartphone screens”
8.Invisibility Cloak Mode
Special coating makes it nearly invisible to radar
Military stealth tech now protecting civilian drones
9. Self-Cleaning Wizardry
Lotus-leaf surface shrugs off dirt with rain
Tower crews report: “80% less cleaning needed”
10. Transformer DNA
Heated version: Auto-defrosts at -22°F (-30℃)
Foldable design: Compresses 70% for storage
Fiberglass blade antenna cover compared to ordinary steel
| Category | Fiberglass Blade Antenna Cover | Steel Enclosure |
|---|---|---|
| Weight | 1.8-2.2g/cm³ (70% lighter) | 7.8g/cm³ |
| Signal Loss | <0.5dB (almost no impact) | Complete blockage (requires openings) |
| Corrosion | 10+ years in marine environments | Starts rusting in 2 years |
| Maintenance | Nearly zero | Annual anti-rust treatment needed |
| Installation | 2 people, 30 minutes | Requires crane + half day |
| Temp Range | -40℃~120℃ operational | Brittle at -20℃/deforms at 60℃ |
| Lifespan | 10-15 years | 5-8 years |
| Flame Rating | UL94 V-0 (self-extinguishing) | Non-fire-retardant |
| Design Flex | Complex aerodynamics (as thin as 3mm) | Limited to basic shapes |
| Applications | 5G towers/drones/warships | Old comm towers/simple facilities |
Customization Details
Customize The Diameter
| Thickness(mm) | Thickness(inch) | Frequency Range | Typical Applications |
|---|---|---|---|
| 1.9 | 0.074 | 24-40GHz | Millimeter wave radomes |
| 3 | 0.118 | 18-26GHz | 5G small cell stations |
| 5 | 0.197 | 12-18GHz | UAV communication antennas |
| 8 | 0.315 | 8-12GHz | Vehicular radar systems |
| 12 | 0.472 | 6-8GHz | Shipborne communication |
| 16 | 0.63 | 4-6GHz | Weather radar covers |
| 20 | 0.787 | 2-4GHz | Satellite ground stations |
| 25.4 | 1 | 1-2GHz | Mobile communication base |
| 32 | 1.26 | 0.8-1GHz | Air traffic control radar |
| 45 | 1.771 | 0.4-0.8GHz | Early warning radar systems |
Customize the color
We can match any color based on standard color codes or provided samples.
Post-processing
We also provide various post-processing services for fiberglass blade antenna covers, including drafting, drilling, chamfering, polishing, slotting, etc.
Packaging and shipping
To ensure the product reaches our customers intact, we will apply impact-resistant cushioning material around vulnerable areas of the base board, providing protection during transit.
FAQ
Q1: How long does the Fiberglass blade antenna cover last?
A1: 10-15 years lifespan under normal use, 2-3x longer than metal covers.
Q2: Will rain affect signal transmission?
A2: Zero impact – hydrophobic coating sheds water fast, signal loss <0.5dB.
Q3: What’s the maximum wind resistance?
A3: Withstands Category 1 hurricanes (36.9m/s), tested to survive 60m/s gusts.
Q4: How to fix surface scratches?
A4: Self-healing nano-coating repairs minor scratches under sunlight.
Q5: Why cost more than plastic covers?
A5: Aerospace-grade composite offers 5x strength + flame retardancy = lower long-term cost.
Q6: Can it be transparent?
A6: Semi-transparent version available (70% light transmittance), adds 0.2dB signal loss.
