Fiberglass Channel
What is Fiberglass Channel
Fiberglass Channel is a structural profile made from Fiber Reinforced Plastic (FRP), featuring a channel-shaped cross-section. It is widely used in various engineering and industrial applications. The material is produced by combining glass fibers with a resin matrix (such as polyester, vinyl ester, or epoxy resin) through a pultrusion process. Known for its high strength, lightweight, corrosion resistance, and electrical insulation properties, Fiberglass Channel serves as an excellent alternative to traditional metal channel steel (e.g., steel or aluminum).
Composition and Manufacturing Process
The main components of fiberglass channel steel include:
Glass Fibers: Provide high strength and rigidity, typically using alkali-free or high-strength glass fibers.
Resin Matrix: Binds the fibers and protects them from environmental damage. Common resins include polyester, vinyl ester, and epoxy.
Additives: Such as fillers, flame retardants, or UV stabilizers, are used to enhance performance or meet specific requirements.
The manufacturing process primarily involves pultrusion, where continuous glass fiber strands are impregnated with resin and pulled through a heated mold to form a channel-shaped profile. This process ensures precise dimensions, smooth surfaces, and consistent performance.
| Performance Parameters | Fiberglass Channel |
|---|---|
| Composition | High-quality fiberglass reinforced with polyester or vinyl ester resin |
| Appearance | Smooth surface, customizable colors (typically gray, green, or yellow) |
| Density | 1.8-2.0 g/cm³ |
| Tensile Strength | 400-600 MPa |
| Flexural Strength | 600-800 MPa |
| Modulus of Elasticity | 30-35 GPa |
| Impact Strength | 15-25 kJ/m² |
| Chemical Resistance | Resistant to acids, alkalis, salts, and various chemicals, ideal for corrosive environments |
| Environmental Resistance | High resistance to moisture, UV radiation, and temperature variations (-40°C to 120°C) |
| Electrical Insulation | Non-conductive, suitable for electrical insulation applications |
| Machinability | Easy to cut, drill, shape, and bond for customization |
| Applications | Building structures, chemical equipment, marine engineering, electrical systems, cable trays, lightweight transportation components |
Industry trends of Fiberglass Channel
1. Growing Market Demand
As global demand for lightweight, corrosion-resistant, and high-strength materials rises, Fiberglass Channel(FRP channel steel) is seeing increased adoption across various industries. In construction, chemical processing, marine engineering, and electrical sectors, its superior corrosion resistance and electrical insulation properties make it a preferred alternative to traditional steel and aluminum. Rapid urbanization and increased infrastructure investment, particularly in developing countries, are driving the growth of the Fiberglass Channel market. Industry reports suggest that the global FRP composites market, including channel steel, is expected to grow at a compound annual growth rate (CAGR) of approximately 4-6% over the next 5-10 years.
2. Technological Advancements and Material Innovation
Advancements in pultrusion technology have improved the production efficiency and performance consistency of Fiberglass Channel. The development of new resins, such as high-performance epoxy and flame-retardant resins, has enhanced the material’s heat resistance and fire safety. Additionally, innovations in nanotechnology and fiber reinforcement have improved the strength-to-weight ratio, making Fiberglass Channel more competitive. The adoption of smart production lines has also reduced manufacturing costs, facilitating broader market penetration.
3. Environmental and Sustainability Drivers
Increasingly stringent environmental regulations are pushing industries toward sustainable materials. Fiberglass Channel, with its long lifespan, low maintenance requirements, and recyclability, aligns with green building and circular economy principles. Its corrosion resistance reduces the need for frequent replacements in harsh environments like marine and chemical settings, minimizing environmental impact. Some manufacturers are also exploring bio-based resins to further enhance the material’s eco-friendliness.
4. Regional Market Dynamics
Asia-Pacific: Rapid industrialization and infrastructure development in countries like China and India are key drivers of Fiberglass Channel demand. In China, government policies supporting renewable energy and environmental protection are boosting market growth.
North America and Europe: Demand for high-performance composites in these regions is driven by applications in electrical, transportation, and construction sectors, particularly in the retrofitting and upgrading of aging infrastructure.
Emerging Markets: The Middle East and Africa are seeing increased use of Fiberglass Channel in marine engineering and oil and gas industries due to its corrosion resistance.
5. Challenges and Opportunities
Despite its promising outlook, the Fiberglass Channel market faces challenges:
Cost Concerns: The initial cost of Fiberglass Channel is higher than traditional metal materials, which may limit its adoption in budget-constrained projects.
Technical Barriers: Producing high-quality Fiberglass Channel requires advanced equipment and expertise, posing challenges for smaller manufacturers.
Competitive Pressure: Competition from carbon fiber and other advanced composites may impact market share.
However, ongoing R&D investments and economies of scale are expected to reduce costs, while new applications, such as wind energy equipment and lightweight transportation components, present significant growth opportunities.
6. Future Outlook
The Fiberglass Channel industry is poised to benefit from the global push for lightweight, durable, and eco-friendly materials. Smart manufacturing, customized designs, and integration with IoT technologies (e.g., smart composites for structural health monitoring) will drive future growth. Additionally, the increasing adoption of renewable energy projects, such as wind turbines and marine energy systems, will further expand the use of Fiberglass Channel in these sectors.
Application of Fiberglass Channel
Fiberglass Channel, a high-performance structural material made of fiberglass-reinforced plastic (FRP), offers lightweight, high strength, corrosion resistance, and insulation properties. Key applications include:
1.Construction & Infrastructure
- Corrosion-Resistant Structures: Used for support frames, railings, and walkways in chemical plants or wastewater treatment facilities.
- Roof/Wall Supports: Lightweight trusses or reinforcement for walls, with excellent weather resistance.
- Electrical Insulation: Ideal for substations or power rooms requiring non-conductive materials.
2.Transportation
- Vehicle Manufacturing: Lightweight chassis or interior supports for trucks and rail vehicles.
- Marine Engineering: Resists seawater corrosion, used in deck brackets or cabin partitions.
3.Industrial Equipment
- Conveyor Systems: Corrosion-resistant guides in mining or food processing industries.
- Machine Guards: Protective covers or frames with chemical and electrical insulation.
4.Energy & Environment
Wind Power: Internal support structures for turbine blades.
Solar Mounts: UV-resistant and lightweight for photovoltaic panel installation.
5.Specialized Fields
Military/Aerospace: Components requiring high strength-to-weight ratios.
Electronics: Insulative racks or cable trays.
6.Chemical & Pharmaceutical
- Acid/Alkali-Resistant Supports: Ideal for equipment racks or pipe supports in corrosive environments.
- Cleanroom Framing: Used in sterile facilities, dust-free and compliant with GMP standards.
7.Power & Renewable Energy
- High-Voltage Insulation Ladders: Safe for electrical maintenance with no conductivity.
- Battery Racks: Flame-retardant and heat-resistant, suitable for energy storage systems.
8.Emergency & Disaster Relief
- Flood Barrier Frames: Quick to deploy, resistant to water immersion.
- Temporary Bridges: Lightweight yet sturdy for emergency access routes.
Key Advantages:
- 70% lighter than steel with comparable strength.
- Long service life, low maintenance, and cost-effective
Advantages Of Epoxy Transparent Fiberglass Rods
Fiberglass Channel (also known as Fiber Reinforced Plastic, or FRP channel steel) is a structural material made from a composite of glass fibers and resin, widely used in construction, industrial, marine engineering, and telecommunications due to its unique properties. Below is a detailed overview of its advantages:
Superior Corrosion Resistance:
Fiberglass Channel exhibits exceptional resistance to acids, alkalis, salts, and various chemicals, making it ideal for harsh environments such as chemical plants, wastewater treatment facilities, coastal areas, and marine applications. Unlike steel, it does not rust or corrode, eliminating the need for frequent anti-corrosion treatments or coatings, significantly extending its service life.
Lightweight with High Strength:
With a density only about 1/4 that of steel, Fiberglass Channel is approximately 70%-75% lighter, facilitating easier transportation and installation. Despite its low weight, it offers high tensile and bending strength, often surpassing steel in the longitudinal direction, making it suitable for load-bearing structures like bridges, ladder rails, and platform support beams.
Electrical Insulation and Non-Conductivity:
Fiberglass Channel is an electrically insulating material and does not conduct electricity, making it ideal for applications requiring no electrical conductivity, such as electrical facilities, telecommunications equipment, and cable support structures. Additionally, it is transparent to electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring uninterrupted signal transmission in environments like airports and hospitals.
Low Maintenance Costs:
Fiberglass Channel requires minimal maintenance, as it does not need regular painting or anti-corrosion treatments. Once installed, it demands little upkeep, saving labor and material costs. Over time, its lifecycle cost is significantly lower than that of steel, particularly in corrosive environments.
Weather Resistance and Anti-Aging:
Fiberglass Channel is highly resistant to ultraviolet (UV) rays, high and low temperatures, and humidity fluctuations. By incorporating UV-resistant coatings or using weather-resistant resins (e.g., vinyl ester resin), its anti-aging properties are further enhanced, making it suitable for long-term outdoor use.
Thermal Stability and Low Thermal Conductivity:
Fiberglass Channel has a much lower thermal conductivity than metals, providing excellent insulation in both hot and cold environments. For instance, epoxy resin-based fiberglass channels can withstand temperatures above 100°C, while standard resins remain stable below 60°C, making them suitable for chemical industries or steam pipelines.
Environmentally Friendly and Sustainable:
The production of Fiberglass Channel consumes less energy than steel, resulting in a smaller carbon footprint. It is also recyclable, aligning with sustainability goals. Unlike wood, it does not require environmentally harmful preservatives or repellents, reducing its ecological impact.
Flexible Customization:
Manufactured through the pultrusion process,Fiberglass Channel can be tailored to specific project requirements, including size, shape, color, and performance characteristics (e.g., fire resistance or high-temperature tolerance). For example, fire-retardant resins can be added to meet safety standards, or glass fiber content can be adjusted to enhance strength.
Ease of Processing and Installation:
Fiberglass Channel can be cut and shaped using standard tools (e.g., saws, drills) without requiring heavy machinery, simplifying the installation process. This reduces construction complexity and costs, making it ideal for projects requiring rapid installation, such as temporary platforms or emergency repairs.
Long Lifespan and Durability:
Fiberglass Channel has a lifespan of 75-150 years, far exceeding that of traditional steel, especially in corrosive environments. For example, in marine engineering, it is used for decking and hull structures, significantly reducing replacement frequency due to corrosion.
Comparison between Fiberglass Channel and ordinary steel
Fiberglass Channel and conventional steel are widely used structural materials in construction, industrial, and engineering applications. They differ significantly in performance, applications, and costs. Below is a detailed comparison:
1. Material Composition
- Fiberglass Channel: Composed of glass fibers and resin (e.g., polyester, vinyl ester, or epoxy) via pultrusion, it is a composite material. Fibers provide strength; resin ensures bonding and corrosion resistance.
- Conventional Steel: Primarily iron and carbon, with minor alloying elements (e.g., manganese, chromium) for enhanced properties, it is a metallic material.
2. Weight
- Fiberglass Channel: Density of 1.8-2.0 g/cm³, about 1/4 that of steel, weighing 70%-75% less. This eases transportation and installation, ideal for elevated or mobile projects.
- Conventional Steel: Density of 7.8 g/cm³, much heavier, requiring more labor and equipment, increasing complexity in large projects.
3. Strength
- Fiberglass Channel: High tensile and bending strength, with longitudinal strength of 400-600 MPa, sometimes exceeding steel. Transverse strength is lower, and shear resistance is inferior, requiring directional design consideration.
- Conventional Steel: Tensile strength of 250-550 MPa (depending on grade), excellent shear resistance, suitable for isotropic load-bearing structures, but strength diminishes with corrosion.
4. Corrosion Resistance
- Fiberglass Channel: Highly resistant to acids, alkalis, salts, and chemicals, it does not rust, ideal for chemical plants, wastewater facilities, and marine environments, requiring no protective coatings.
- Conventional Steel: Prone to corrosion in humid, acidic, or marine settings, necessitating regular painting, galvanizing, or coatings, raising maintenance costs.
5. Electrical Conductivity
- Fiberglass Channel: Non-conductive, electrically insulating, perfect for power facilities and telecommunications where conductivity must be avoided. Transparent to EMI and RFI, it does not disrupt signal transmission.
- Conventional Steel: Highly conductive, posing electrical risks, requiring insulation for electrical applications and potentially interfering with electromagnetic signals.
6. Thermal Conductivity
- Fiberglass Channel: Low thermal conductivity (0.3-0.5 W/m·K), excellent insulation for high- or low-temperature environments, such as chemical pipeline supports.
- Conventional Steel: High thermal conductivity (50 W/m·K), rapid heat transfer, often requiring insulation in extreme temperatures.
7. Weather Resistance and Anti-Aging
- Fiberglass Channel: Resists UV rays, temperature extremes, and humidity with UV coatings or weather-resistant resins (e.g., vinyl ester), suitable for long-term outdoor use with excellent anti-aging properties.
- Conventional Steel: Susceptible to oxidation and UV degradation outdoors, with coatings peeling over time, requiring regular maintenance to prevent aging.
8. Maintenance Costs
- Fiberglass Channel: Virtually maintenance-free, no need for painting or anti-corrosion treatments, low long-term costs, especially in harsh environments.
- Conventional Steel: Requires regular inspection, rust removal, repainting, or part replacement, with high maintenance costs, particularly in corrosive settings.
9. Service Life
- Fiberglass Channel: Lifespan of 75-150 years under proper conditions, excelling in corrosive environments, reducing replacement frequency.
- Conventional Steel: Lifespan of 20-50 years, depending on maintenance and environment, significantly shorter in corrosive conditions.
10. Processing and Installation
- Fiberglass Channel: Processed with standard tools (e.g., saws, drills), simple installation, no heavy machinery needed, ideal for rapid construction.
- Conventional Steel: Requires specialized equipment (e.g., welders, cutters), complex installation, with on-site welding involving safety and precision concerns.
11. Environmental Impact
- Fiberglass Channel: Lower production energy use, smaller carbon footprint, recyclable, no harmful preservatives needed, environmentally friendly.
- Conventional Steel: High energy consumption and carbon emissions in production, recycling requires extra processing, and coatings may contain harmful chemicals.
12. Cost
- Fiberglass Channel: Higher initial cost (20%-50% more than steel), but low maintenance and long lifespan often result in lower lifecycle costs.
- Conventional Steel: Lower initial cost, but high maintenance and replacement costs may exceed fiberglass over time.
13. Applications
- Fiberglass Channel: Ideal for corrosive environments, non-conductive needs, and lightweight projects, such as marine engineering, chemical plants, telecommunications, and lightweight bridges.
- Conventional Steel: Suited for high-strength, high-rigidity applications, like high-rise buildings, heavy machinery, and load-bearing bridges, but needs protection in corrosive environments.
14. Customization
- Fiberglass Channel: Pultrusion allows flexible customization of size, shape, color, and properties (e.g., fire resistance, high-temperature tolerance) to meet specific needs.
- Conventional Steel: Limited customization, typically standard sizes, with custom shapes requiring costly additional processing.
Conclusion
Fiberglass Channel surpasses conventional steel in corrosion resistance, lightweight design, non-conductivity, low maintenance, and environmental friendliness, making it ideal for corrosive and electrically sensitive environments. Conventional steel excels in strength, rigidity, and initial cost, fitting high-load and standardized projects. Material choice should consider project environment, budget, maintenance capacity, and expected lifespan. For instance, fiberglass is preferred for marine engineering, while steel suits heavy structural applications.
Fiberglass Channel Customization Details
| Customization Item | Description | Options | Applications | Remarks |
|---|---|---|---|---|
| Dimensions | Customizable length, width, height, and wall thickness based on project needs. | – Length: 1-12 m (cuttable) – Width: 50-300 mm – Height: 20-150 mm – Wall Thickness: 3-12 mm | – Bridge supports – Platform frameworks – Ladder rails – Cable trays | Dimensions should be designed based on load and span requirements to avoid over- or under-design. |
| Shape | Cross-sectional shape can be customized, typically U-shaped, with special sections available. | – Standard U-shaped channel – Non-standard shapes (e.g., L-shape, T-shape, custom sections) | – Pipeline supports – Building frameworks – Marine deck structures | Non-standard shapes may increase production costs; consult manufacturer in advance. |
| Resin Type | Resin determines corrosion resistance, temperature tolerance, and strength; chosen based on environment. | – Polyester Resin: Cost-effective, general use – Vinyl Ester Resin: High corrosion resistance – Epoxy Resin: High temperature, high strength | – Chemical plants (vinyl ester) – High-temperature pipelines (epoxy) – General construction (polyester) | Resin choice impacts cost and performance; select based on chemical and temperature conditions. |
| Glass Fiber Content | Fiber content affects strength and rigidity, adjustable based on load requirements. | – Low content (30%-50%): Lightweight applications – High content (50%-70%): High-strength needs | – Lightweight platforms – Heavy-duty bridges – Support beams | Higher fiber content increases strength but may reduce flexibility; balance design needs. |
| Color | Customizable colors for identification or aesthetic purposes, achieved via resin tinting or coatings. | – Standard colors: Gray, green, yellow – Custom colors: Per RAL color chart | – Safety markings (yellow) – Aesthetic buildings (custom) – Industrial use (gray) | Custom colors may add slight cost; consider UV stability for outdoor use. |
| Surface Treatment | Surface can include anti-slip coatings, UV protection, or smooth finishes for durability or safety. | – Anti-slip surface: Sanded or textured – UV protective coating: Extends outdoor life – Smooth surface: Easy to clean | – Pedestrian platforms (anti-slip) – Outdoor structures (UV protection) – Indoor decor (smooth) | Anti-slip and UV coatings enhance safety and lifespan, suitable for specific environments. |
| Fire Resistance | Flame-retardant additives or resins can be incorporated to meet fire safety standards. | – Flame-retardant grades: UL94 V-0, ASTM E84 Class A – Non-flame-retardant | – Building interiors – Electrical facilities – Public areas | Fire resistance must comply with local regulations; may increase costs. |
| Temperature Resistance | Resin and fiber formulations tailored for thermal stability based on operating environment. | – Standard: -40°C to 60°C – High-temperature: 60°C to 120°C (epoxy) – Ultra-high temperature: Custom | – Chemical industries (high temp) – Cold storage (low temp) – General environments | Special formulations needed for extreme temperatures; pre-test performance. |
| Connection Methods | Pre-drilled holes or custom connectors provided for ease of on-site installation. | – Pre-drilled holes: Standard or custom spacing – Connectors: FRP bolts, stainless steel bolts – Adhesive: Specialized glue | – Quick-install platforms – Modular structures – Temporary projects | Connection methods affect installation speed and structural stability; align with design. |
| Load Capacity | Load-bearing capacity customized by adjusting wall thickness and fiber content. | – Light load: 0.5-2 kN/m² – Medium load: 2-5 kN/m² – Heavy load: 5-10 kN/m² | – Pedestrian walkways (light) – Equipment platforms (medium) – Bridges (heavy) | Detailed load data required for safe design. |
| Production Process | Pultrusion process ensures consistency and precision, with adjustable parameters. | – Standard pultrusion – Custom mold forming | – Mass production – Special shape requirements | Custom molds may increase initial costs but are suitable for large-scale production. |
| Certifications and Standards | Customizable to meet international or industry standards for quality and compliance. | – ISO 9001 – ASTM D3918 (FRP channel standard) – EN 13706 (European standard) | – International projects – Building code requirements | Confirm target market’s standard requirements in advance. |
Remarks
- Customization Process: Clients must provide detailed project requirements (e.g., environmental conditions, load, dimensions), and manufacturers design and provide samples for confirmation.
- Production Timeline: Standard dimensions typically take 7-15 days; non-standard customizations may require 20-30 days, depending on complexity.
- Cost Factors: Custom shapes, specialized resins, flame-retardant, or UV coatings increase costs; balance performance and budget.
- Application Advice: Collaborate with professional engineers to ensure customized channel steel meets structural and safety requirements, especially in high-load or corrosive environments.
Customize the color
We can match any color based on standard color codes or provided samples.

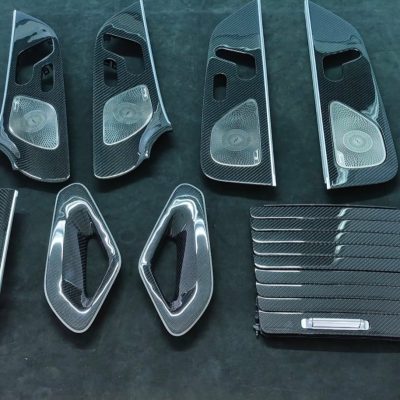

![{"data":{"pictureId":"11af413ead014c5584a48c42f51c5267","appversion":"12.7.0","stickerId":"","filterId":"","infoStickerId":"","imageEffectId":"","playId":"","activityName":"","os":"android","product":"retouch","originAppId":"2515","exportType":"","editType":"","alias":"","enterFrom":"enter_launch","capability_key":["edit"],"capability_extra_v2":{"edit":[{"panel":"composition"}]},"effect_type":"tool","effect_id":"edit"},"source_type":"douyin_beauty_me"}](https://www.cfrp-tstar.com/wp-content/uploads/elementor/thumbs/31-r9k2fwmpcacbrgigij5oe8dccbs2va2wseaehygr6o.jpg "31")

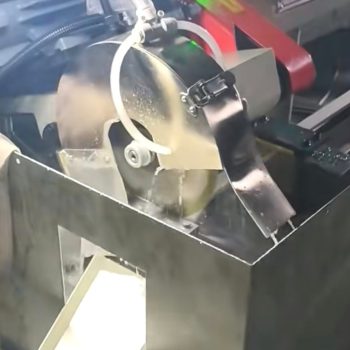

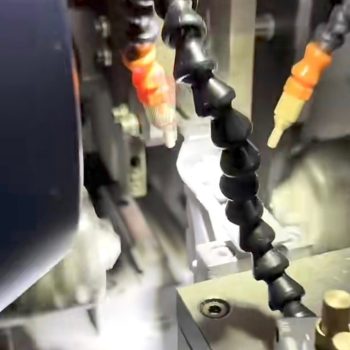

Post-processing
We also provide various post-processing services for fiberglass channel steel, including cutting, drilling, chamfering, notching, etc.
Packaging and shipping
To ensure the product reaches our customers intact, we will apply impact-resistant cushioning material around vulnerable areas of the base board, providing protection during transit.
FAQ
Q1. How difficult is it to process and install fiberglass channel steel?
A1. Fiberglass Channel is easy to process and install, cuttable with standard tools (e.g., saws, drills) without heavy machinery. It supports pre-drilled holes or specialized connectors (e.g., FRP bolts), ideal for rapid construction. Compared to conventional steel, it reduces installation costs and complexity, especially for temporary or modular projects.
Q2. Is Fiberglass Channel more expensive than conventional steel?
A2: Fiberglass Channel has a 20%-50% higher initial cost than conventional steel, but its lack of maintenance, anti-corrosion needs, and long lifespan (75-150 years) often result in lower lifecycle costs. In corrosive environments, its long-term cost advantage is significant. Selection should balance initial budget with long-term maintenance costs.
Q3: Will fiberglass channel degrade outdoors over time?
A3: High-quality fiberglass channels with UV inhibitors can withstand sunlight, rain, and temperature swings for 20+ years. Protective gel coatings further enhance durability.
