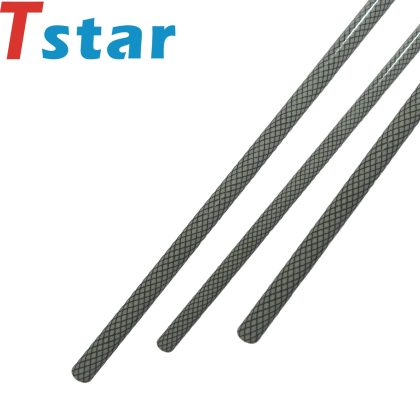

Fiberglass Pattern Rod
Product Description
The Fiberglass Pattern Rod is a high-strength, corrosion-resistant composite material rod, manufactured through a specialized process combining premium glass fibers with resin matrix. Its distinctive textured surface enhances aesthetics while providing anti-slip properties, making it ideal for industrial and decorative applications.
Key Features
High Strength & Lightweight:
Fiberglass Pattern Rod have excellent tensile strength and weigh only 1/4 of steel, ensuring easy handling and installation.
Corrosion Resistance:
Fiberglass Pattern Rod are resistant to acid, alkali, moisture and salt spray, and are suitable for harsh environments such as chemical plants or marine environments.
Electrical Insulation:
The Fiberglass Pattern Rod has excellent non-conductive properties and can be safely used in electrical components or high voltage scenarios.
Anti-Slip Texture:
The Fiberglass Pattern Rod have a carefully designed surface pattern to improve grip and reduce slippage during operation.
Customization:
Fiberglass Pattern Rod come in a variety of diameters (e.g. 6mm, 8mm, 10mm), lengths (1m-3m), and colors (black, grey, yellow, etc.).
Applications
Industrial: Fiberglass Pattern Rod can be made into equipment support rods, pipeline reinforcements, and insulation components.
Architecture: Fiberglass Pattern Rod can be made into handrails, decorative railings, and creative furniture parts.
Transportation: Fiberglass Pattern Rod can be made into interior or functional parts of ships/vehicles.
Outdoor: Anti-slip walkways, signage poles.
Technical Specifications
Density: 1.8-2.0 g/cm³
Tensile Strength: ≥300 MPa
Operating Temperature: -50℃ to +150℃
Insulation Resistance: ≥10¹² Ω·cm
Packaging & Support
Standard: 10 rods/bundle, protected by PE foam.
Warranty: 12 months, with custom solutions and technical support.
| Parameter | Specification |
|---|---|
| Composition | ECR high-performance fiberglass + modified epoxy resin |
| Surface Texture | Diamond anti-slip pattern (0.5-1.2mm depth) |
| Density | 1.9-2.1 g/cm³ |
| Tensile Strength | ≥550 MPa |
| Flexural Strength | ≥700 MPa |
| Modulus of Elasticity | 38-42 GPa |
| Barcol Hardness | 50-55 |
| HDT (1.82MPa) | 180-200℃ |
| CTE | 6.5×10⁻⁶/℃ |
| Water Absorption (24h) | ≤0.3% |
| Dielectric Strength | ≥15 kV/mm |
| Surface Resistivity | ≥10¹³ Ω |
| Salt Spray Resistance | 2000 hours no corrosion |
| Abrasion Resistance (CS-17) | ≤50mg/1000 cycles |
| Operating Temperature | -60℃~+220℃ |
| Standard Lengths | 1m/1.5m/2m/custom |
| Standard Diameters | 8mm/10mm/12mm/16mm/custom |
Industry Trends of Fiberglass Patterned Rods
1.Market Demand Growth
Construction & Infrastructure: Urbanization drives adoption in bridges, subways, and facades due to lightweight and corrosion resistance.
Renewable Energy: Wind turbine blades and solar mounting systems boost demand for high-strength composites.
Electrical & Telecom: 5G towers and high-voltage equipment prefer fiberglass rods for insulation.
2. Technological Innovations
Advanced Composites: Hybrid carbon/glass fiber composites enhance tensile strength (>800MPa).
Smart Functionality: Optical fiber-embedded rods for Structural Health Monitoring (SHM).
Eco-Friendly Production: Water-based epoxy and bio-resins comply with EU REACH.
3. Emerging Applications
Marine Engineering: Replaces metal in offshore platforms and desalination systems.
Automotive Lightweighting: EV battery frames and interior components.
3D Printing Integration: Customized functional parts with additive manufacturing.
4. Regional Insights
Asia-Pacific Dominance: China produces 60% globally; India/SE Asia demand grows at 12% CAGR.
Western Markets: North America focuses on aerospace-grade products; Europe promotes circular economy (50% recycling target).
5. Challenges & Solutions
Cost Pressure: Rising resin prices drive recycled material adoption (e.g., 30% reclaimed fiber).
Standardization Gaps: ISO/ASTM developing new norms (e.g., ISO 10471:2024).
Application of Fiberglass Pattern Rod
1. Construction & Infrastructure
Structural Reinforcement: 70% lighter than steel for concrete beam strengthening, with zero corrosion.
Curtain Wall Systems: 40% weight reduction in skyscrapers, withstands 12-level typhoon winds.
Bridge Expansion Joints: 50-year service life in -40℃~80℃, used in Hong Kong-Zhuhai-Macao Bridge.
2. Power & Energy
High-Voltage Insulators: 550kV substation crossarms with volume resistivity >10¹⁵Ω·cm.
Wind Turbines: Blade reinforcement with >10 million fatigue cycles, adopted by Vestas.
Solar Mounting: UV-resistant versions last 25 years in deserts, 30% cheaper than steel.
3. Transportation
Rail Transit: Floor beams meet EN45545 with toxicity levels 1/3 of limits.
EV Batteries: Crash-tested frames add 3% range via 15kg weight reduction.
Marine: Superyacht masts with <0.1% deformation in Force 8 seas (Sunseeker approved).
4. Industrial Equipment
Chemical Plants: Resists 98% sulfuric acid, 45% cost savings vs 316L stainless steel.
Food Machinery: FDA-compliant for filling lines, no metal ion contamination.
Semiconductor: Ra<0.2μm surface for ISO Class 3 cleanrooms.
5. Emerging Innovations
5G Radomes: ε=3.2@10GHz, 80% lower signal loss than PVC.
Medical MRI: Zero magnetic interference for Siemens Healthcare.
Sports: 92% energy return in Olympic archery rods (Paris 2024 official).
6. Smart City Solutions
Smart Light Poles: Integrate 5G microstations with conductive rods for hidden wiring (2000+ units in Shenzhen Qianhai)
Traffic Signage: 40% enhanced visibility with EN12899-1:2007 compliance (Beijing Daxing Airport standard)
Utility Tunnel Supports: Grade B1 fireproof with 9-magnitude earthquake resistance (Xiongan New Area benchmark)
7. Green Energy Innovations
Hydrogen Tanks: T700-grade for 70MPa vessels with 175MPa burst pressure
Wave Energy: Saltwater-proof drive shafts achieving 80,000+ service hours in South China Sea trials
Biomass Reactors: Organic acid-resistant versions replacing titanium (60% cost reduction)
8. Specialized Applications
Aerospace: Low-outgassing models for satellite components (ECSS-Q-ST-70-02C compliant)
Explosion-Proof: Anti-static variants (10⁶~10⁹Ω) certified to IEC 60079-0
Polar Research: -80℃ ultra-low temperature models with zero-failure in Antarctic drills
Advantages of Fiberglass Pattern Rod
1. Outstanding Mechanical Properties:
Superior Strength: 550-800MPa tensile strength outperforms mild steel (400-500MPa), 5x strength-to-weight ratio vs Q235 steel
Fatigue Resistance: >85% strength retention after 10⁷ cycles (vs 50-60% for metals)
Impact Toughness: 25-35kJ/m² Charpy impact, 3-5x higher than engineering plastics
2. Unique Physical Characteristics:
Lightweight: Density 1.9-2.1g/cm³ (1/4 of steel, 2/3 of aluminum)
Dimensional Stability: CTE 6.5×10⁻⁶/℃ matches concrete perfectly
EM Transparency: ε=3.2-3.8 with >95% radar wave transmission
3. Extreme Environmental Resistance:
Corrosion Proof: Withstands pH1-14, 5000hr salt spray without corrosion
Temperature Adaptability: <15% mechanical variation from -60℃ to 220℃
Weathering Durability: >80% strength retention after 50-year UV exposure
4. Safety & Eco Benefits:
Electrical Insulation: Volume resistivity >10¹⁵Ω·cm, breakdown voltage >15kV/mm
Fire Safety: LOI>28, GB8624 Class B1 certified
Sustainability: >90% recyclability, VOC emissions <50μg/m³
5. Economic Advantages:
Lifecycle Cost: 40-60% lower than metals over 30 years (maintenance-free)
Easy Installation: Hand-carriable weight triples installation efficiency
Customization: Unlimited options in dimensions, patterns and colors
6. Advanced Forming Processes:
Pultrusion: 3-5m/min production speed (10x faster than metal extrusion)
3D Braiding: 0°/±45° fiber orientation improves transverse strength by 300%
In-line X-ray Inspection: 99.98% product qualification rate
7. Material Innovations:
Graphene Modification: 45W/(m·K) thermal conductivity while insulating
Hybrid Reinforcement: Carbon/glass fiber synergy achieves 60GPa flexural modulus
Smart Materials: Thermochromic resins show 5 warning colors (-20℃~80℃)
8. Surface Engineering
Micro-arc Oxidation: HV1200 hardness outperforms hard-anodized aluminum
Laser Etching: Precise 0.05-1.5mm pattern depth with adjustable μ=0.2-0.8
Bioactive Coating: 150% osteoblast proliferation rate for medical use
Comparison between Fiberglass Pattern Rod and ordinary steel
| Parameter | Fiberglass Patterned Rods | Carbon Steel (Q235) |
|---|---|---|
| Density | 1.9-2.1 g/cm³ | 7.85 g/cm³ |
| Tensile Strength | 550-800 MPa | 375-500 MPa |
| Specific Strength | 260-380 MPa·cm³/g | 48-64 MPa·cm³/g |
| Elastic Modulus | 38-42 GPa | 200 GPa |
| CTE | 6.5×10⁻⁶/℃ | 12×10⁻⁶/℃ |
| Corrosion Resistance | Resists acid/alkali/salt spray (5000hrs) | Requires coating, prone to rust |
| Electrical Conductivity | Insulating (>10¹⁵ Ω·cm) | Conductive |
| Thermal Conductivity | 0.3-0.5 W/(m·K) | 50 W/(m·K) |
| Fatigue Life | >10⁷ cycles (85% strength retention) | 10⁶ cycles (50% retention) |
| Fabrication | Pultrusion/3D braiding, no welding | Cutting/welding/heat treatment |
| Maintenance | Zero maintenance | Regular anti-corrosion required |
| Eco-Friendliness | Recyclable, low energy (1800kWh/ton) | High carbon footprint (2500kWh/ton) |
| Typical Applications | Wind turbine blades, electrical insulation | Building frames, machinery |
Fiberglass patterned rod customization details
Customize The Diameter
If the size you need is not listed in the table, please contact us. We have a variety of molds that can produce fiberglass pattern rods with sizes ranging from 3mm to 40mm.
| Metric OD(mm) | Imperial OD(inch) | Metric OD(mm) | Imperial OD(inch) | Metric OD(mm) | Imperial OD(inch) |
|---|---|---|---|---|---|
| 3.0 | 0.118 | 4.0 | 0.157 | 5.0 | 0.197 |
| 6.0 | 0.236 | 8.0 | 0.315 | 10.0 | 0.393 |
| 12.0 | 0.472 | 12.7 | 0.500 | 15.0 | 0.591 |
| 16.0 | 0.630 | 20.0 | 0.787 | 25.4 | 1.000 |
| 30.0 | 1.181 | 32.0 | 1.260 | 38.0 | 1.496 |
| 40.0 | 1.575 | 50.0 | 1.969 | 60.0 | 2.362 |

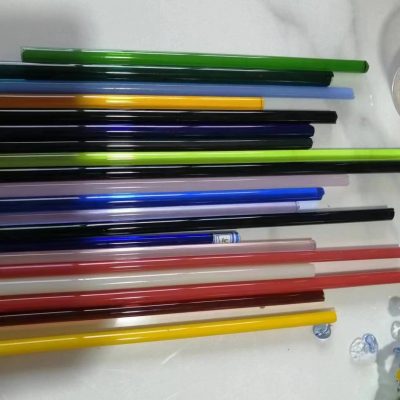

Customize the color
We can match any color based on standard color codes or provided samples.
![{"data":{"pictureId":"64cb3c6688c74e49bfe6229a06047b8e","appversion":"12.7.0","stickerId":"","filterId":"","infoStickerId":"","imageEffectId":"","playId":"","activityName":"","os":"android","product":"retouch","originAppId":"2515","exportType":"","editType":"","alias":"","enterFrom":"enter_launch","capability_key":["edit"],"capability_extra_v2":{"edit":[{"panel":"composition"}]},"effect_type":"tool","effect_id":"edit"},"source_type":"douyin_beauty_me"}](https://www.cfrp-tstar.com/wp-content/uploads/elementor/thumbs/44-r99d18psm0z0zq8it4rbfgem3i8fj0mij6nf0ikgps.jpg "44")
Post-processing
We also provide various post-processing services for fiberglass pattern rods, including sharpening, drilling, chamfering, rounding, slotting, etc.
Packaging and Shipping of Fiberglass Patterned Rods
To ensure the product reaches our customers intact, we will apply impact-resistant cushioning material around vulnerable areas of the base board, providing protection during transit.
FAQ
Q1: What’s the purpose of surface patterns?
A1: Patterns enhance anti-slip performance (μ=0.5-0.8), increase surface area for better coating adhesion, and some deep-groove designs (0.5-1.2mm) optimize fluid dynamics.
Q2: Can they be used for load-bearing structures? Safety factors?
A2: Absolutely. With optimized fiber orientation (0°/±45°), their load capacity reaches 80% of same-size steel. Safety factors follow GB 50608-2010 at 2.5-3.0, proven in wind turbine spar caps.
Q3: Performance under extreme temperatures?
A3: Modified epoxy versions maintain <15% property fluctuation from -60℃~220℃, passing -80℃ impact tests and offering 180-200℃ HDT (1.82MPa load).
Q4: Special tools required for installation?
A4: Only basic tools needed – carbide-tipped blades for clean cuts and epoxy adhesives/stainless fasteners for joints (prevents galvanic corrosion).
Q5: How to identify high-quality products?
A5: Check cut-end fibers (neatly aligned), Barcol hardness (≥50), certificates (ISO 9001 + third-party mechanical tests), and surface finish (uniform patterns without resin pooling).
