Fiberglass reinforcement
What is fiberglass reinforcement
Fiberglass reinforcement is a reinforcing material composed of glass fibers and a polymer matrix, used to replace traditional steel bars in concrete structures. It combines high-strength glass fibers with a resin matrix to form a composite bar with excellent mechanical properties. GFRP, typically with round or shaped cross-sections, is widely used in civil engineering, bridges, tunnels, marine engineering, and other fields, particularly where corrosion resistance or lightweighting are required.
Its production process involves drawing glass fiber bundles, impregnating them with resin, and curing them into a finished product. Its main components are glass fiber and resin. Depending on the application environment and performance requirements, different glass fiber and resin formulations can be selected to optimize mechanical properties and durability.
| Performance Parameters | Fiberglass reinforcement |
|---|---|
| Composition | High-strength fiberglass reinforced with epoxy resin |
| Density | 1.8-2.1 g/cm³ |
| Tensile Strength | 600-1200 MPa |
| Flexural Strength | 700-1000 MPa |
| Modulus of Elasticity | 40-50 GPa |
| Impact Strength | 25-35 kJ/m² |
| Chemical Resistance | Resistant to acids, alkalis, salts, and certain solvents |
| Environmental Resistance | Resistant to moisture, UV radiation, and extreme temperature variations (-40°C to 80°C) |
| Electrical Insulation | Non-conductive, excellent electrical insulation properties |
| Machinability | Easy to cut, drill, shape, and bond for customized applications |
| Applications | Marine engineering, bridges, tunnels, chemical plants, wastewater treatment facilities, etc. |
Industry trends of fiberglass reinforcement
fiberglass reinforcement materials are a high-performance composite material that is becoming increasingly popular in civil engineering, construction, and infrastructure. Their lightweight, corrosion-resistant, and high-strength properties make them an ideal alternative to traditional steel bars, particularly in corrosive environments such as offshore engineering, bridges, tunnels, and chemical plants. According to market research, the global market is projected to grow from approximately $9.79 billion in 2025 to $13.93 billion by 2033, at a compound annual growth rate of 4.5%. GFRP rebar materials will play a significant role in this market.
Key Trends
Push for Green Building and Sustainability
With global emphasis on environmental protection and sustainable development, GFRP rebar is favored for its recyclability and low maintenance costs. Policies promoting energy-efficient and green buildings, such as the EU’s Energy Performance of Buildings Directive, have boosted GFRP adoption in energy-saving structures and low-carbon infrastructure. Applications in insulation systems, wall reinforcement, and bridge retrofitting are on the rise.Growing Infrastructure Investments
Worldwide, particularly in Asia-Pacific (e.g., China, India) and North America, governments and private sectors are increasing investments in infrastructure projects, including roads, bridges, and high-speed rail. Fiberglass reinforcement’s durability and lightweight properties drive its demand in these projects. China’s construction industry, valued at CNY 31.2 trillion in 2022, is expected to expand further, fueling GFRP demand.Technological Innovation and Process Improvements
Advances in manufacturing technologies, such as automated pultrusion processes and new resin formulations, have reduced production costs and enhanced product strength and consistency. For instance, nanotechnology has improved GFRP’s fire resistance and thermal insulation, meeting stricter building codes.Lightweighting Needs in Automotive and Transportation
While GFRP rebar is primarily used in construction, its lightweight applications in transportation are driving related technological advancements. The demand for lightweight composites in automotive and aerospace industries indirectly benefits GFRP development for construction applications.Regional Market Expansion
Asia-Pacific is the fastest-growing market for GFRP rebar, driven by rapid urbanization and infrastructure development. China, the world’s largest fiberglass producer, accounted for over 50% of global market share in 2022. North America and Europe maintain steady growth due to demand for sustainable materials and retrofitting of aging infrastructure.
Challenges
Higher Initial Costs
Although GFRP rebar offers lower long-term maintenance costs, its initial procurement cost is higher than traditional steel, which may limit adoption in budget-constrained projects.Recycling and Environmental Concerns
GFRP recycling technologies are not yet fully mature, and certain production processes may have environmental impacts. Future development of eco-friendly recycling methods and green production processes is necessary.Market Competition and Standardization
The GFRP rebar industry is highly concentrated, with major players like China Jushi and Owens Corning dominating. New entrants face technological and brand barriers. Additionally, varying international standards may hinder global market expansion.
Future Outlook
The fiberglass reinforcement industry has promising prospects, particularly in sustainable construction, infrastructure upgrades, and lightweight applications. Technological innovation, policy support, and globalization will drive sustained growth. Companies should focus on green production, market diversification, and collaboration with downstream industries to seize opportunities and address challenges.
Application of fiberglass reinforcement
Fiberglass reinforcement is a composite material made of glass fibers and a resin matrix, widely used in civil engineering as an alternative to traditional steel rebar. Due to its high strength, corrosion resistance, and lightweight properties, fiberglass reinforcement performs exceptionally well in various challenging environments and engineering projects. This section provides a detailed overview of the applications, advantages, limitations, and real-world case studies of fiberglass reinforcement.
Main Application Areas
1. Marine Engineering
Fiberglass reinforcement excels in marine environments due to its corrosion resistance. It is widely used in ports, docks, seawalls, and offshore structures. For instance, in coastal bridges and docks, Fiberglass reinforcement effectively resists chloride ion corrosion from seawater, significantly extending the service life of structures.
2. Bridge and Highway Engineering
In bridge and highway construction,Fiberglass reinforcement is employed in bridge decks, guardrails, and pavement structures. Particularly in cold regions, its resistance to de-icing salts makes it an ideal choice. For example, several bridge projects in Canada have successfully used Fiberglass reinforcement to replace steel, reducing maintenance costs.
3. Underground Engineering
In tunnels, subways, and wastewater treatment facilities, fiberglass reinforcement is favored for its non-magnetic and chemically resistant properties. For instance, in subway tunnels, fiberglass reinforcement avoids electromagnetic interference, making it suitable for environments with sensitive electronic equipment.
4. Structural Repair and Strengthening
fiberglass reinforcement is widely used in the repair and strengthening of aging structures. Its lightweight and high-strength properties make it ideal for reinforcing concrete beams, columns, and slabs while reducing structural weight. In earthquake-prone areas, fiberglass reinforcement is used to enhance seismic performance.
5. Structures in Harsh Environments
In highly corrosive environments, such as chemical plants and wastewater treatment facilities, fiberglass reinforcement replaces steel to prevent corrosion-induced structural failure. Additionally, its non-magnetic properties make it suitable for electromagnetically sensitive areas, such as hospitals with MRI equipment.
Real-World Case Studies
Bridge Projects in Quebec, Canada: In certain highway bridges in Quebec, fiberglass reinforcement was used in bridge decks to combat corrosion from de-icing salts. After 10 years of operation, inspections showed no significant degradation, confirming stable structural performance.
Wastewater Treatment Plant in Dubai: A wastewater treatment plant in Dubai utilized fiberglass reinforcement for water storage tanks, successfully resisting high salinity and chemical corrosion, significantly extending the facility’s service life.
Coastal Docks in China: In some coastal dock projects in China, fiberglass reinforcement was used in concrete pile foundations, reducing the impact of seawater corrosion on the structures.
Future Development
With advancements in materials science, the production cost of fiberglass reinforcement is expected to decrease, broadening its application scope. In the future, fiberglass reinforcement may play a larger role in smart buildings, renewable energy facilities (e.g., wind turbine towers), and extreme environments (e.g., polar engineering). The development of standardized codes and specifications will further promote its global adoption.
Conclusion
fiberglass reinforcement, as a high-performance construction material, offers significant advantages in corrosion resistance, lightweight strength, and non-magnetic properties. Despite challenges related to cost and design, its successful application in marine engineering, bridge construction, underground projects, and structural repairs highlights its potential as a key material in the future of civil engineering.
Advantages of fiberglass reinforcement
1. Superior Corrosion Resistance:
Fiberglass reinforcement exhibits exceptional resistance to acids, alkalis, and salts, making it ideal for highly corrosive environments such as marine settings, chemical plants, and wastewater treatment facilities.Unlike steel rebar, fiberglass reinforcement will not rust when exposed to chloride ions or other chemicals. significantly extending the service life of structures. For example, in coastal bridges and docks, Fiberglass reinforcement reduces maintenance costs caused by seawater corrosion.
2. Lightweight and High Strength:
fiberglass reinforcement weighs only one-quarter of traditional steel bars, yet boasts two to three times the tensile strength. This combination of high strength and low density offers significant advantages in projects where structural weight reduction is crucial. For example, in high-rise buildings or long-span bridges, fiberglass reinforcement can reduce foundation loads, thereby improving the overall project’s economic efficiency.
3. Non-Magnetic and Non-Conductive:
Fiberglass rebar is non-conductive and non-magnetic, making it particularly suitable for environments sensitive to electromagnetic interference, such as hospital MRI rooms, radar stations, or subway tunnels. This property prevents interference with delicate equipment and improves structural safety in complex environments.
4. Easy construction:
Due to its lightweight nature, fiberglass reinforcement is easier to transport and install, significantly reducing construction costs and time. Furthermore, it can be cut and shaped as needed, eliminating the need for specialized heavy equipment, making it suitable for projects of all sizes. For example, on remote construction sites, the lightweight nature of fiberglass reinforcement can reduce logistics costs.
5. Low Thermal Expansion:
Fiberglass reinforcement has a coefficient of thermal expansion very close to that of concrete, minimizing internal stress and cracking caused by temperature fluctuations. Compared to steel, fiberglass reinforcement performs better in extreme temperature conditions, thereby improving the overall durability of the structure.
6. Environmental Friendliness:
The production and use of fiberglass reinforcement have a lower environmental impact compared to steel. Its manufacturing process consumes less energy, and its corrosion resistance reduces the need for material replacements, minimizing resource waste. Additionally, the long service life of fiberglass reinforcement in certain projects contributes to reduced long-term environmental impact.
7. Design Flexibility:
Fiberglass reinforcement can be customized in various shapes and sizes to meet specific project requirements, offering greater design flexibility. For instance, in structures with complex geometries, fiberglass reinforcement can be pre-formed to meet design specifications without incurring additional processing costs.
Significance in Practical Applications:
The advantages of fiberglass reinforcement make it highly effective in various engineering projects. For example, in bridge projects in Canada, fiberglass reinforcement has been widely adopted for its resistance to de-icing salt corrosion, significantly reducing maintenance costs. In underground engineering, its non-magnetic properties ensure the proper functioning of electronic equipment. Additionally, in earthquake-prone regions, the lightweight and high-strength characteristics of fiberglass reinforcement enhance the seismic performance of buildings.
Comparison between fiberglass reinforcement and ordinary steel
| Property | Fiberglass Rebar (GFRP) | Steel Rebar |
|---|---|---|
| Material Composition | Glass Fiber Reinforced Polymer (resin + fibers) | Iron-carbon alloy (may include Mn, Cr) |
| Density | 1.8-2.1 g/cm³ (lighter) | 7.85 g/cm³ (heavier) |
| Tensile Strength | 500-1000 MPa (high strength) | 400-550 MPa (standard) |
| Elastic Modulus | 40-60 GPa (lower, more flexible) | 200 GPa (higher, more rigid) |
| Corrosion Resistance | Excellent (resists chloride, acids, alkalis) | Poor (requires coating/concrete protection) |
| Electrical/Magnetic | Non-conductive, non-magnetic (EMI-sensitive) | Conductive, magnetic |
| Thermal Expansion | Similar to concrete (reduces thermal stress) | Higher than concrete (may crack) |
| Construction | Requires special tools, cannot be welded | Weldable, bendable |
| Cost | Higher (material cost, but low maintenance) | Lower (material cost, higher maintenance) |
| Applications | Coastal structures, chemical plants, MRI labs, bridge repair | Traditional buildings, high-rises, general concrete |
Customized details of fiberglass reinforcement
Customize The Diameter
| OD (mm) | OD (inch) | Typical Applications |
|---|---|---|
| 4 | 0.157 | Thin-layer reinforcement, lightweight concrete |
| 6 | 0.236 | Small precast elements, drainage |
| 8 | 0.315 | Sidewalk slabs, retaining walls |
| 10 | 0.393 | Floor slabs, bridge parapets |
| 12 | 0.472 | Foundation, corrosive environments |
| 12.7 | 0.5 | Standard rebar replacement (corrosion-resistant) |
| 16 | 0.63 | Industrial floors, marine structures |
| 20 | 0.787 | Large beams, dock construction |
| 25.4 | 1 | Equivalent to 1-inch steel (non-corrosive) |
| 32 | 1.26 | High-strength bridges, chemical plants |
| 40 | 1.57 | Heavy infrastructure, nuclear facilities |

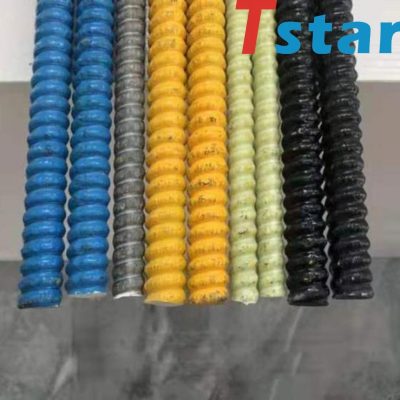

Customize the color
We can match any color based on standard color codes or provided samples.
Post-processing
We also offer various post-processing services for fiberglass rods, including sharpening, drilling, chamfering, rounding, slot cutting and more.
Packaging and shipping
To ensure the product reaches our customers intact, we will apply impact-resistant cushioning material around vulnerable areas of the base board, providing protection during transit.
FAQ
Q1: What is the reinforcement of fiberglass?
A1: The reinforcement in fiberglass is glass fibers embedded in a polymer resin . Together, they create a strong, lightweight composite material used in construction, aerospace, and marine applications.
Q2: Is fiberglass reinforcement as good as steel rebar?
A2: No, fiberglass reinforcement is not “better” than steel—it’s different. It excels in corrosion resistance and lightweight applications but lacks the strength, stiffness, and weldability of steel. The choice depends on the project’s needs.
Q3: Can fiberglass be as strong as steel?
A3: No, fiberglass is not as strong as steel in all aspects.
Tensile strength: Some high-grade fiberglass can match steel (500–1000 MPa vs. 400–550 MPa).
Stiffness: Fiberglass is much less rigid (elastic modulus ~40–60 GPa vs. steel’s 200 GPa).
Overall: Steel is stronger for structural loads, while fiberglass wins in corrosion resistance and lightness.
Q4: Does fiberglass reinforcement meet code?
A4: Yes, but only in specific applications.Fiberglass reinforcement is approved by major international building codes for non-structural or corrosion-prone environments, but it is not a full replacement for steel in load-bearing structures
