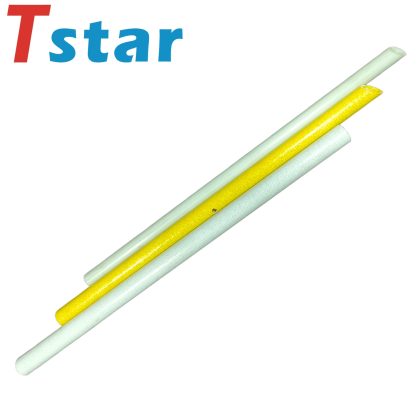

Fiberglass surface veil tube
Product Description of Fiberglass surface veil tube
The fiberglass surface veil tube is a high-performance composite material product, manufactured using premium Fiberglass surface veil as the primary raw material through advanced production processes such as filament winding or pultrusion. This product boasts excellent physical properties and chemical stability, making it widely applicable in industries such as chemical processing, power, marine, construction, and environmental protection. It is particularly suitable for use as pipelines, storage tanks, cable protection sleeves, and more.
Product Features
High Strength and Lightweight: The Fiberglass surface veil tube offers a high strength-to-weight ratio, being significantly lighter than traditional metal pipes, facilitating easier transportation and installation while maintaining excellent mechanical strength.
Superior Corrosion Resistance: Fiberglass surface veil tubes have excellent resistance to acids, alkalis, salts and other chemicals, making them very suitable for corrosive environments and extending their service life.
Excellent Insulation Properties: Fiberglass surface veil tubes have excellent electrical insulation properties and are suitable for cable protection or electrical equipment applications.
Smooth Surface and Easy Processing: The surface mat process ensures smooth inner and outer walls, reducing fluid resistance and enabling easy post-processing and customization.
High-Temperature and Fire Resistance: The product maintains stable performance in elevated temperature environments and offers excellent flame-retardant properties, meeting various industry safety standards.
Eco-Friendly and Sustainable: Made from environmentally friendly materials, the production process generates low pollution, and the product is recyclable, aligning with modern green manufacturing principles.
| Performance Parameter | Fiberglass surface veil tube |
|---|---|
| Composition | High-quality glass fiber surface mat reinforced with epoxy or polyester resin |
| Appearance | Smooth surface, flat inner and outer walls, customizable colors (e.g., gray, green) |
| Density | 1.8-2.2 g/cm³ |
| Tensile Strength | 300-600 MPa |
| Flexural Strength | 400-700 MPa |
| Modulus of Elasticity | 20-35 GPa |
| Impact Strength | 15-25 kJ/m² |
| Chemical Resistance | Resistant to acids, alkalis, salts, and various chemicals, suitable for corrosive environments |
| Environmental Resistance | Resistant to moisture, UV radiation, and temperature variations from -40°C to 150°C |
| Electrical Insulation | Excellent non-conductive properties, ideal for cable protection sleeves and electrical equipment |
| Machinability | Easy to cut, drill, connect, and customize |
| Applications | Chemical pipelines, power cable protection, construction drainage, marine engineering, environmental equipment |
Industry Trends of Fiberglass surface veil tubes
1. Push for Green Manufacturing and Sustainability
Growing Environmental Demand: The global emphasis on low-carbon and eco-friendly materials has boosted the popularity of fiberglass surface veil tubes due to their recyclability and low-pollution production processes. Policies in many countries encourage the use of green composite materials, driving the industry toward sustainability.
Circular Economy: Manufacturers are exploring methods to recycle glass fibers and resins to reduce waste and production costs. Advances in recycling technology will further enhance the competitiveness of surface veil tubes.
2. Technological Innovation and Performance Enhancement
Advanced Manufacturing Processes: Improvements in filament winding, pultrusion, and automated production technologies have enhanced the quality consistency and efficiency of surface veil tubes. For instance, automated winding techniques enable the production of precision pipes for complex engineering needs.
New Resins and Additives: The development of high-performance epoxy and polyester resins has improved the tubes’ resistance to high temperatures, corrosion, and mechanical strength. The use of additives like nanomaterials further optimizes product performance.
Smart Manufacturing: The integration of Industry 4.0 technologies, such as the Internet of Things (IoT) and data analytics, is streamlining production processes, reducing defect rates, and enabling customized manufacturing.
3. Expanding Market Demand and Applications
Chemical and Energy Sectors: The global energy transition has increased the use of surface veil tubes in renewable energy (e.g., wind and solar equipment) and traditional energy (e.g., oil and gas pipelines), particularly for corrosion-resistant pipelines.
Infrastructure Development: Rapid urbanization has driven demand for drainage, sewage treatment, and water supply pipelines, with surface veil tubes becoming a preferred choice due to their durability and low maintenance costs.
Marine and Aerospace: The marine and aerospace industries’ need for lightweight, corrosion-resistant materials has led to growing applications of surface veil tubes in ship pipelines and structural components.
4. Regional Market Growth
Asia-Pacific Dominance: Countries like China and India, driven by rapid industrialization and infrastructure investments, are the largest markets for surface veil tubes. China’s significant demand in the chemical and power sectors has spurred local production capacity.
North America and Europe: These regions prioritize high-performance and eco-friendly materials, particularly in areas with stringent environmental regulations, where surface veil tubes are favored for their green properties.
Emerging Markets: Increased infrastructure investments in the Middle East, Africa, and Latin America present new growth opportunities for surface veil tubes.
5. Competition and Cost Optimization
Price Competitiveness: As production scales up and raw material costs decrease, surface veil tubes offer better cost-effectiveness, giving them an edge over traditional metal pipes.
Localized Production: To reduce transportation costs and meet regional demands, manufacturers are establishing localized production facilities in target markets.
Driving Factors
Policy Support: Government incentives, such as subsidies and tax benefits for eco-friendly materials and infrastructure projects, are boosting demand for surface veil tubes.
Technological Advancements: Ongoing developments in composite material technologies are reducing production costs and improving product performance.
Global Urbanization and Industrialization: Rapid urbanization and industrial growth are increasing the need for high-performance piping systems.
Challenges
Raw Material Price Volatility: Fluctuations in the prices of glass fibers and resins, influenced by global supply chains, may increase production costs.
Technical Barriers: The production of high-performance surface veil tubes requires advanced equipment and expertise, posing challenges for small and medium-sized enterprises entering the market.
Limited Market Awareness: In some emerging markets, traditional materials like steel and PVC still dominate, requiring increased education and promotion for surface veil tubes.
Future Outlook
Smart and Customized Solutions: As demand for tailored products grows, manufacturers will increasingly adopt smart manufacturing technologies to provide personalized solutions.
New Application Areas: Surface veil tubes hold significant potential in emerging fields such as hydrogen energy pipelines, 5G communication infrastructure, and smart city construction.
Global Supply Chain Optimization: By enhancing supply chain management and regional cooperation, the industry will better address raw material fluctuations and market demand changes.
Conclusion
The fiberglass surface veil tube industry is in a phase of rapid development, driven by green manufacturing, technological innovation, and growing market demand. Looking ahead, the adoption of new technologies and market expansion will position surface veil tubes as a key component in the composite materials market. Companies should leverage policy support and technological advancements to optimize production and expand market presence, ensuring a competitive edge.
Applications of fiberglass surface veil tubes
1.Corrosion-Resistant Pipe Lining
Fiberglass surface veil tubes are widely used as liners in chemical, petroleum, and wastewater pipelines, offering excellent resistance to acids, alkalis, and organic solvents, thereby extending service life.
2.Storage Tank Barrier Layer
In FRP (Fiberglass Reinforced Plastic) tanks, the surface veil tube acts as an inner anti-permeation layer, preventing chemical leakage while providing a smooth interior to minimize residue buildup.
3.Flue Gas Desulfurization (FGD) Systems
Used in power plants and industrial exhaust systems, the tube lines FGD scrubbers and ducts, resisting high temperatures and acidic gases (e.g., SO₂) for enhanced durability.
4.Marine & Offshore Engineering
Applied in ship hulls, seawater pipelines, and offshore structures for corrosion protection against saltwater and biofouling (e.g., barnacles, algae).

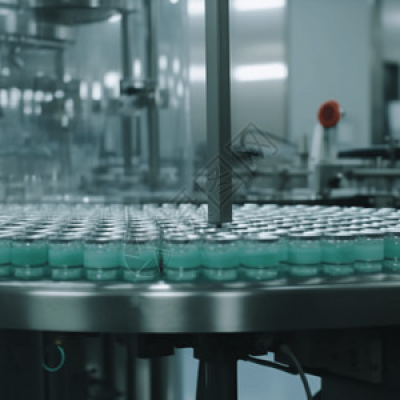

5.Food & Pharmaceutical Industry
FDA/EU-compliant food-grade surface veil tubes are used in liquid food, drug, and purified water pipelines, ensuring contamination-free and easy-to-clean surfaces.

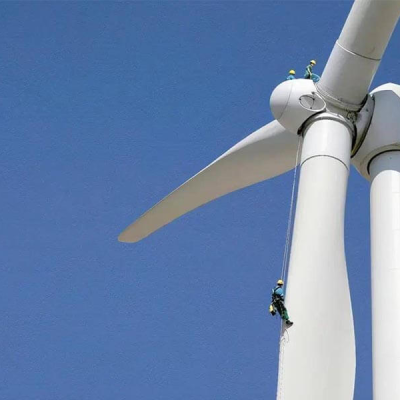

6.Wind Turbine Blade Protection
As an outer reinforcement layer in wind turbine blades, the tube improves UV and erosion resistance, prolonging blade lifespan.
7.Electrical Insulation Sleeving
With superior dielectric properties, it serves as insulation for high-voltage cable conduits and electronic components, preventing arcing and leakage.

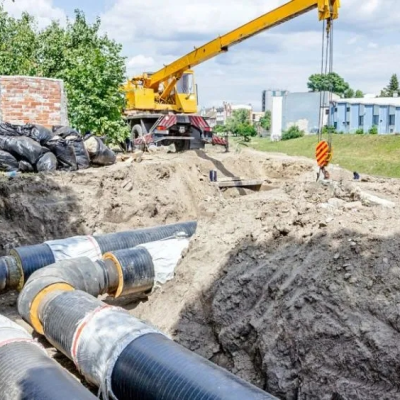

8.Construction & Infrastructure
Used in building drainage pipes, underground cable conduits, and bridge anti-corrosion coatings, offering weather resistance in extreme temperatures and humid environments.
Advantages of fiberglass surface veil tube
Superior Corrosion Resistance:
Fiberglass surface veil tubes exhibit exceptional resistance to acids, alkalis, salts, and organic solvents, making them ideal for chemical, petroleum, and wastewater applications with longer service life than metal pipes.
Lightweight yet High Strength:
With only 1/4 the density of steel but comparable strength, they are easy to transport and install while maintaining high pressure resistance for demanding pipeline systems.
Smooth Surface & Low Fluid Friction:
The ultra-smooth interior minimizes fluid resistance, prevents scaling and deposits, and meets strict hygiene standards for food, pharmaceutical, and potable water industries.
High Temperature & Weather Resistance:
Stable in temperatures from -50°C to 200°C, with UV resistance for outdoor, marine, and extreme climate applications.
Excellent Insulation Properties:
Non-conductive and thermally insulating, suitable for electrical and electronic uses (e.g., cable conduits, transformer barriers).
Eco-Friendly & Customizable:
Recyclable material with low production emissions; customizable in thickness, diameter, and resin type (e.g., epoxy, vinyl ester) for diverse engineering needs.
Excellent Dimensional Stability:
Fiberglass surface veil tubes maintain stable physical dimensions despite temperature fluctuations and humidity variations, unlike metals that expand/contract. This makes them ideal for precision industrial piping systems requiring long-term sealing and structural integrity.
Superior Fatigue Resistance：
Under cyclic pressure loads or mechanical vibrations (e.g., in chemical process piping, marine systems), these tubes demonstrate exceptional fatigue resistance, resisting crack propagation and structural degradation for extended service life.
Customization Details
| Parameter | Fiberglass Surface Veil Tube | Carbon Steel |
|---|---|---|
| Density | 1.8-2.1 g/cm³ (Lightweight) | 7.8 g/cm³ (Heavy) |
| Tensile Strength | 300-600 MPa (Comparable to steel) | 400-550 MPa |
| Corrosion Resistance | Excellent (Resists acids, alkalis, salts) | Poor (Requires coatings) |
| Thermal Conductivity | Low (0.3-0.5 W/m·K, Insulating) | High (50 W/m·K, Conductive) |
| Thermal Expansion | Low (1.5-2.0×10⁻⁶/°C, Dimensionally stable) | High (12×10⁻⁶/°C, Prone to deformation) |
| Temperature Range | -50°C to 200°C (Stable) | -40°C to 500°C (Oxidizes at high temps) |
| Installation | No welding (Flanged/socket connections) | Welding/bolting required |
| Maintenance Cost | Low (Corrosion-resistant, long lifespan) | High (Regular anti-corrosion needed) |
| Eco-Friendliness | Recyclable, low production pollution | High energy consumption, polluting |
| Typical Applications | Chemical piping, marine engineering, food industry | Construction, machinery |
Customized details of fiberglass surface veil tube
Customize The Diameter
| OD(mm) | OD(inch) | OD(mm) | OD(inch) | OD(mm) | OD(inch) |
|---|---|---|---|---|---|
| 19.0 | 0.748 | 25.4 | 1.000 | 38.1 | 1.500 |
| 31.8 | 1.252 | 50.8 | 2.000 | 63.5 | 2.500 |
| 76.2 | 3.000 | 101.6 | 4.000 | 127.0 | 5.000 |
| 152.4 | 6.000 | 203.2 | 8.000 | 254.0 | 10.000 |
| 304.8 | 12.000 | 355.6 | 14.000 | 406.4 | 16.000 |

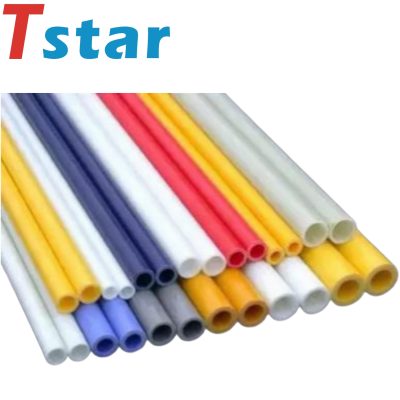

Customize the color
We can match any color based on standard color codes or provided samples.
![{"data":{"pictureId":"68b9f7b53c0e406b81b25466d629ae12","appversion":"12.7.0","stickerId":"","filterId":"","infoStickerId":"1752546609072.png","imageEffectId":"","playId":"","activityName":"","os":"android","product":"retouch","originAppId":"2515","exportType":"","editType":"","alias":"","enterFrom":"enter_launch","capability_key":["portrait"],"effect_type":"tool","effect_id":"portrait"},"source_type":"douyin_beauty_me"}](https://www.cfrp-tstar.com/wp-content/uploads/elementor/thumbs/1-r9qsnqt021560cgls8absb7zqqt2g08fbl743vh2u8.jpg "1")
Post-processing
We also provide various post-processing services for fiberglass rods, including cutting, drilling, chamfering, grinding, grooving, etc.

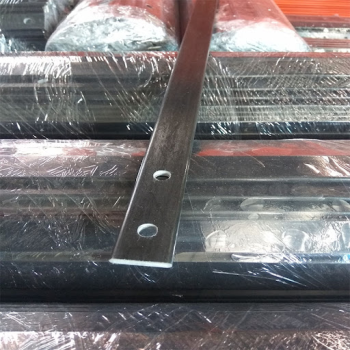

Packaging and shipping
To ensure the product reaches our customers intact, we will apply impact-resistant cushioning material around vulnerable areas of the base board, providing protection during transit.
FAQ
What temperature and pressure can they withstand?
Standard range: -50°C to 200°C; working pressure typically 0.6-2.5MPa (custom options available for higher specs).How to select the veil thickness?
Standard: 0.3-1.0mm. For highly corrosive environments, ≥0.5mm is recommended.What are the key installation precautions?
Avoid mechanical impact
Use corrosion-resistant seals (e.g., PTFE gaskets)
Uniformly tighten flange bolts
How to evaluate product quality?
Key criteria:Smooth surface without bubbles
Barcol hardness ≥35 (ASTM D2583)
Resin content ≥90% (surface layer)
