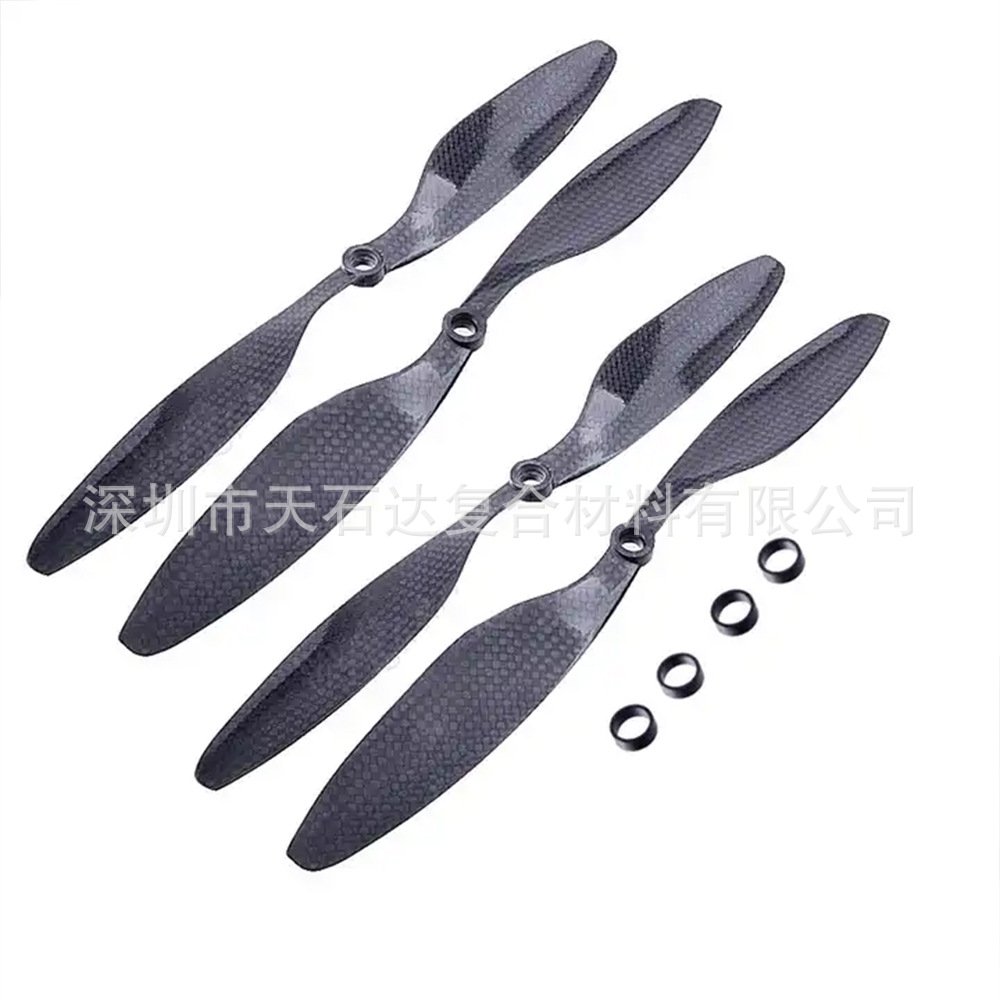

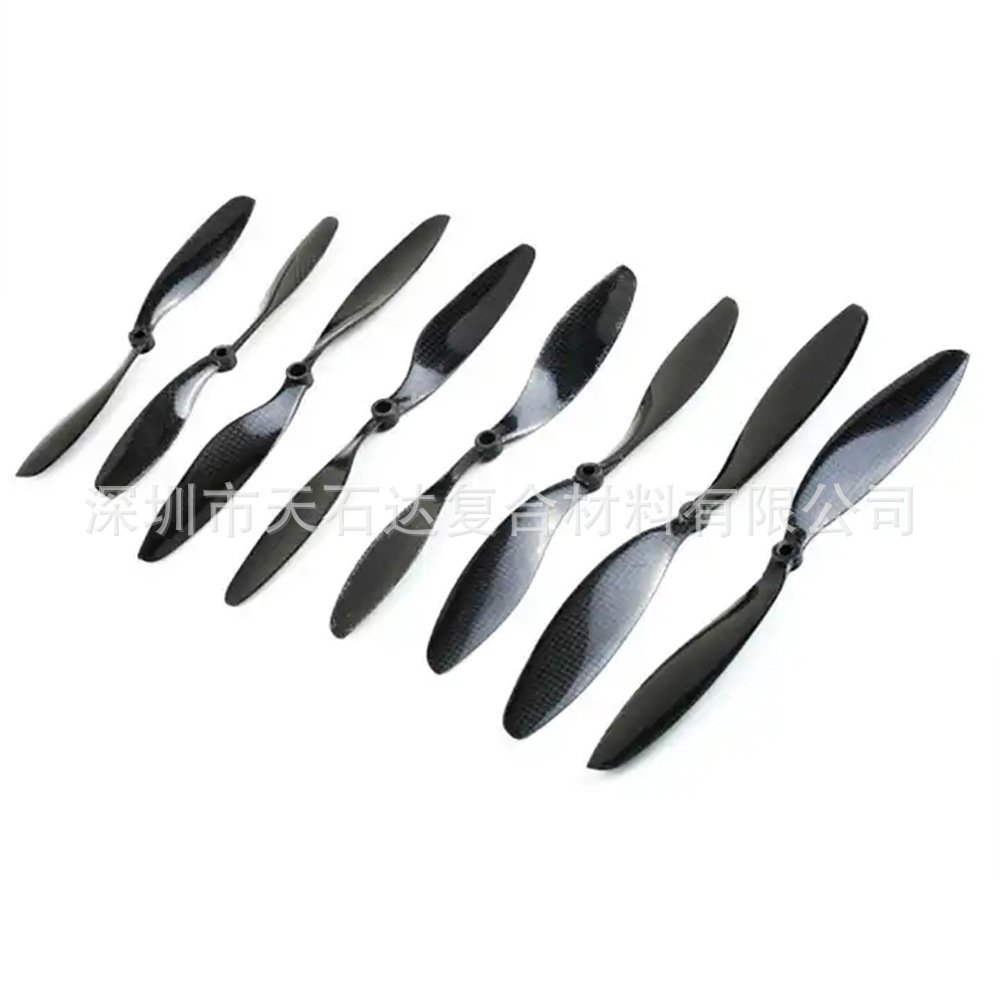

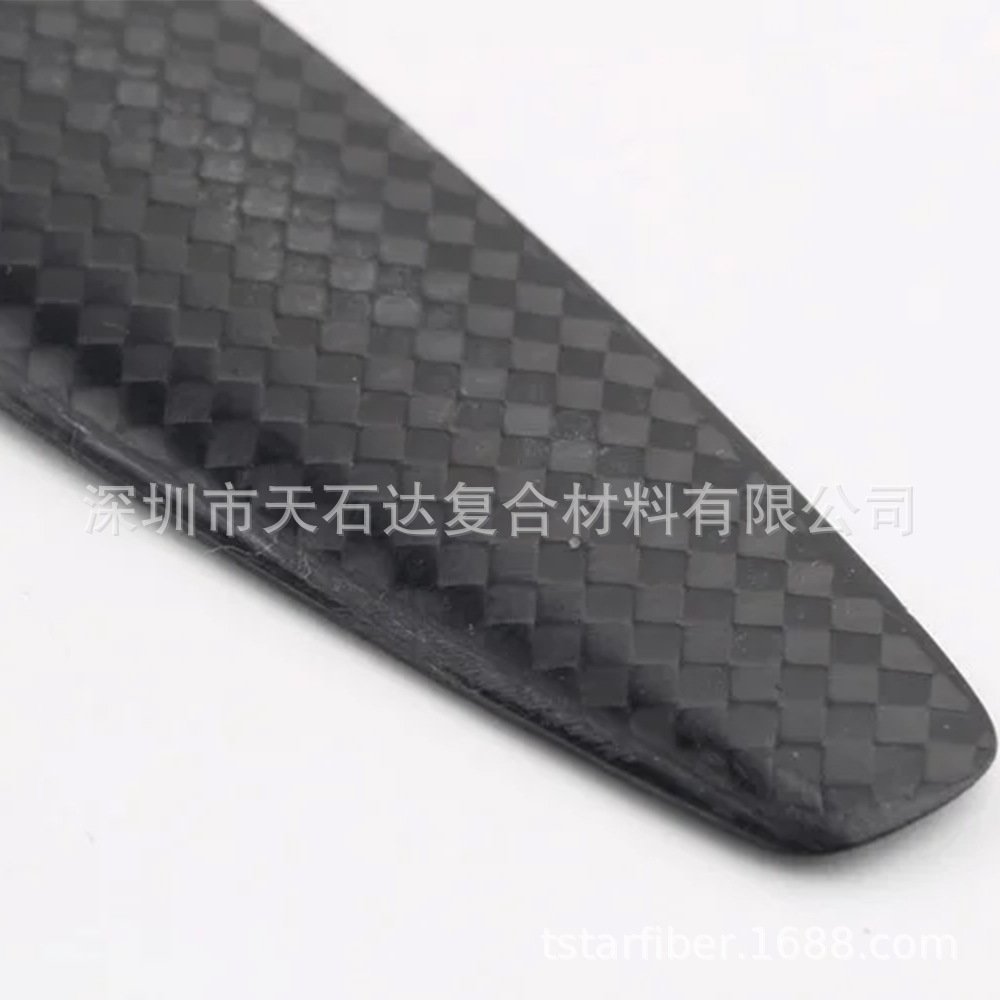

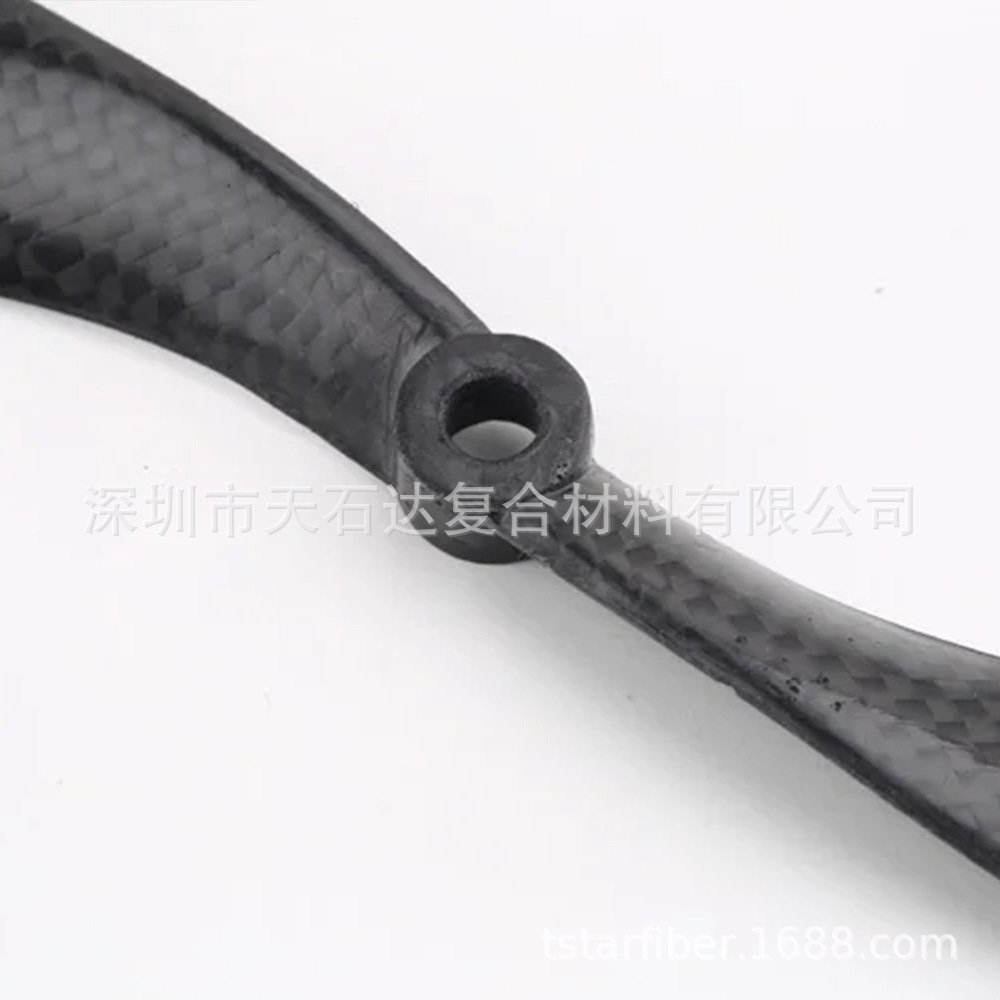

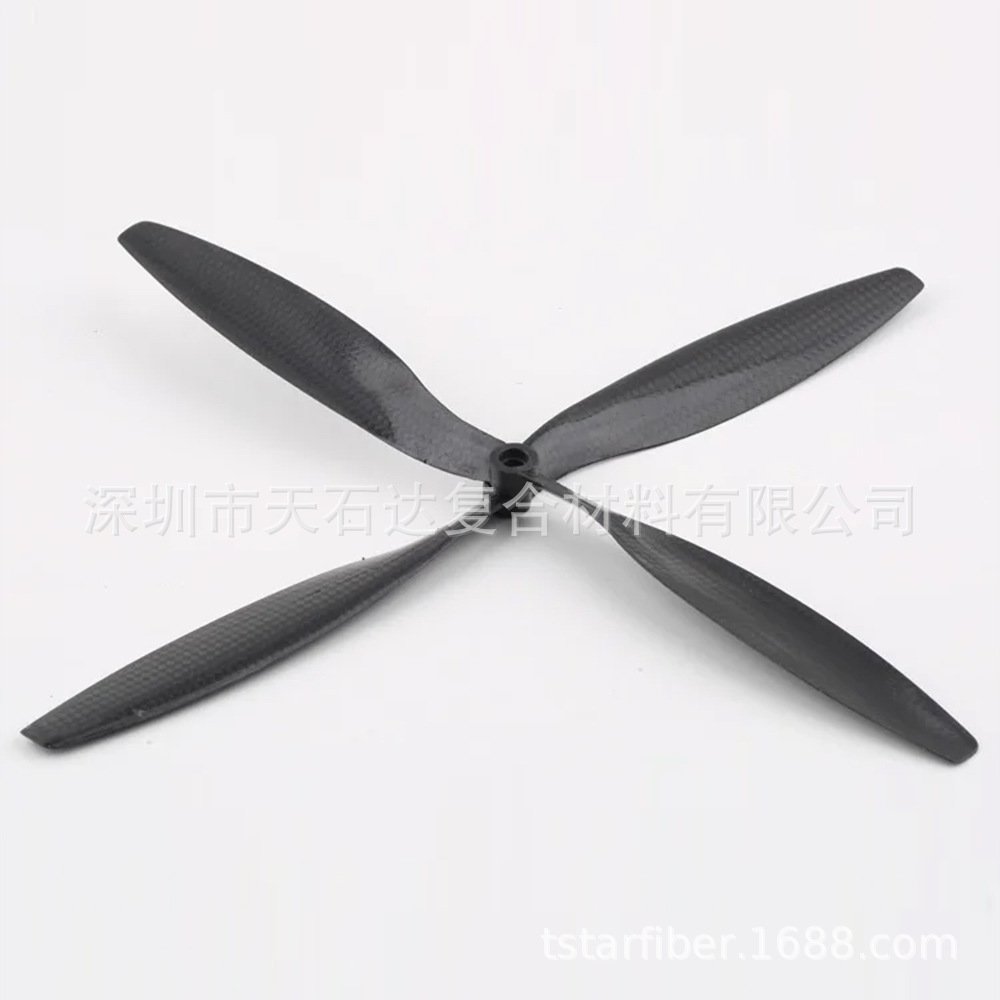

Carbon Fiber UAV Propeller Blades
Carbon Fiber UAV Propeller Blades are the core rotating components responsible for generating lift and thrust, directly influencing flight efficiency, payload capacity, endurance, and stability. Carbon fiber composites have become essential materials for manufacturing high-performance UAV propeller blades due to their exceptional physical and chemical properties.
Characteristics of Carbon Fiber Composites
Carbon fiber composites consist of high-strength, high-modulus carbon fiber tows embedded in a polymer resin matrix. Fibers provide primary load-bearing capacity, while the resin matrix transfers stress, protects fibers, and maintains structural integrity. Key properties include:
- High Specific Strength and Specific Modulus: Carbon fiber’s axial strength exceeds that of most metals, with density approximately 60% that of aluminum and 20% that of steel. This significantly reduces blade weight.
- Low Density: Lightweight properties directly decrease the rotational inertia of moving parts.
- Superior Fatigue Resistance: Outperforms many metals in resisting cyclic alternating stresses.
- Controllably Low Coefficient of Thermal Expansion: Minimizes deformation caused by temperature fluctuations.
- Favorable Damping Properties: Helps suppress vibration.
- Design Flexibility: Enables targeted optimization of specific properties (e.g., anisotropic stiffness) by adjusting fiber type, orientation, layup sequence, and ratio.
Carbon Fiber UAV Propeller Blades Data Sheet
| Item | Specification |
|---|---|
| Product Name | Carbon Fiber UAV Propeller Blades |
| Material Composition | 100% carbon fiber prepreg / carbon fiber + epoxy resin |
| Manufacturing Process | Hand lay-up, vacuum bagging, hot press molding, automated lamination available |
| Surface Finish | Glossy / Matte / 3K weave / UD / Paint finish optional |
| Color | Natural carbon black / Custom colors available |
| Dimensions (Length) | 450–600 mm (customizable) |
| Width | 150–220 mm (customizable) |
| Thickness | 1.5–3.5 mm (customizable) |
| Weight | 200–300 g (depending on specs) |
| Core Material | Hollow / Foam core / Solid options |
| Bend Angle | 5°–15° (customizable) |
| Socket/Ferrule Size | Compatible with various shaft diameters (28mm, 29mm, 30mm, etc.) |
| Applications | Kayak, Canoe, SUP (Stand-Up Paddleboard), Dragon Boat, etc. |
| Tensile Strength | >600 MPa (depending on layers and fiber grade) |
| Flexural Strength | >900 MPa |
| Features | Lightweight, High stiffness, Corrosion-resistant, UV-resistant |
| Customization Options | Size, Angle, Color, Logo, Decals, Surface texture |
| Packaging | Foam + Carton / Custom packaging |
Note: The values listed in the table are approximate and may vary depending on the specific product model and manufacturer. It is recommended to consult the product datasheet for accurate and detailed specifications.
Blade Design Requirements and Technical Principles
Blade design requires integrating aerodynamics, structural mechanics, material science, and manufacturing constraints to efficiently, stably, and reliably convert rotational mechanical energy into lift and thrust for flight.
Aerodynamic Design:
- Airfoil Selection: Symmetrical or asymmetrical airfoils chosen based on mission profiles (e.g., hover-focused, high-speed flight, or endurance). Airfoils determine lift coefficient, drag coefficient, and stall characteristics.
- Twist Distribution: Varies the blade section installation angle along the span to compensate for angle-of-attack differences due to rotational velocity gradients, improving overall efficiency.
- Tip Optimization: Specially designed tips (e.g., swept, tapered) reduce induced drag and minimize vortex noise during high-speed rotation.
- Chord Distribution: Affects blade area distribution and induced drag, typically integrated with airfoil and twist designs.
Structural Design:
- Strength Requirements: Withstand centrifugal tension and aerodynamic bending loads generated by high-speed rotation. The root region experiences the highest centrifugal stress.
- Stiffness Requirements: Sufficient flapping stiffness and torsional stiffness are critical for maintaining aerodynamic profiles, resisting elastic deformation, and preventing aeroelastic instabilities (e.g., flutter).
- Dynamic Balancing: Uniform mass distribution of rotating components ensures minimal vibration.
- Failure Mode Control: Designs must ensure predictable failure modes under damage or overload, typically avoiding sudden brittle fracture.
Advantages of Carbon Fiber in Blade Applications
Carbon fiber composites demonstrate irreplaceable advantages in meeting these design requirements:
Lightweight Benefits:
- Significantly reduce blade weight, lowering power consumption.
- Decrease rotational inertia of blades and rotor systems, enhancing dynamic response (startup, acceleration, deceleration, pitch change) and control precision.
- Reduce loads on bearings from blade rotation.
- Allow increased payload or battery capacity to extend endurance within total weight limits.
High Strength and Stiffness Advantages:
- Superior specific strength and stiffness minimize elastic deformation under high centrifugal and aerodynamic loads, ensuring aerodynamic profile stability during operation.
- High rigidity prevents efficiency loss from structural deformation, raises natural frequencies to avoid resonance.
- Directional reinforcement: High-strength fiber bundles placed along primary stress directions (e.g., span-wise) optimize material efficiency and enable structural weight reduction.
Fatigue Resistance and Durability Benefits:
- Significantly outperform metals (e.g., aluminum alloys) in resisting fatigue failure under long-term cyclic aerodynamic and centrifugal loads.
- Exhibit strong corrosion resistance against environmental factors like moisture and salt spray, reducing maintenance needs.
- Maintain stable performance throughout the designated lifecycle with proper design and manufacturing.
Aerodynamic and Acoustic Benefits:
- High stiffness minimizes unintended deformation, preserving precise aerodynamic profiles to enhance efficiency.
- Inherent damping properties combined with precise dynamic balancing significantly reduce vibration levels—critical for drones carrying sensitive equipment.
- Optimized blade profiles and low-vibration operation effectively lower aerodynamic noise. Precise geometry and surface quality reduce vortex generation and frictional drag.
Design Flexibility Advantages:
- Layup design enables precise control of span-wise and chord-wise stiffness distribution (flapping stiffness, lead-lag stiffness, torsional stiffness) to achieve optimal aeroelastic matching.
- Specific coupling effects (e.g., bend-twist coupling) can be engineered for specialized aerodynamic or structural requirements.
- Facilitates manufacturing of blades with complex aerodynamic shapes (e.g., tailored twist distributions, tip geometries).
Manufacturing Processes and Quality Control Of Carbon Fiber UAV Propeller Blades
Carbon fiber blade manufacturing relies on highly engineered processes, primarily using compression molding. Key steps include:
- Material Preparation: Selection of qualified unidirectional carbon fiber prepreg (pre-impregnated with resin) or carbon fiber fabrics stored in controlled environments.
- Mold Preparation: High-precision metal molds, highly polished and coated with release agents.
- Layup:
- Precise cutting of prepreg/fabric according to design specifications.
- Strict sequential layering in molds by orientation (0°, ±45°, 90°, etc.). Critical load-bearing zones (e.g., spar caps) use dense unidirectional (UD) fiber bundles. Shear webs often employ woven fabrics.
- Integration of lightweight cores (e.g., polymer foams) for enhanced stiffness.
- Encapsulation and Molding: Placement of layered material into metal molds.
- Curing:
- Mold closure under pressure.
- Application of precisely controlled temperature/pressure cycles. Heat triggers resin crosslinking (curing), forming a solid matrix; pressure ensures material compaction, eliminates voids, and guarantees dimensional accuracy/surface finish.
- Curing determines final material properties (e.g., glass transition temperature T<sub>g</sub>).
- Demolding and Post-Processing:
- Cooling and demolding after curing.
- Trimming of excess material.
- Surface sanding/polishing for optimal aerodynamic surfaces.
- High-precision machining of mounting features (e.g., hub connection holes).
- Critical Process—Dynamic Balancing:
- Measurement of mass distribution on dedicated balancers.
- Fine-tuning by material removal (grinding) near the tip or adding calibrated weights (e.g., micro-balancing strips) to achieve highly balanced blades.
- Ensures identical operational characteristics among blades.
- Balance precision directly impacts drone vibration levels and lifespan.
- Surface Treatment and Protection: Application of specialized coatings for abrasion resistance, UV protection, or marking.
- Quality Inspection:
- Geometric dimension and tolerance verification.
- Visual and instrumental surface inspection.
- Weight measurement.
- Re-testing of dynamic balance.
- Non-destructive testing (e.g., ultrasonic, X-ray) to detect internal flaws (delamination, porosity, fiber wrinkling).
- Sampling for destructive testing (e.g., static tensile, bending tests).
- Pairing and Identification: Balanced blades typically grouped into matched sets with permanent identification.
Performance Verification and Testing
Manufactured Carbon Fiber UAV Propeller Blades undergo rigorous testing to confirm safety and performance:
- Ground Spin Testing: Blades mounted on simulated powertrains in containment chambers; structural integrity verified at design maximum speed (typically multiples of operational RPM), monitoring for abnormal deformation, noise, or failure. Validates strength and dynamic stability.
- Thrust/Torque Test Stand: Propeller systems mounted in controlled environments (simulated atmospheric conditions); precise measurement of thrust, torque, and power consumption across RPM ranges. Calculation of power conversion efficiency (thrust-to-power ratio). Evaluates aerodynamic performance across flight regimes (hover, climb, cruise).
- Strain Measurement: Strain gauges installed at critical locations (root, transition zones); operational strain distribution compared with design analyses to identify high-stress areas.
- Vibration and Noise Testing: Measurement of vibration acceleration and noise spectra across RPMs for full drone/rotor systems. Verifies balance quality and assesses acoustic performance.
- Fatigue Life Testing: Long-duration cyclic operation under simulated real-world load spectra on spin rigs to assess fatigue life.
- Environmental Testing: Evaluation of performance under extreme temperatures, humidity, salt spray, etc.
- Destructive Testing: Sampling for ultimate load testing (e.g., overspeed centrifugal load) to determine safety factors and failure modes.
Conclusion
Carbon fiber composites are ideal materials for high-performance UAV blades due to their high specific strength, specific stiffness, exceptional fatigue resistance, low density, and design flexibility. Through meticulous layup design and mature molding/curing processes, combined with stringent dynamic balancing and quality control, Carbon Fiber UAV Propeller Blades achieve significant improvements in structural efficiency, aerodynamic efficiency, and operational reliability.
Their lightweight nature directly reduces energy consumption, extends endurance, or increases payload capacity. High stiffness and precise geometry ensure stable and efficient aerodynamic performance. Fatigue resistance and environmental tolerance guarantee long service life with low maintenance. Accurate dynamic balancing and favorable damping properties substantially reduce vibration and noise.
As UAV applications expand and performance demands increase, carbon fiber blade technology evolves toward greater efficiency, intelligence, and reliability. This includes further optimized aerodynamic design, advanced composites (e.g., high-toughness resins, continuous fiber reinforced thermoplastics/CFRTP), more sophisticated manufacturing/inspection techniques, and integrated health monitoring methods. Carbon fiber composite blades will remain a crucial component in advancing UAV capabilities.
FAQ
Q1:Why choose Carbon Fiber UAV Propeller Blades over nylon alternatives?
A1:Superior specific strength/stiffness enables lighter construction; enhanced fatigue resistance minimizes permanent deformation.
Q2:What advantages differentiate Carbon Fiber UAV Propeller Blades from metal blades?
A2:60-70% weight reduction versus aluminum; 3-5× longer fatigue life; intrinsic corrosion resistance.
Q3:Why do propeller blades require twist distribution?
A3:Compensates for rotational velocity differences across spanwise sections, maintaining optimal aerodynamic angle of attack for improved efficiency.
Q4:Why are specialized tip shapes (swept/tapered) used?
A4:Reduce vortex intensity during high-speed rotation, minimizing induced drag and noise.
Q5:Can Carbon Fiber UAV Propeller Blades withstand higher maximum RPM?
A5:Yes. High tensile strength (>1500 MPa typically) enables 20-30% higher tolerable RPM compared to nylon blades.
