FRP insulation wall connectors
What are FRP insulation wall connectors?
1. Rust-resistant, longer service life
Metal connectors are prone to corrosion in humid or salty environments, leading to wall instability. Our FRP insulation wall connectors are 100% rust-resistant and resistant to acids, alkalis, and salt spray, ensuring reliable performance even in coastal and industrial areas. Their service life far exceeds that of metal alternatives.
2. Lightweight Yet Strong, Easier Installation
70% lighter than steel but equally strong, FRP reduces handling effort. Workers avoid heavy metal parts, speeding up installation by 30% and cutting labor costs.】
3. Eliminates Thermal Bridging, Boosts Efficiency
Metal creates “thermal bridges,” wasting energy. FRP’s ultra-low thermal conductivity (<0.5 W/m·K) blocks heat transfer, maximizing insulation performance and reducing HVAC costs by up to 15%.
4. Eco-Friendly & Compliant
FRP insulated wall connectors are metal-free, 100% recyclable, EU RoHS compliant, and green certified (LEED, BREEAM). Choose FRP for a sustainable future.
| Performance Parameters | FRP Insulation Wall Connectors |
|---|---|
| Composition | High-quality fiberglass reinforced epoxy composite |
| Density | 1.8-2.0 g/cm³ |
| Tensile Strength | 300-450 MPa |
| Flexural Strength | 350-500 MPa |
| Modulus of Elasticity | 25-30 GPa |
| Impact Strength | 15-25 kJ/m² |
| Chemical Resistance | Resistant to acids, alkalis, salt spray, and organic solvents |
| Environmental Resistance | UV-resistant, temperature-stable (-40℃ to 120℃), moisture-proof |
| Thermal Conductivity | <0.5 W/(m·K) |
| Fire Rating | Class B1 (flame-retardant) |
| Machinability | Drillable, cuttable, bondable for easy installation |
| Applications | ETICS, sandwich panels, curtain walls, cold storage construction, etc. |
Industry trends of FRP insulation wall connectors
1. Green Building Boom Drives Demand
Driven by carbon neutrality goals, the construction industry is going green. FRP insulation wall connectors are steadily replacing metal components, with their adoption rate expected to reach 35% in green building projects by 2023. Market research predicts a compound annual growth rate of over 20% over the next five years.
2. Performance Upgrades Become Key
Customers now demand excellence, not just adequacy. Industry leaders are racing to develop:
Marine-grade formulations
30% stronger load-bearing designs
Specialty types for extreme temperatures
3. Prefab Construction Creates Opportunities
With prefabricated buildings expected to reach 30% market share by 2025, plug-and-play connectors are in hot demand. Lightweight FRP solutions are capturing market share in this billion-dollar sector.
4. Smart Manufacturing Cuts Costs
Top manufacturers are adopting:
✓ Automated production lines (3x output)
✓ AI quality control (<0.5% defect rate)
✓ Digital warehousing (40% faster delivery)
5. Standardization Accelerates
The upcoming 2024 national standard “Technical Specification for Composite Connectors” will normalize industry development. Early certification adopters will gain competitive edges.
6. Regional Variations Matter
East China: Premium projects dominate
South China: Focus on moisture resistance
Northern markets: Ultra-low temperature tolerance is critical
Application of FRP insulation wall connectors

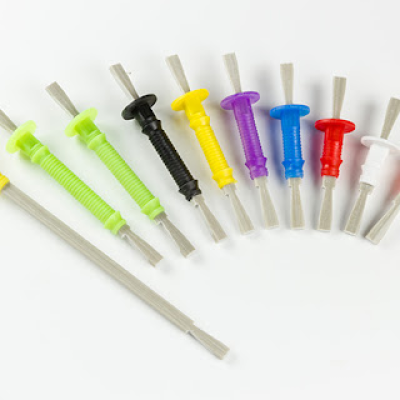

FRP insulation wall connectors, also known as FRP insulation anchors, are critical components for fixing external wall insulation systems. Made of corrosion-resistant fiberglass, they eliminate thermal bridging issues caused by metal fasteners, making them ideal for energy-efficient buildings.
1. Applications
External Insulation Systems: Secure EPS/XPS/PUR boards to substrates (e.g., concrete, masonry).
Harsh Environments: Coastal areas, chemical plants—where metal anchors would corrode.
Cold Storage & Freezers: FRP insulation wall connectors minimize heat transfer to ensure stable temperatures.
2. Key Benefits
Thermal Break Solution: Low thermal conductivity (<0.5 W/m·K) vs. metal (~50 W/m·K).
Corrosion Resistance: No rust, even in pH 4–11 environments.
High Strength-to-Weight Ratio: Tensile strength up to 600 MPa, yet lightweight.
Electrical Insulation: Safe for lightning-prone structures.
3. Installation Guide
Drilling Depth: Penetrate insulation layer + ≥25mm into substrate.
Spacing: 6–8 anchors/m² (increase for high-rise or high-wind zones).
Waterproofing: Seal anchor heads with silicone to prevent leaks.
4. Pro Tips
Avoid hammering—use rotary tools for precise installation.
Store away from open flames (FRP is fire-retardant but not fireproof).
Conclusion
FRP insulation wall connectors are the unsung heroes of building insulation systems. They may not steal the spotlight, but they play a critical role in making walls stable, energy-efficient, and durable. Whether it’s a factory, a mall, or your cozy home, these connectors help create buildings that are more comfortable, cost-effective, and built to last!
Advantages of FRP insulation wall connectors
1. Superior Thermal Insulation
FRP’s thermal conductivity is 1/100 of metal, eliminating thermal bridges for better energy efficiency.
2. Extreme Corrosion Resistance
No rust, even after 30+ years—perfect for coastal, chemical, or humid environments.
3. Lightweight & Easy to Install
75% lighter than steel, allowing one-handed operation and safer high-altitude work.
4. High Tensile Strength
≥600MPa strength—stronger than plastic anchors, ensuring long-term stability.
5. Electrically Insulating
Safe for lightning-prone areas (e.g., power stations, telecom towers).
6. Eco-Friendly & Recyclable
No heavy metals; can be recycled at end-of-life, greener than metal alternatives.
7. Compatible with Various Substrates
Works on concrete, brick, or retrofitted walls—universal solution for most projects.
8. UV-Resistant Formula
Withstands sunlight without becoming brittle or cracking over time.
9. Faster Installation
No anti-rust coating needed—saves 30% labor time vs. metal anchors.
10. Cost-Effective in Long Run
Slightly higher upfront cost, but zero maintenance = lower lifetime cost.
Key Takeaway: FRP anchors = Energy-saving + Durable + Hassle-free!
Customization Details
1. FRP vs. Metal (Stainless Steel/Galvanized Steel)
✅ FRP Wins When:
No thermal bridging (0.3-0.5 W/m·K vs. metal’s 50 W/m·K)
Zero rust (ideal for coasts/chemical plants)
Lightweight (1/4 the weight of metal)
Non-conductive (safe for lightning protection)
❌ Metal’s Weaknesses:
Causes condensation, reducing insulation efficiency
Rusts after galvanization wears off (10-15 yr lifespan)
Heavy for rooftop/high-rise installation
2. FRP vs. Plastic (Nylon/Polypropylene)
✅ FRP Wins When:
Strength matters (600MPa vs. plastic’s 50-100MPa)
High-temperature resistance (150°C vs. plastic’s 80°C limit)
UV stability (plastic cracks under sun exposure)
Fire safety (self-extinguishing vs. flammable plastic)
❌ Plastic’s Weaknesses:
Risky for skyscrapers/hurricane zones (may pull out)
Expands/contracts with temperature, loosening insulation
3. FRP vs. Cement Nails
✅ FRP Wins When:
Professional insulation systems (expansion head design)
Corrosion-free (cement nails rust even if galvanized)
Precision length (no cutting waste vs. cement nails)
❌ Cement Nails’ Weaknesses:
Pure metal = severe thermal bridging
Low efficiency (pre-drilling + hammering required)
4. Quick Selection Guide
| Material | Best For | Avoid In |
|---|---|---|
| FRP | High-rises, cold storage, chemical plants | Extreme heat (>200°C) |
| Metal | Short-term projects, dry climates | Corrosive/energy-efficient builds |
| Plastic | Temporary/low-rise buildings | High-wind/fire-critical zones |
| Cement Nails | Basic structures | Professional insulation |
Final Advice:
Energy efficiency + longevity → FRP
Low budget + temporary use → Plastic/Metal
Non-insulation structures → Cement nails
Customized details of FRP insulation wall connectors
Customize The Diameter
| OD (mm) | OD (inch) | Insulation Thickness (mm) | Recommended Applications |
|---|---|---|---|
| 4 | 0.157 | 30-50 | Interior walls, light construction |
| 6 | 0.236 | 50-80 | Residential exteriors, low-rise buildings |
| 8 | 0.315 | 80-100 | High-rises, standard insulation |
| 10 | 0.393 | 100-120 | Cold climates, high R-value needs |
| 12 | 0.472 | 120-150 | Cold storage, specialized insulation |
| 14 | 0.551 | 150-180 | Industrial plants, extra-thick insulation |
| 16 | 0.63 | 180-200 | Chemical facilities, corrosive environments |
Customize the color
We can match any color based on standard color codes or provided samples.
Post-processing
We also provide various post-processing services for FRP insulation wall connectors, including cutting, trimming, chamfering, coating, notching, etc.
Packaging and shipping
To ensure the product reaches our customers intact, we will apply impact-resistant cushioning material around vulnerable areas of the base board, providing protection during transit.
FAQ
1. Will FRP anchors rust?
A: Never! FRP is inherently corrosion-proof, ideal for coasts/chemical plants.
2. How long do they last?
A: 30+ years in normal conditions (-40°C~150°C), 2-3x longer than galvanized nails.
3. Strong enough for high-rises?
A: Tensile strength ≥600MPa. Increase density (e.g., 8-10 anchors/m²) for typhoon zones.
4. Need special tools to install?
A: Just drill and tap in (like regular anchors), but avoid heavy hammering (FRP is more brittle).
5. Will they crack in freezing temps?
A: Quality FRP survives -40°C—check freeze-thaw test certificates when buying.
6. Why cost more than plastic anchors?
A: Pay for performance! Plastic fails in 3-5 years; FRP saves long-term replacement costs.
